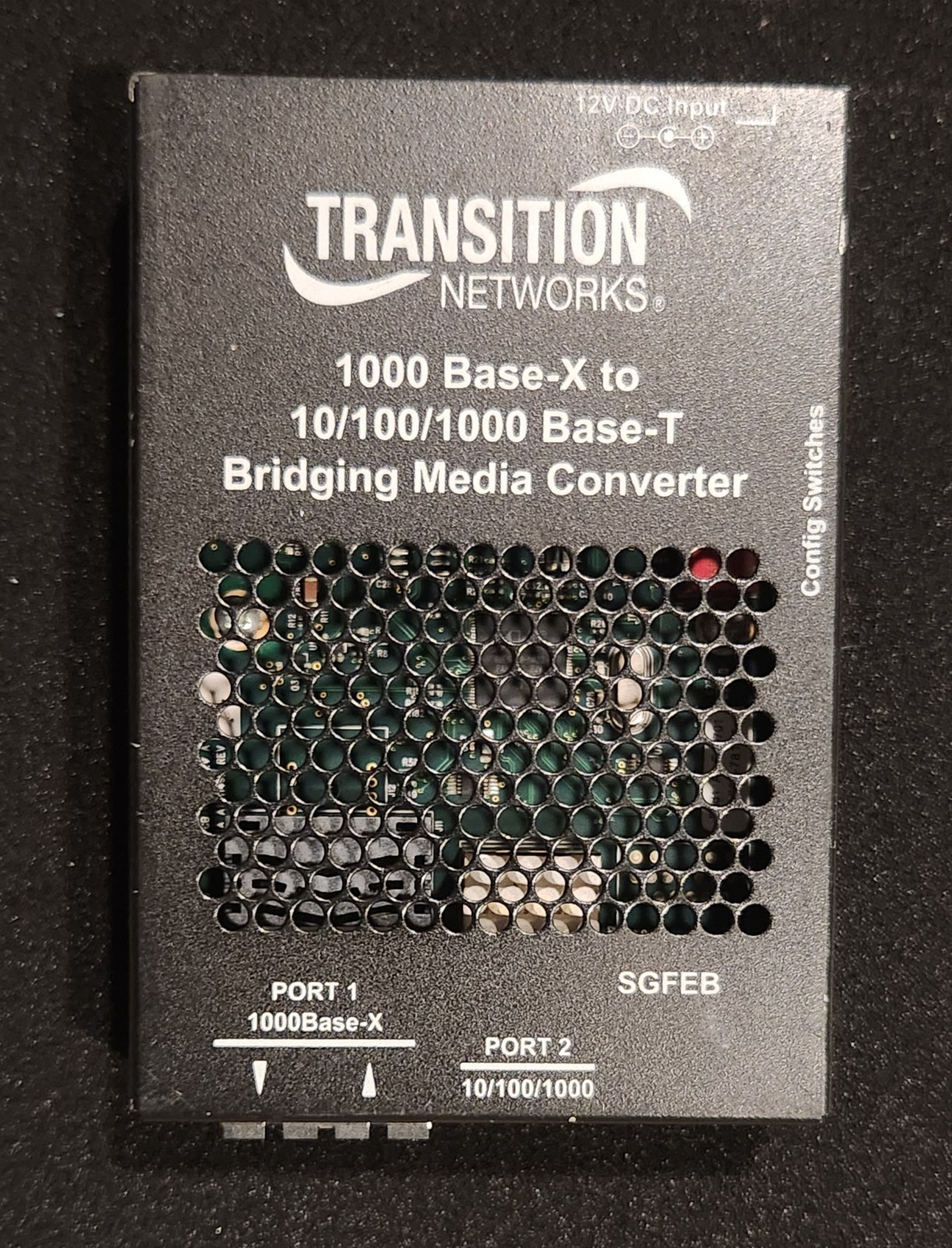

This Transition Networks SGFEB1013-130 stand-alone bridging media converter has been fully inspected, powered on, and bench-tested to ensure proper functionality. It provides a reliable, cost-effective method to integrate 1000Base-SX multimode fiber optic cabling into standard 10/100/1000 copper networking environments. Because it operates at Layer 2, it handles rate conversion seamlessly, allowing legacy 10/100 copper devices to connect to a gigabit fiber backbone.

​The unit is in good cosmetic condition with minor surface wear from normal deployment. This listing includes a compatible generic 12V DC power supply adapter, completely ready for installation.

​Package Includes

• ​(1) Transition Networks SGFEB1013-130 Media Converter

• ​(1) Generic 12V DC Switching Power Supply

​Key Features

• ​Rate Conversion: Bridges 10/100/1000Mbps copper speeds directly to 1000Mbps gigabit fiber.

• ​Fiber Flexibility: Employs an 850nm multimode SC dual-fiber connection (TX/RX).

• ​Advanced Diagnostics: Features Link Pass-Through, Far End Fault (FEF), and Remote Fault Detection (RFD) to quickly isolate network link failures.

• ​Jumbo Frames: Supports up to 10,260-byte jumbo frames for high-throughput configurations.

• ​Auto MDI/MDI-X: AutoCross function automatically fixes straight-through or crossover copper cabling issues.

• ​DIP Switch Configuration: Built-in hardware switches allow quick manual overrides for link configurations.

​Technical Specifications

• ​Manufacturer: Transition Networks (Lantronix)

• ​Model Number: SGFEB1013-130

• ​Port 1 (Fiber): 1000Base-SX Multimode SC Female

• ​Port 2 (Copper): 10/100/1000Base-T RJ-45 Female

• ​Wavelength: 850 nm

• ​Maximum Distance Supported: Up to 550 meters (1,804 ft) using 50/125 µm fiber; up to 220 meters (722 ft) using 62.5/125 µm fiber

• ​MAC Address Table: 8K entries

• ​Power Requirements: 7.5V DC to 24V DC (Unit labeled for 12V DC input)

• ​Power Consumption: 2.2 Watts (Operational)

• ​Status Indicators: LED indicators for PWR (Power), LACT (Fiber Link/Activity), DUP (Duplex), and RJ-45 Speed/Link
