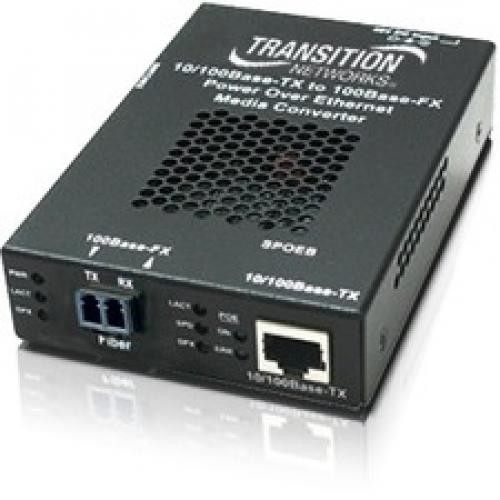

Transition Networks SPOEB1039-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 10/100Base-T, 100Base-FX - 2 km - Power Supply - Wall Mountable, Rail-mountable
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.) The PoE converter is fully compatible with devices that comply with the IEEE 802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
ManufacturerLantronix, Inc Manufacturer Part NumberSPOEB1039-105-NA Brand NameTransition Networks Product ModelSPOEB1039-105 Product NameSPOEB1039-105 Transceiver/Media Converter Product TypeTransceiver/Media Converter Interfaces/Ports Total Number of Ports2 Network (RJ-45)Yes DVINo USBNo Management PortNo Number of LC Ports1 LC Port TypeDuplex Number of Network (RJ-45) Ports1 Media & Performance Media Type SupportedOptical Fiber,Twisted Pair Fiber Mode SupportedMulti-mode Fiber Optic Cable Wavelength1300 nm Maximum Distance Supported2 km Network & Communication Ethernet TechnologyFast Ethernet Network Technology10/100Base-T,100Base-FX Power Description Power SourcePower Supply Physical Characteristics Form FactorWall Mountable,Rail-mountable Height1" Width3.3" Depth4.8" Weight (Approximate)2 lb Miscellaneous Package Contents SPOEB1039-105 Transceiver/Media Converter Power Supply Environmentally FriendlyYes Country of OriginTaiwan Warranty Limited WarrantyLifetime WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
