Trendnet TFC-1000MSC (Version D1.0R) 1000Base-T to 1000Base-SX
Price: US $65.00

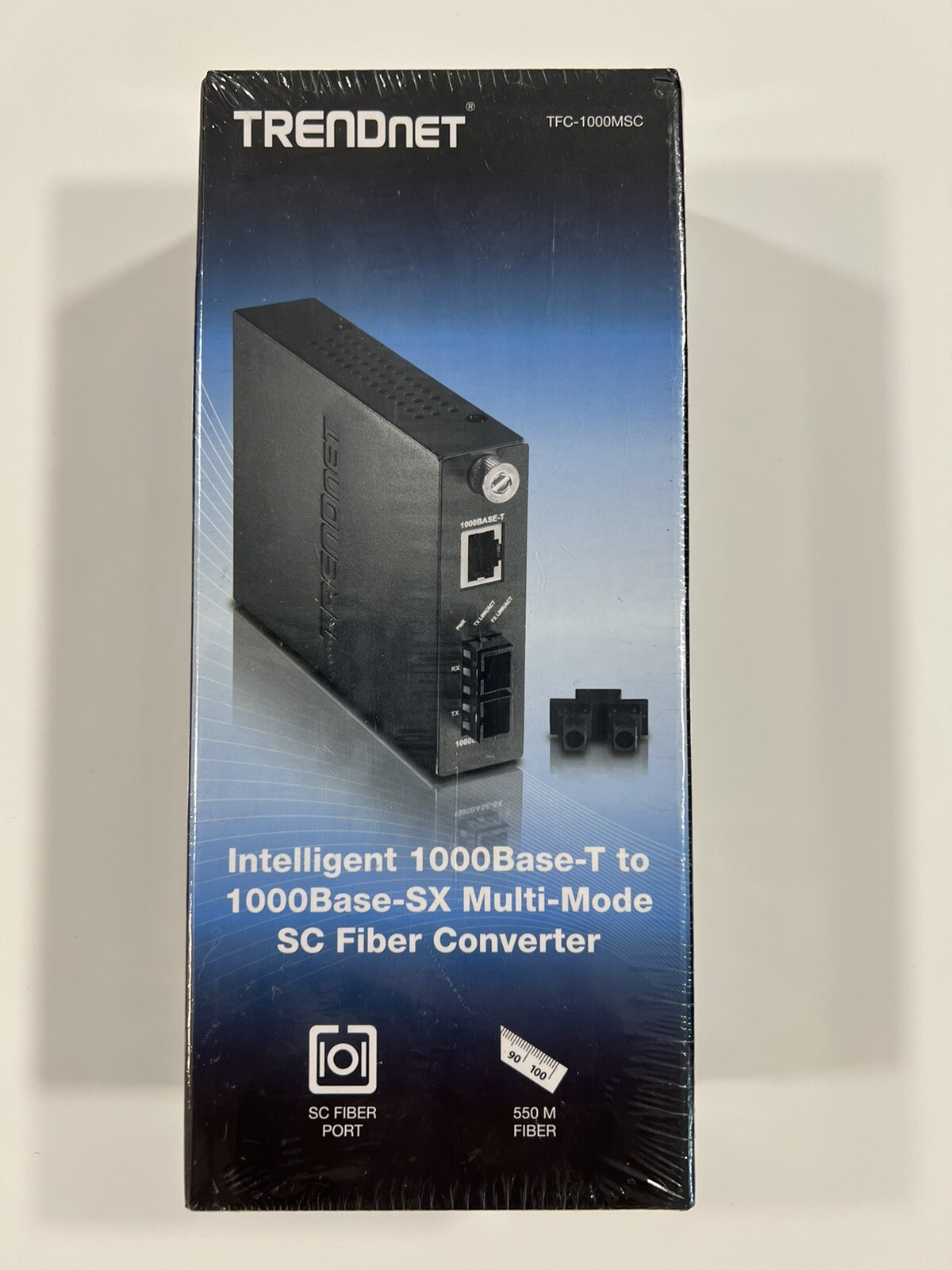

TFC-1000MSC (Version D1.0R)New in a box , never used , never installed Intelligent 1000Base-T to 1000Base-SXMulti-Mode SC Fiber Converter
Functions as a standalone converter
Compatible with TRENDnet's TFC-1600 fiber chassis system
SC-type 1000Base-SX Multi-Mode fiber port
Fiber networking over distances of up to 550 meters (1800 ft.)
2 Gbps switching capacity
LEDs convey power and copper/fiber link and activity
TRENDnet’s TFC-1000MSC, Intelligent Fiber Converter, is compatible with the TFC-1600 chassis system or functions as a standalone unit. Thisconverter is a Multi-Mode SC-Type fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550 m (1,800 ft.). Portsinclude a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.Specifications:Standards
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-SX)
IEEE 802.3x
Device Interface
1 x Gigabit port
1 x SC type fiber port
LED indicators
Network Media
1000Base-TX: Cat.5e, 6 EIA/TIA-568 100-ohm STP, up to 100 m
1000Based-SX: 50/125μm multi-mode SC-Type fiber optic, up to 550 m
Protocol
CSMA/CD
Dip Switch
LLCF (enable & disable)
Fiber (forced/auto-negation)
Data Transfer Rate
Gigabit Ethernet: 2000 Mbps (full duplex)
Jumbo Frame
9K bytes
Wavelength
850 nm
Optical Output Power
Min: -9.5 dBm
Max: -4 dBm
Optical Input Power
Min. (Sensitivity): -18 dBm
Max: 0 dBm
Power Budget
8.5 dBm
550 m. (1800 ft.)
Power
Input: 100–240 V 50/60 Hz 0.2 A
Output: 5 V DC 1 A
Consumption: 3.44 Watts (max.)
Special Features
Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Lose Return)
Monitor and configure Ethernet or Fiber's duplex mode, LLCF, and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
