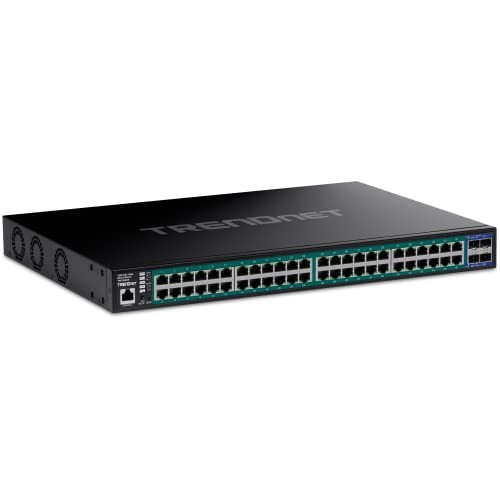

TRENDnet 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Ports, TPE-3524S, 48 x Gigabit PoE+ Ports, 4 x 10G SFP+ Ports, 410W PoE Power Budget, Lifetime Protection, Black TRENDnet 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Ports, TPE-3524S, 48 x Gigabit PoE+ Ports, 4 x 10G SFP+ Ports, 410W PoE Power Budget, Lifetime Protection, Black
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+Slots Quick Installation Guide Power Cord (1.5m / 5 ft.) Console Cable (1m / 3.28ft.) Rackmount Brackets
TAA Compliant: Yes
Application/Usage:
Network
IP Camera
VoIP Phone
Wireless Access Point
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
- 48 x Gigabit PoE+ ports
- 4 x 10G SFP+ ports
- 410W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
- IPv4/IPv6 Static Routing support
- Bandwidth control per port
- Private, Multicast, and Voice VLAN support
- Smart fans
- 176Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to TPE-3524S increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
10G SFP+ Ports
Offers four dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
PoE Power
A 410W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
Integration Flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Package Contents:
- 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+Slots
- Quick Installation Guide
- Power Cord (1.5m / 5 ft.)
- Console Cable (1m / 3.28ft.)
- Rackmount Brackets
SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyPoE Budget410 WFrequency
Input Voltage
PoE (RJ-45) PortYesPower Consumption57.40 WPhysical CharacteristicsForm FactorRack-mountableWeight (Approximate)10.45 lbHeight1.7"Compatible Rack WarrantyLifetimeInterfaces/PortsNetwork (RJ-45)YesPort/Expansion Slot Details
- 48 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports48ModularYesI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4General InformationBrand NameTRENDnetMarketing InformationTRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to TPE-3524S increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. DEVICE INTERFACE: 48 x Gigabit PoE+ Ports; 4 x 10G SFP+ Ports; LED Indicators; Reset Button; Rack Mountable LIFETIME PROTECTION -We stand by the quality of our products. The TPE-3524S 52-Port Gigabit Web Smart PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) SWITCHING CAPACITY: The Web Smart Gigabit PoE+ switch provides 48 gigabit (RJ-45) poe+ ports with 176Gbps switching capacity POE POWER: A 410W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port. WEB SMART MANAGEMENT: The 52 Port PoE+ Switch provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. IPv4/IPv6 STATIC ROUTING: Free up router resources by offloading routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. INTEGRATION FLEXIBILITY: The Gigabit PoE+ network switch managed features include access control lists, VLAN, IGMP/ MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. More from the Manufacturer Product TypeEthernet SwitchProduct Name52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ SlotsManufacturerTRENDnetManufacturer Part NumberTPE-3524SProduct ModelTPE-3524SProduct LineWeb SmartMedia & PerformanceEthernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
Media Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
