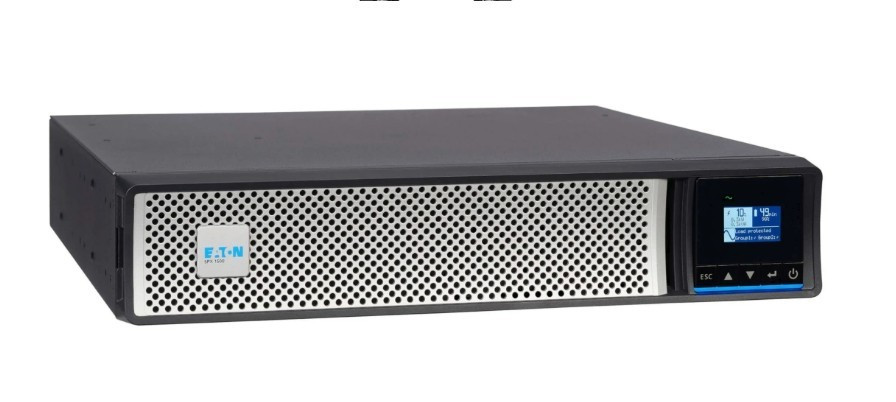

The 5PX G2 rack-mount UPS offers reliable battery backup and AC power protection for IT equipment against blackouts, brownouts, surges, and line noise. Ideal for small business, education, retail, and healthcare, it ensures optimal power delivery with a unity power factor. Features include hot-swappable battery modules, ABM technology for longer battery life, and support for up to four external battery modules for extended runtime.

Tripp Lite 5PX1500RTG2 Includes

• 1440VA 1440W 120V 5PX G2 Line-Interactive UPS with 8 Outlets
• USB cable
• RS-232 cable
• Rack-mounting hardware
• Tower support stands
• Safety guide
• Quick Start Guide

Tripp Lite 5PX1500RTG2 Features

• Protects equipment against blackouts, brownouts, transient surges and line noise
• Keeps equipment running during outages to allow time for file saves and safe shutdown
• Unity power factor ensures maximum power possible at each power rating
• ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
• Optional external battery modules allow extended runtime to keep equipment runnin

Tripp Lite 5PX1500RTG2 Specifications

• OVERVIEW:
  • UPC Code: 743172105776
  • UPS Type: Line-Interactive
• INPUT:
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P
  • UPS Input Cord Length (ft.): 10
• OUTPUT:
  • Output Capacity (VA): 1440
  • Output Capacity (kVA): 1.44
  • Output Capacity (Watts): 1440
  • Output Capacity (kW): 1.44
  • Frequency Compatibility: 50 / 60 Hz
  • Output AC Waveform (Battery Mode): Pure Sine wave
  • Nominal Output Voltage(s) Supported: 100V; 110V; 120V; 125V
  • Output Receptacles: (8) 5-15R
  • Individually Controllable Load Banks : Yes
• BATTERY:
  • Battery Type: Valve Regulated Lead Acid (VRLA)
  • Runtime Full Load (min.) : 5 min. (1440W)
  • Runtime Half Load (min.) : 15 min. (720W)
  • Expandable Runtime: Yes
• USER INTERFACE, ALERTS & CONTROLS:
  • Front Panel LCD Display: LCD graphical display
  • LED Indicators: 3 status-indicating LEDs (normal, battery mode, alarm); LED light bar (blue = nominal, blinking blue = warning, red = alarm)
• PHYSICAL:
  • Primary Form Factor: Rackmount; Tower
  • Rack Height : 2U
  • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount; Tower
  • Minimum Required Rack Depth (inches): 21
  • Unit Dimensions (hwd / in.): 3.400 x 17.200 x 17.600
  • Unit Weight (lbs.): 50.700
• ENVIRONMENTAL:
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Relative Humidity: 20 to 90%, non-condensing
  • AC Mode Efficiency Rating (100% Load): 0.98
• COMMUNICATIONS:
  • Network Management Cards: NETWORK-M2
  • Network Management Card Description: Network Card Optional
  • Communications Interface: DB9 Serial; USB (HID enabled); Slot for SNMP/Web interface
• FEATURES & SPECIFICATIONS:
  • High Availability UPS Features : Automatic Voltage Regulation (AVR); Surge/noise protection
• APPLICATIONS:
  • UPS Applications: High-End Desktop/Small Network
• STANDARDS & COMPLIANCE:
  • Product Certifications: cUL Listed; UL Listed; NOM (Mexico); IEC/EN 62040
  • Product Compliance: CE (Europe); REACH; RoHS; ENERGY STAR Qualified
