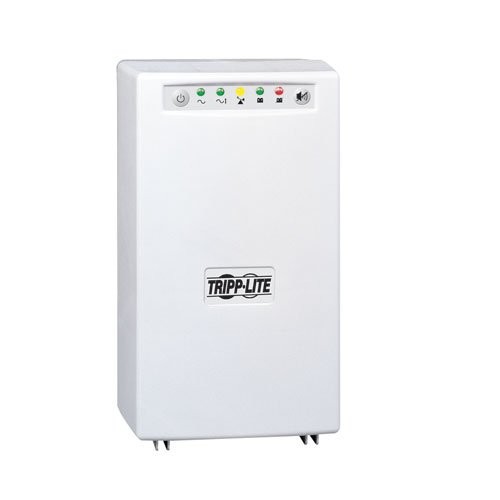

Tripp Lite UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9 (SMART700HG) Tripp Lite UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9 (SMART700HG)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SmartPro 700HG UPS SMART 700HG Medical Grade UPS System One USB and One DB9 monitoring cable Warranty information Instruction manual
Certifications & Standards: UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Tripp Lite's SMART700HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. UL2601-1 listed as medical electrical equipment with less than 300 microamps leakage current for the UPS and all connected equipment. Built-in isolation transformer with faraday shield removes common mode noise while maintaining full AC surge suppression in all modes. Resistant to electrostatic discharge. Includes high quality hospital-grade plug and outlets. 700VA power handling capacity supports computers, internetworking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143 back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes 4 outlets, diagnostic LEDs and built-in USB & RS-232 communications ports that work with downloadable PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.Package Contents:
- SmartPro 700HG UPS
- SMART 700HG Medical Grade UPS System
- One USB and One DB9 monitoring cable
- Warranty information
- Instruction manual
SpecificationPower DescriptionLoad Capacity (Watt)450 WInput Voltage120 V ACOutput Voltage120 V ACLoad Capacity (VA)700 VAPhysical CharacteristicsForm FactorTowerWeight (Approximate)44 Warranty2 YearControls/IndicatorsStatus Indicators5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warningInterfaces/PortsUSBYesBattery InformationBackup/Run Time (Full Load)18 MinuteBattery Life6 YearBattery ChemistryLead AcidHot SwappableYesBackup/Run Time (Half Load)42 MinuteTypical Battery Recharge Time4 HourGeneral InformationBrand NameTripp Lite seriesMarketing Information Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery. More from the Manufacturer Product TypeLine-interactive UPSProduct NameSmartPro 700HG UPSManufacturerEaton CorporationManufacturer Part NumberSMART700HGProduct LineSmartProTitleProduct TitleTripp Lite by Eaton UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9 (SMART700HG)Technical InformationReceptacle TypeNEMA 5-15RReceptacle Detail4 x NEMA 5-15RPlug/Connector TypeNEMA 5-15PCord Length6 ftTransfer Time4 msManagementNetwork ManagementSNMP ManageableAlarm
- On Battery
- Overload
- Low Battery
Environmental ConditionsMaximum Operating Temperature104°F (40°C) Shipping
