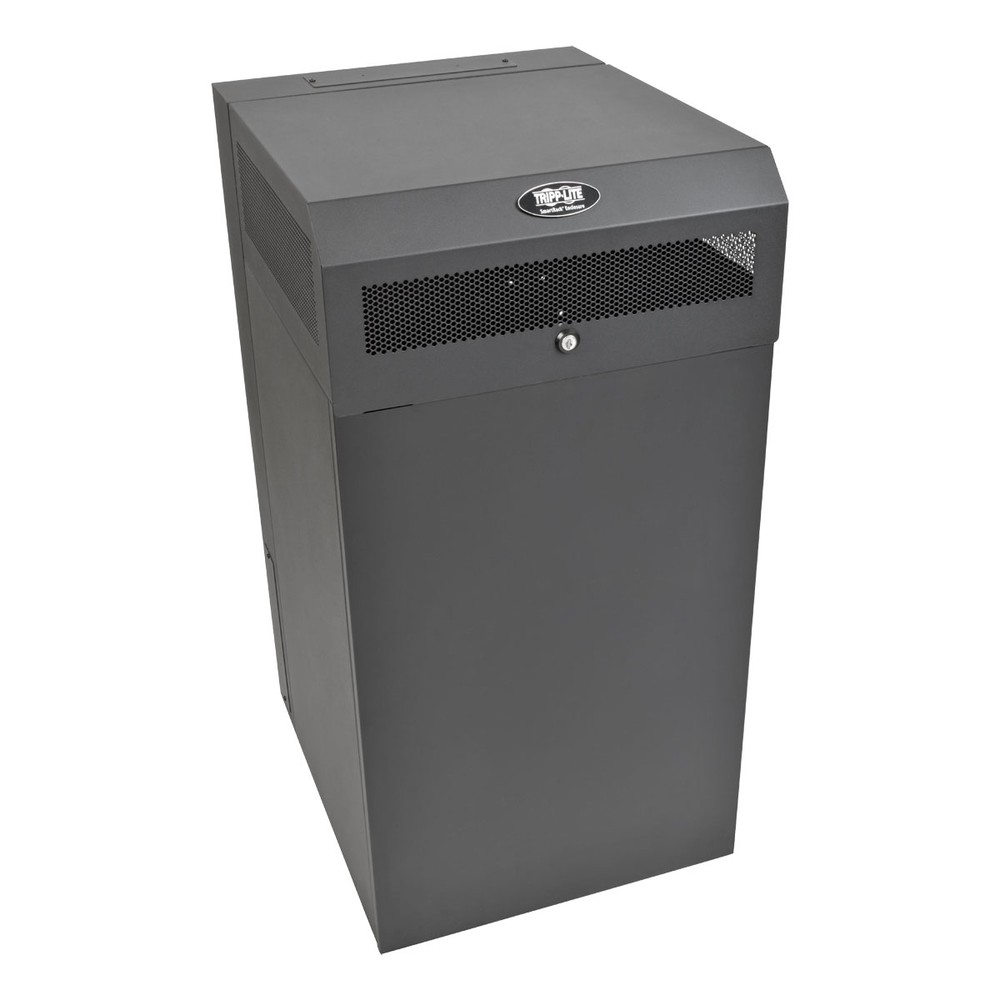

Tripp Lite SRWF16U38 16U Wallmount Low-Profile Vertical Rack Enclosure Server

The Tripp Lite SRWF16U38 is a SmartRack® 16U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet designed to securely house EIA-standard 19-inch rack equipment in various settings with limited floor space. It is suitable for network wiring closets, retail locations, classrooms, back offices, two-post racks, and other areas where you need your equipment to be organized, secure, and out of the way.

Constructed from heavy-duty steel with a durable black powder-coated finish, this rack cabinet has a maximum load capacity of 181 kgs (400 pounds). It extends only 24 inches from the wall while accommodating equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs, and switches. With 12U of rack space in the primary mounting area and an additional 4U of space at the top for patch panels, it provides ample storage options.

The top cover and front panel of the SRWF16U38 are removable, allowing expedient access to equipment. The cover can be securely locked using the included keys to prevent damage, tampering, or theft. The vented cabinet design ensures proper airflow to keep the equipment cool. Convenient top, bottom, and side ports enable easy cable routing.

The modular design of the SRWF16U38 allows for easy disassembly and wall-mounting using user-supplied hardware. The mounting holes are spaced 16 inches apart to accommodate standard wall studs. Threaded mounting holes support 12-24 mounting in two-post racks, simplifying equipment installation. Rack spaces are marked for easy reference.

Key Features:

• Recommended for areas with limited floor space where you need equipment to be secure, organized, and out of the way
• Houses EIA-standard 19 in. rack equipment in 12U of space
• Includes 4U of mounting space at the top of the enclosure for patch panels
• Extends only 24 in. from the wall while housing equipment up to 35 in. deep
• Maximum load capacity of 181 kgs. (400 lb.)
• Top cover locks securely to help prevent damage, tampering, or theft
• Vented cabinet keeps equipment cool
• Convenient ports with removable covers allow cable routing through top, bottom, and sides
• Modular design for easy disassembly and assembly
• Wall-mounting holes spaced 16 in. apart for standard wall stud placement
• Threaded mounting holes support 12-24 mounting in 2-post racks
• Rack spaces marked for easy reference
• Meets physical equipment and media security requirements for PCI DSS (Payment Card Industry Data Security Standard) Freestanding rack
• Product color: Black
• Maximum weight capacity: 181437
• Rack capacity: 16U
• Mounting depth (max): 889
• Package height: 1089.9
• Package width: 570
• Package depth: 660.4
• Height: 965
• Width: 500
• Depth: 590
• Package weight: 45810
• Weight: 36967
• Manual: Y
• Key lock: Y
