Manufacturer: Tripp Lite

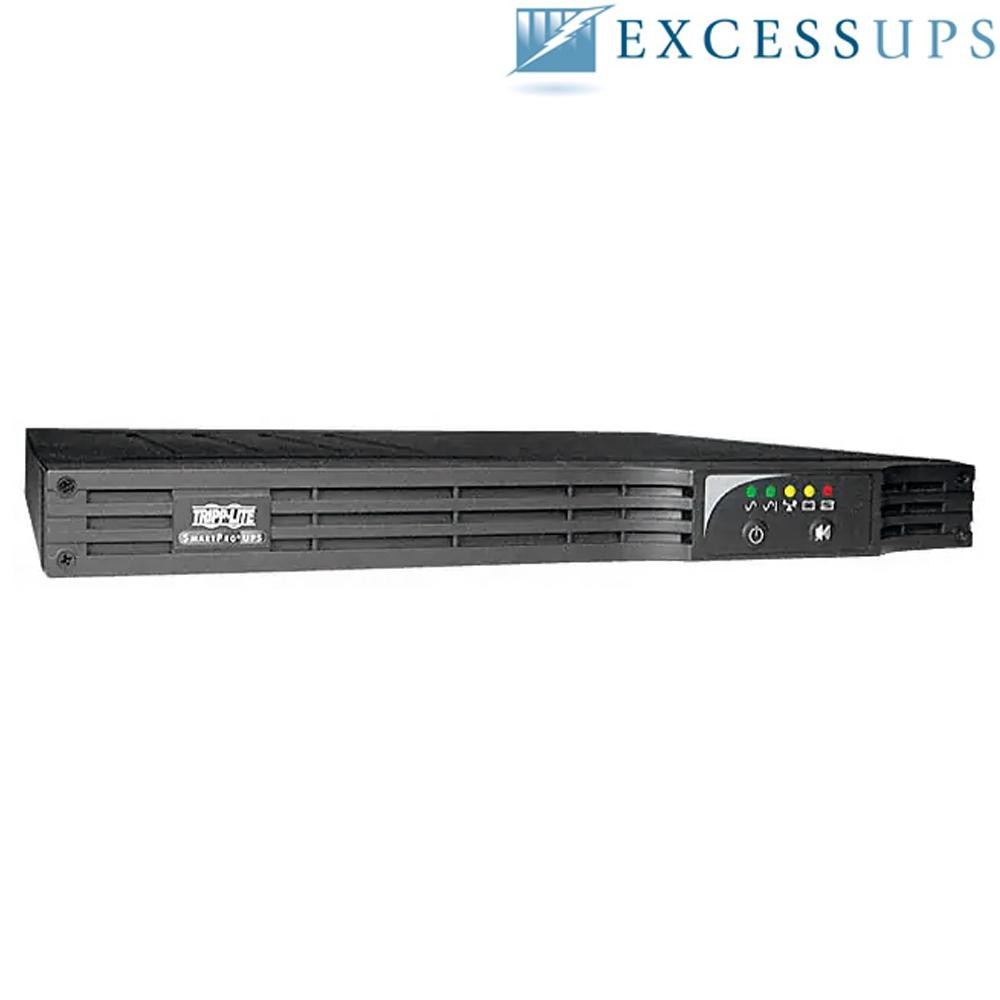

Model: Tripp Lite SmartPro UPS 1000VA 800W, RM, 1U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMART1000RM1U
Maximum output: 800W / 1000VA
Typical backup time at half load:14 minutes (400 Watts)
Typical backup time at full load: 4 minutes (800 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro 1000VA 800W RM 1U 120V SMART1000RM1U Manual
SMART1000RM1U - Tripp Lite SmartPro 1000VA Specifications:
Input:
Rated input current (Maximum Load)
9A
Nominal Input Voltage(s) Supported
120V AC
UPS Input Connection Type
NEMA 5-15P
Input Circuit Breakers
15A
Recommended Electrical Service
15A 120V
Input Phase
Single-Phase
Input Cord Length (ft.)
10
Input Cord Length (m)
3.05
Output:
Output Volt Amp Capacity (VA)
1000
Output Capacity (kVA)
1
Output Watt Capacity (Watts)
800
Power Factor
0.8
Nominal Voltage Details
120v nominal output in battery mode
Frequency Compatibility
60 Hz
Output Voltage Regulation (Line Mode)
-21%, +8%
Output Voltage Regulation (Battery Mode)
+/- 5%
Load Management Receptacles
Two switchable single-outlet 5-15R load banks
Output AC Waveform (AC Mode)
Sine wave
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Receptacles
(6) NEMA 5-15R
Individually Controllable Load Banks
Yes
Battery:
Battery Type
Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.)
4 min. (800w)
Half Load Runtime (min.)
14 min. (400w)
DC System Voltage (VDC)
24
Battery Recharge Rate (Included Batteries)
4.5 hours from 10% to 90% (typical, full load discharge)
Battery Access
Front panel battery access door
Internal UPS Replacement Battery Cartridge
RBC69-1U
Battery Replacement Description
Hot-swappable, user replaceable batteries
Expandable Runtime
No
Voltage Regulation:
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
User Interface, Alerts & Controls:
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate lowbattery status
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Surge / Noise Suppression:
UPS AC Suppression Joule Rating
450 J
AC Suppression Response Time
Instantaneous
EMI / RFI AC Noise Suppression
Yes
Physical:
Cooling Method
Fan
Included Mounting Accessory Description
Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
Vertical Mount Enclosures ( SRWF5U36 , SRWF5U , SRWF10UMOD)
Minimum Required Rack Depth (cm)
50.16
Minimum Required Rack Depth (inches)
19.75
Optional Mounting Accessory Notes
Optional 4POSTRAILKITWM enables installation in 4-port shortdepth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)
Primary Form Factor
Rackmount
Primary UPS Depth (mm)
425
Primary UPS Height (mm)
44
Primary UPS Width (mm)
445
Rack Height
1U
Shipping Dimensions (hwd / cm)
13.46 x 54.10 x 58.17
Shipping Dimensions (hwd / in.)
5.30 x 21.30 x 22.90
Shipping Weight (kg)
15.88
Shipping Weight (lbs.)
35.00
UPS Housing Material
Steel
UPS Power Module Dimensions (hwd, cm)
4.44 x 44.45 x 42.54
UPS Power Module Dimensions (hwd, in.)
1.75 x 17.5 x 16.75
UPS Power Module Weight (kg)
14.51
UPS Power Module Weight (lbs.)
32
Environmental:
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity
0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)
39
Battery Mode BTU / Hr. (Full Load)
1157
AC Mode Efficiency Rating (100% Load)
99%
Audible Noise
45 dBA maximum, front side 1m
Communications:
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
PowerAlert Software
For local monitoring via the UPS’s built-in communications ports, download PowerAlert Local software at Cable
USB and DB9 cabling included
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Management Card Description
Network management card optional
Communications Interface
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB
