Manufacturer: Tripp Lite

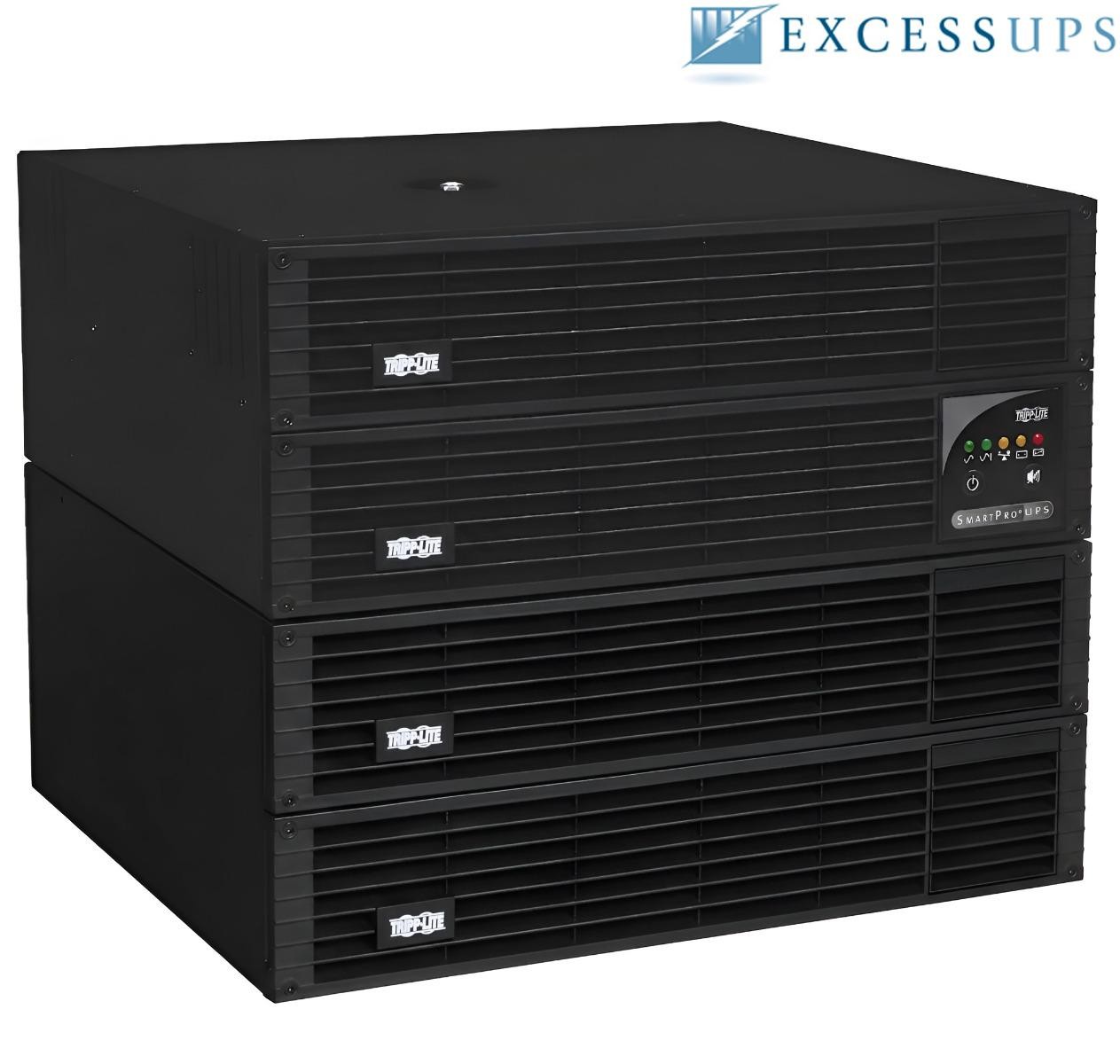

Combo Model: Tripp Lite SmartPro 3000VA 2880W RM 4U 120V (w/ 1 BP48V48RT4U)
Condition: New batteries, refurbished UPS & External Battery Pack
Part Number: SMART3000CRMXL (UPS) + BP48V48RT4U (48V External Battery Pack)
Maximum output: 2880W / 3000VA
Typical backup time at half load:19 minutes (1440 Watts)
Typical backup time at full load: 7.5 minutes (2880 Watts)
Typical Backup Time with 1 EBM (BP48V48RT4U installed):
• 1440W (50% load): ~60 to 75 minutes
• 2880W (100% load): ~25 to 35 minutes
Warranty: 1 year full replacement warranty
The Tripp Lite SMART3000CRMXL is a 3000VA / 2880W line-interactive UPS designed for rackmount installation (4U), delivering reliable power protection with pure sine wave output for critical IT equipment. It operates at 120V with a NEMA L5-30P input and features multiple output options, including 8 NEMA 5-15/20R and 1 NEMA L5-30R, providing flexible connectivity. This UPS offers voltage regulation, battery backup, and protection against power disturbances, making it ideal for servers, networking equipment, and data center applications. For extended runtime, it can be paired with the BP48V48RT4U external battery pack, a 4U rackmount battery cabinet designed to significantly increase backup duration. Both units are refurbished with new batteries and include a 1-year warranty, offering a cost-effective and reliable power solution for enterprise environments.
Tripp Lite SmartPro 3000VA 2880W RM 120V - Tripp Lite SmartPro 3000VA Specifications:
Input:
Rated input current (Maximum Load)
24A (L5-30P input), 30A (hardwire)
Nominal Input Voltage(s) Supported
120V AC
UPS Input Connection Type
NEMA L5-20P
Hardwire
UPS Input Cord Length (ft.)
10
UPS Input Cord Length (m)
3.1
Recommended Electrical Service
120V 30A
Voltage Compatibility (VAC)
120V
Input Phase
Single-Phase
Output:
Output Volt Amp Capacity (VA)
3000
Output Capacity (kVA)
3.00
Output Watt Capacity (Watts)
2880
Output kW Capacity (kW)
2.88
Output Capacity Details
Maximum output increases to 3600W when used with hardwire input
Power Factor
.96
Nominal Voltage Details
120v nominal output in battery mode
Frequency Compatibility
60 Hz
Output Voltage Regulation (Line Mode)
-18%, +8%
Output Voltage Regulation (Battery Mode)
+/- 5%
Load Management Receptacles
Three switchable single-outlet 5-15/20R load banks
Output Circuit Breakers
20A (x2) - each 20A breaker protects 4 5-15/20R outlets / 30A breaker protects L5-30R
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Receptacles
(8) NEMA 5-15/20R
(1) NEMA L5-30R
Individually Controllable Load Banks
Yes
Battery:
Battery Type
Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.)
7.5 min. (2880w)
Half Load Runtime (min.)
19 min. (1440w)
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Expandable Runtime
Yes
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V48RT4U (multi-pack compatible); BP48V27- 2US (multi-pack compatible)
DC System Voltage (VDC)
48
Battery Recharge Rate (Included Batteries)
Less than 7.2 hours from 10% to 90% (typical, full load discharge)
Battery Access
Battery access door allows hot swap battery replacement without powering connected equipment off
Internal UPS Replacement Battery Cartridge
RBC94-2U (quantity 2)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Voltage Regulation:
Voltage Regulation Description
Automatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 83V and overvoltages to 145V
Overvoltage Correction
Input voltages between 127 and 145V AC are reduced by 12%
Undervoltage Correction
Input voltages between 96 and 108 are boosted by 12%
Severe Undervoltage Correction
Input voltages between 83 and 95 are boosted by 24%
User Interface, Alerts & Controls:
Switches
Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions. Back panel includes battery charge level switch for internal or external battery configurations
Audible Alarm
3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone)
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Surge / Noise Suppression:
UPS AC Suppression Joule Rating
570
UPS AC Suppression Response Time
Instantaneous
EMI / RFI AC Noise Suppression
Yes
Physical:
Primary Form Factor
Rackmount
Cooling Method
Fan
Included Mounting Accessory Description
Included 2POSTRMKITWM mounting accessory enables 2-post rackmount installation
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth ( 4POSTRAILKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND )
Minimum Required Rack Depth with External Battery Pack (cm)
64
Minimum Required Rack Depth with External Battery Pack (in.)
25
Minimum Required Rack Depth without External Battery Pack (cm)
58
Minimum Required Rack Depth without External Battery Pack (in.)
22.8
Optional Mounting Accessory Notes
Optional 2-9USTAND enables upright tower UPS placement; 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm)
Primary UPS Depth (mm)
452
Primary UPS Height (mm)
175
Primary UPS Width (mm)
439
Rack Height
4U
UPS Housing Material
Steel
UPS Power Module Dimensions (hwd, cm)
17.50 x 43.94 x 45.21
UPS Power Module Dimensions (hwd, in.)
6.89 x 17.30 x 17.80
UPS Power Module Weight (kg)
46.27
UPS Power Module Weight style="line-height: 150%;">Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity
0-95%, non-condensing
AC Mode BTU / Hr. (Full Load)
539
Battery Mode BTU / Hr. (Full Load)
2159
Audible Noise
45 dBA maximum, front side 1m
Communications:
Network Management Cards
SNMPWEBCARD; WEBCARDLX ; RELAYIOCARD
PowerAlert Software
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at Cable
USB and DB9 cabling included
WatchDog Compatibility
Includes RJ11 EPO (emergency power off) port and interconnection cable
SNMP Compatibility
Compatible with Tripp Lite UPS management card options WEBCARDLX , SNMPWEBCARD and RELAYIOCARD
Network Management Card Description
Network management card optional
Communications Interface
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID - Tripp Lite External Battery Pack Specifications:
Output:
Overload Protection
180A DC Output Fuse System
Input:
Input Phase
Single-Phase
Battery:
Expandable Battery Runtime
Includes a second input/output connector to daisy-chain multiple BP48V48RT4U battery packs
DC System Voltage (VDC)
48
UPS Connection
Attached 20.5 inch cabling with UPS specific DC connector (52.1 cm length, 4 gauge cable)
Typical Battery Lifespan
4-6 years typical (North America)
Expandable Runtime
Yes
Physical:
External Battery Pack Form Factor
Rack
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth (4POSTRAILKIT)
Material of Construction
Black Steel Cabinet
Minimum Required Rack Depth (cm)
60.32
Minimum Required Rack Depth (inches)
23.75
Unit Dimensions (hwd / cm)
17.78 x 44 x 42.5
Unit Dimensions (hwd / in.)
7 x 17.3 x 16.75
Unit Weight (kg)
65.00
Unit Weight (lbs.)
143.3
