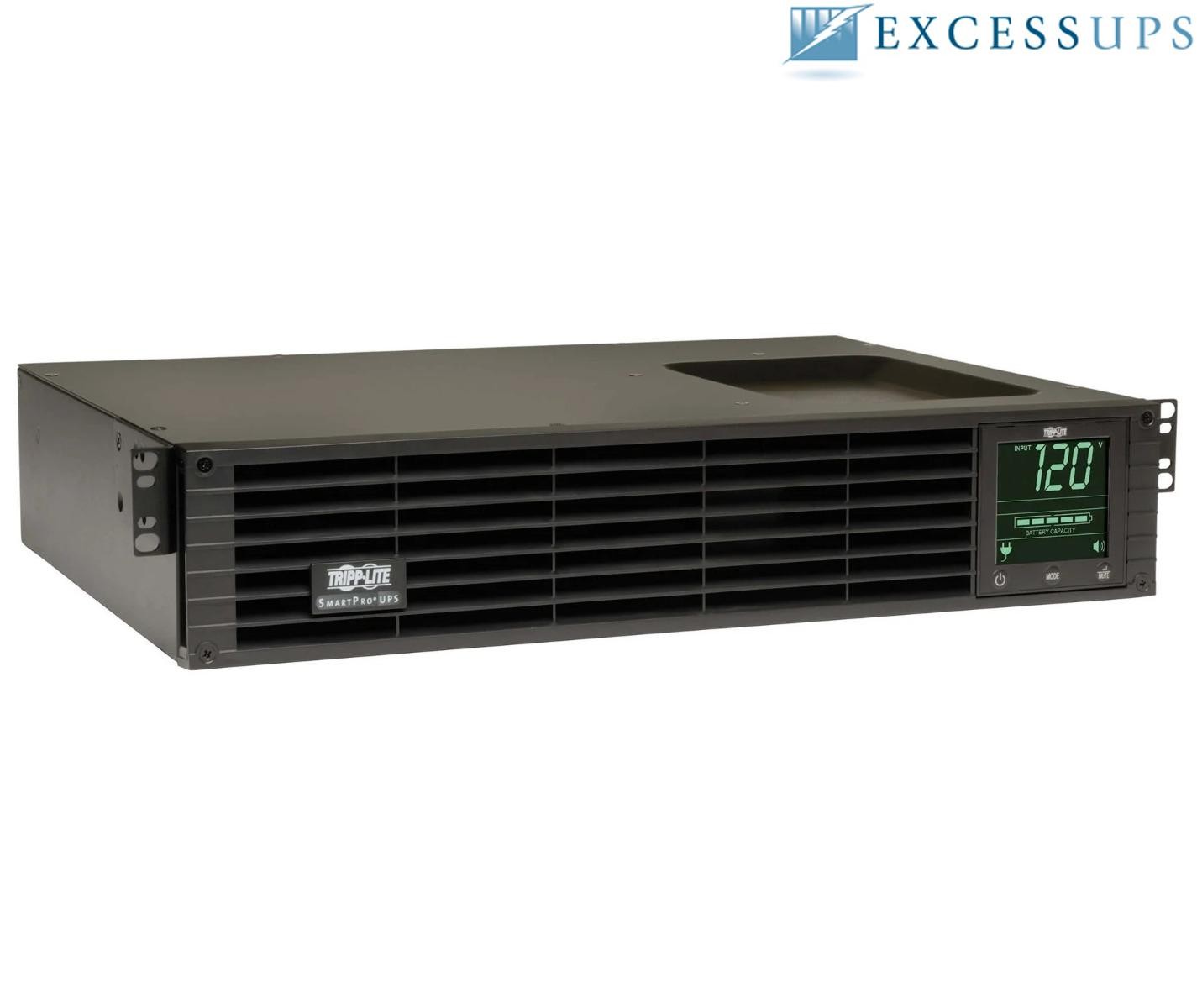

Tripp Lite SmartPro UPS 2200VA 1920W RM 2U LCD 120V 20A SMART2200RMXL2U - Ref...

Price: US $849.99

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2200VA 1920W, LCD, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMART2200RMXL2U
Maximum output: 1920W / 2200VA
Typical backup time at half load:12 minutes (960 Watts)
Typical backup time at full load: 4.5 minutes (1920 Watts)
Warranty: 1 year full replacement warranty

Tripp Lite SmartPro 2200VA 1920W RM 120V SMART2200RMXL2U - User Manual

SMART2200RMXL2U - Tripp Lite SmartPro 2200VA Specifications:

Input:

Rated input current (Maximum Load)

16.0A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

NEMA 5-20P

UPS Input Cord Length (ft.)

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

20A 120V

Input Phase

Single-Phase

Output:

Output Volt Amp Capacity (VA)

2200

Output Capacity (kVA)

2.2

Output Watt Capacity (Watts)

1920

Output kW Capacity (kW)

1.92

Output Capacity Details

Output is reduced to 1600 watts maximum when used with external battery packs

Power Factor

0.87

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-14%, +6%

Output Voltage Regulation (Battery Mode)

+/- 5%

Load Management Receptacles

Two switched single outlet load banks (1 5-15/20R & 1 5-15R)

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

(4) NEMA 5-15R

(4) NEMA 5-15/20R

Individually Controllable Load Banks

Yes

Battery:

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

4.5 min. (1920w)

Half Load Runtime (min.)

12 min. (960w)

Expandable Battery Runtime

Extended runtime supported via optional external battery packs

Expandable Runtime

Yes

Expandable Runtime Description

Maximum output capacity is 1600 watts when used with external battery packs

External Battery Pack Compatibility

BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27- 2US (multi-pack compatible)

DC System Voltage (VDC)

Battery Recharge Rate (Included Batteries)

Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery Access

Front panel battery access door

Internal UPS Replacement Battery Cartridge

RBC94-2U

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation:

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Overvoltage Correction

Voltage reduction of 12% applies when input is between 127 and 145

Undervoltage Correction

Voltage boost of 12% applies when input voltage is between 96 and 108

Severe Undervoltage Correction

Voltage boost of 24% applies when input voltage is between 83 and 95

User Interface, Alerts & Controls:

Front Panel LCD Display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Switches

3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Alarm Cancel Operation

Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Surge / Noise Suppression:

UPS AC Suppression Joule Rating

570

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Physical:

Primary Form Factor

Rackmount

Cooling Method

Fan

Included Mounting Accessory Description

Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Included Accessories

4 post 19 inch rackmount

Installation Form Factors Supported with Optional Accessories

2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND ); Wallmount ( 2POSTRMKITWM )

Minimum Required Rack Depth with External Battery Pack (cm)

Minimum Required Rack Depth with External Battery Pack (in.)

26.5

Minimum Required Rack Depth without External Battery Pack (cm)

Minimum Required Rack Depth without External Battery Pack (in.)

24.5

Optional Mounting Accessory Notes

Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)

490

Primary UPS Height (mm)

Primary UPS Width (mm)

440

Rack Height

Shipping Dimensions (hwd / cm)

21.59 x 61.72 x 54.86

Shipping Dimensions (hwd / in.)

8.50 x 24.30 x 21.60

Shipping Weight (kg)

34.93
