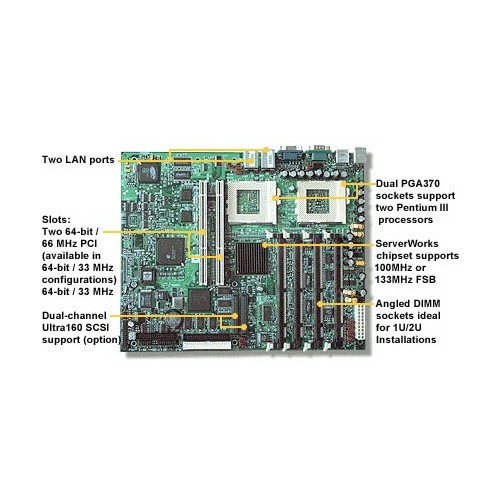

Tyan S2510 Thunder LE S2510 Dual socket 370 motherboard. ServerWorks ServerSet I
Price: US $94.00
Tyan Thunder LE S2510NG
Dual socket 370 motherboard
Rear Panel I/O Ports:
One standard floppy connector supports up to two drives
Two USB ports
One slim floppy connector (optional)
One 9-pin 16550-based serial port
PS/2 keyboard and mouse ports
Internal I/O Interface:
Dual-channel master mode
Up to four Enhanced IDE devices
Support for DMA IDE and ATAPI compliant devices
Due to limitations of the ServerWorks chipset, IDE transfer rates are limited to DMA at 16.6MB/sec
Integrated SCSI (Optional):
LSI SYM53C1010 chipset
Dual-channel Ultra160 SCSI support
160MBps throughput and up to 15 devices per channel
Ch A & B are both 68-pin connector
Motherboard Specifications
Model:
Tyan Thunder LE S2510NG
Processor Support:
Dual PGA370 ZIF sockets supports up to two Intel PIII processors (FC-PGA)
Two on-board VRMs (VRM 8.4 ServerSet III LE
Memory:
Four 25 angled 3.3v 168-pin DIMM sockets
Supports up to 4GB of PC133 reg. SDRAM
Supports ECC (72-bit) memory modules
Expansion Slots:
Two 64-bit 66MHz (3.3-volt) PCI slots (available in a 64-bit 33MHz configuration)
PCI riser card required when installed in 1U/2U chassis
On-Board Video:
ATI RAGE XL graphics accelerator 4MB frame buffer
Standard 15-pin analog VGA port
On-Board LAN:
Two Intel 82559 LAN controllers
10/100Mbps data transfer rate per BIOS on 4Mb Flash ROM Auto-configuration of IDE hard drive types
