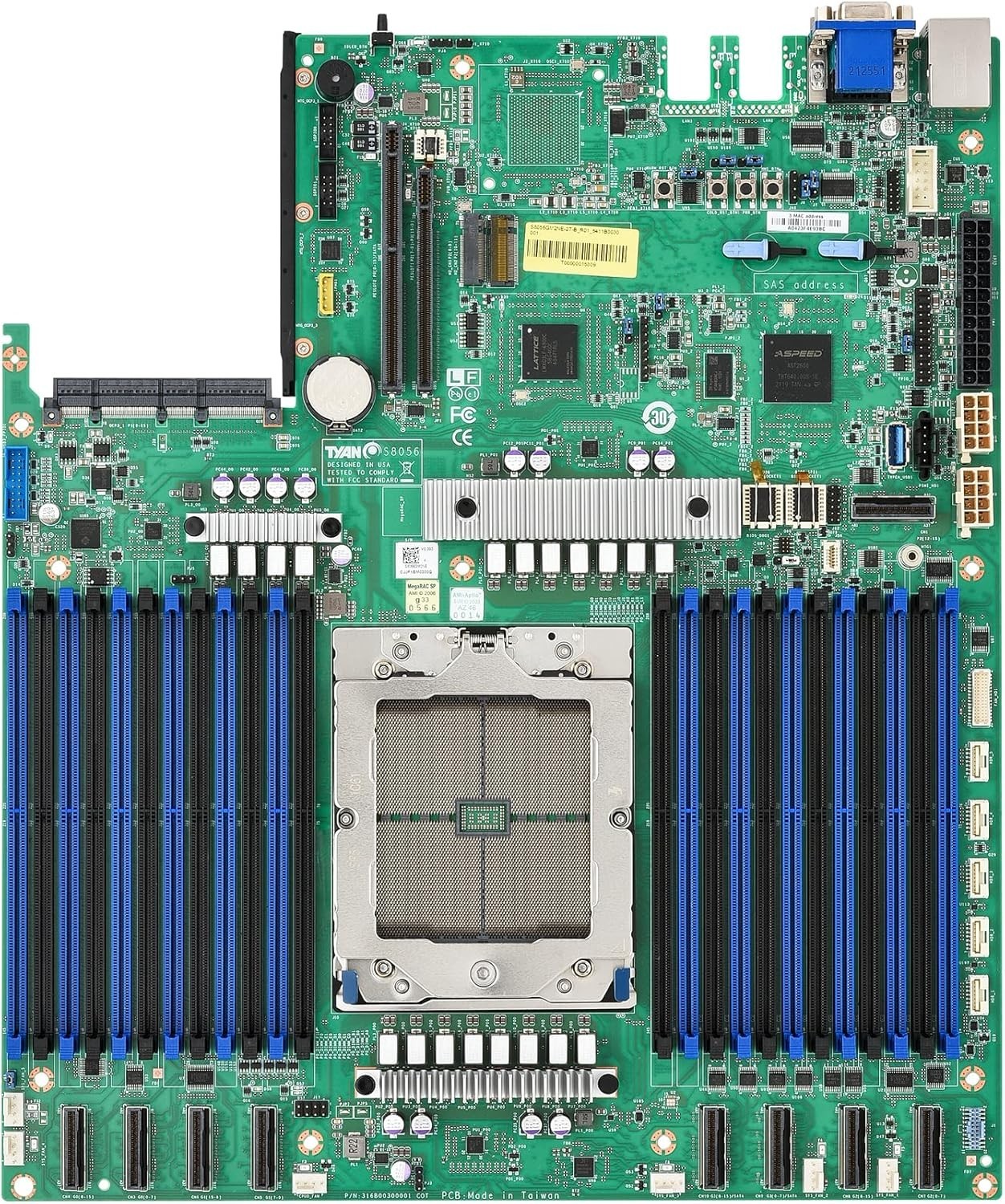

New MiTAC Computing Tyan S8056GME Server Motherboard AMD EPYC 9004/24 DIMM/PCIe 5/M.2/16 SATA/8 MCIOBuy with confidence save and get free and fast shipping

Tyan S8056GME Server Motherboard Specifications

Processor

• Quantity / Socket Type: 1 × AMD Socket SP5

• Supported CPU Series: AMD EPYC™ 9004 Series Processor

• Thermal Design Power (TDP): Max up to 400W (cTDP)

Memory

• Supported DIMM Qty: 24 slots

• DIMM Type / Speed: RDIMM DDR5 4800 MT/s (1DPC), 3600 MT/s (2DPC)

• Capacity: Up to 6,144GB RDIMM/3DS RDIMM

• Memory Channel: 12 Channels per CPU

• Memory Voltage: 1.1V

Expansion Slots

• PCIe: 1 × PCIe Gen.5 x24 / 1 × PCIe Gen.5 x28 (w/ x16 link)

• Others: 1 × PCIe Gen.5 x16 OCP 3.0 Mezzanine Slot

LAN

• Quantity / Port: 1 × GbE dedicated for IPMI

• PHY: Realtek RTL8211F

Storage SATA

• Connector: 16 × SATA

• Controller: Direct from AMD EPYC CPU

• Speed: 6Gb/s

• RAID: N/A

Storage NVMe

• Connector (M.2): 2 × 22110/2280 (PCIe Gen.4)

• Connector (U.2): 1 × MCIO x4 / 8 × MCIO x8

Graphics / VGA

• Connector Type: D-Sub 15-pin

• Resolution: Up to 1920×1080 @60Hz

• Chipset: Aspeed AST2600

Input / Output

• NVMe: 1 × MCIO x4 / 8 × MCIO x8

• USB: 1 × USB3.2 Gen.1 header, 1 × USB3.2 Gen.1 Type-A, 2 × USB3.2 Gen.1 ports

• COM: 1 × DB-9

• VGA: 1 × D-Sub 15-pin port

• RJ-45: 1 × GbE dedicated for IPMI

• Front Panel: 1 × 2×12-pin SSI header

• IPMB: 1 × 1×4-pin header

• Others: Reset, Power, ID buttons

TPM (Optional)

• TPM Support: Refer to TPM supported list

• Interface: SPI

System Monitoring

• Chipset: Aspeed AST2600

• Fan: 6 × 4-pin headers

• Temperature: CPU, memory & system environment monitoring

• Voltage: CPU, memory, chipset & power supply monitoring

• LED: Over-temperature warning, Fan & PSU fail, Over-voltage warning

• Others: Watchdog timer support

Server Management

• Onboard Chipset: Aspeed AST2600

• AST2600 iKVM: 24-bit video compression, storage over IP, remote platform flash, USB 2.0 virtual hub

• AST2600 IPMI: IPMI 2.0 compliant BMC, 10/100/1000 Mb/s MAC interface

BIOS

• Brand / ROM Size: AMI / 64MB

• Features: Hardware monitor, automatic fan speed control, boot from USB/PXE via LAN, storage console redirection, SMBIOS 3.3, PnP, Wake on LAN, ACPI 6.2, S0/S5 sleep states

Physical Dimensions

• Form Factor: Proprietary

• Board Dimension: 14.18" x 12.16" (360.2 × 308.8mm)

Regulations

• FCC, CE, RCM, VCCI: Class A

• RoHS: 6/6 Compliant

Operating Environment

• Operating Temp: 10°C ~ 35°C (50°F~95°F)

• Non-operating Temp: -40°C ~ 70°C (-40°F~158°F)

• Humidity: 90% non-condensing at 35°C
