Tycon Systems TPDIN-Monitor-WEB PowerSens Remote Monitor & Control – Like New with Temperature Sensor
For sale is one genuine Tycon Systems TPDIN-Monitor-WEB PowerSens Web-Based Remote Monitoring and Control System.
This unit is in excellent, practically new condition. It was purchased and configured only for evaluation and familiarization with the product. It was never placed into normal field service or used as part of a permanent installation.
The unit was powered, configured, and tested to become familiar with its functions and web interface. It is fully functional and ready for use.
The external temperature sensor is included.
PRODUCT FEATURES
The TPDIN-Monitor-WEB is designed for remote monitoring and control applications including:
- Telecom sites
- Wireless / WISP installations
- Remote equipment cabinets
- Solar power systems
- Battery backup systems
- Industrial monitoring
- Network equipment
- Remote power control and reboot applications
MONITORING CAPABILITIES
- Four DC voltage monitoring inputs
- Voltage measurement range: approximately 1–80 VDC
- Four current monitoring channels
- Two temperature measurements
- Internal temperature sensing
- External temperature sensor input
- External temperature sensor INCLUDED
- Approximate temperature measurement range: -40°C to +125°C
REMOTE CONTROL
- Four onboard relays
- Remote relay control through the web interface
- Manual relay operation
- Ping watchdog control
- Time-based control
- Temperature-based control
- Useful for remotely power-cycling routers, radios, cameras, access points, and other equipment
NETWORK & MANAGEMENT FEATURES
- Built-in web interface
- Ethernet network connection
- SNMP support
- Remote monitoring from a standard web browser
- Integrated data logging
- DIN-rail mounting
- Removable terminal connectors
CONDITION
This unit is very lightly used / practically new.
It was configured and tested only to learn and evaluate the product and was never placed into regular field service.
- Excellent cosmetic condition
- Excellent physical condition
- Terminal blocks are in excellent condition
- Ethernet connector is clean
- DIN mounting hardware is intact
- Tested and working properly
- External temperature sensor included
Please review all pictures carefully for the exact cosmetic condition.
IMPORTANT NETWORK CONFIGURATION INFORMATION
The unit currently has the following static IP address configured:
216.150.32.6 /24

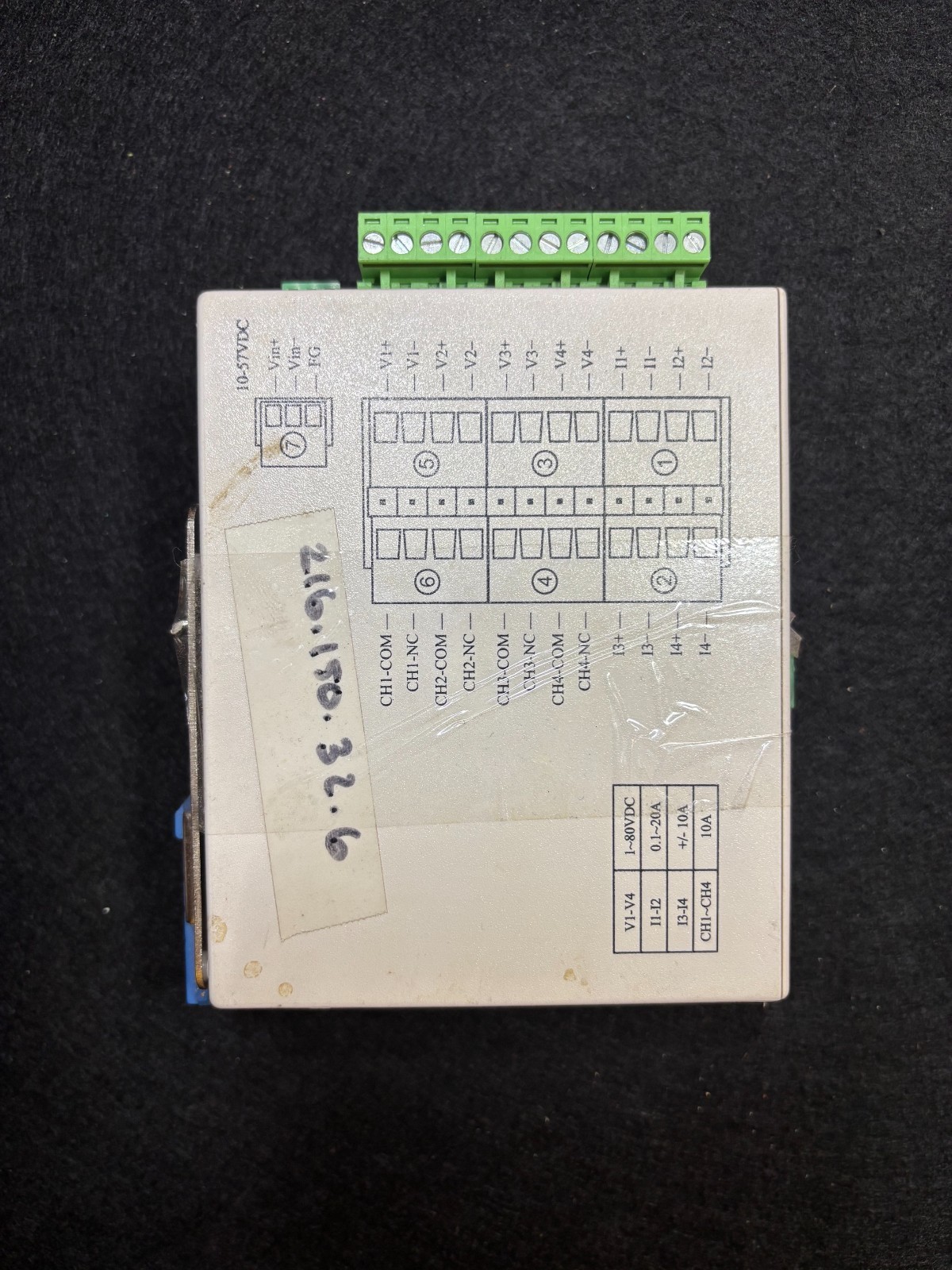

This IP address is also clearly labeled on the device with a small piece of tape for easy reference.
I am intentionally leaving the unit with its current known IP configuration so the new owner can identify the unit and reconfigure the network settings as required for their own installation.
The buyer should change the IP address, subnet mask, gateway, security settings, email settings, SNMP settings, relay parameters, and any other configuration as appropriate for their own network and application.
Please note that performing a factory reset on this model may not reset the network/IP configuration.
INCLUDED
- One Tycon Systems TPDIN-Monitor-WEB
- One external temperature sensor
- Removable terminal connectors shown in the pictures
No power supply, Ethernet cable, DIN rail, manual, original box, or other accessories are included unless specifically shown in the pictures.
WARRANTY & RETURNS
- 14-day warranty
- Buyer pays return shipping
- Item must be returned in the same condition in which it was received
Please double-check all pictures.
Please let us know before buying if you have any questions or comments.
Do not assume. If it is not listed or pictured, it is not included!!!
