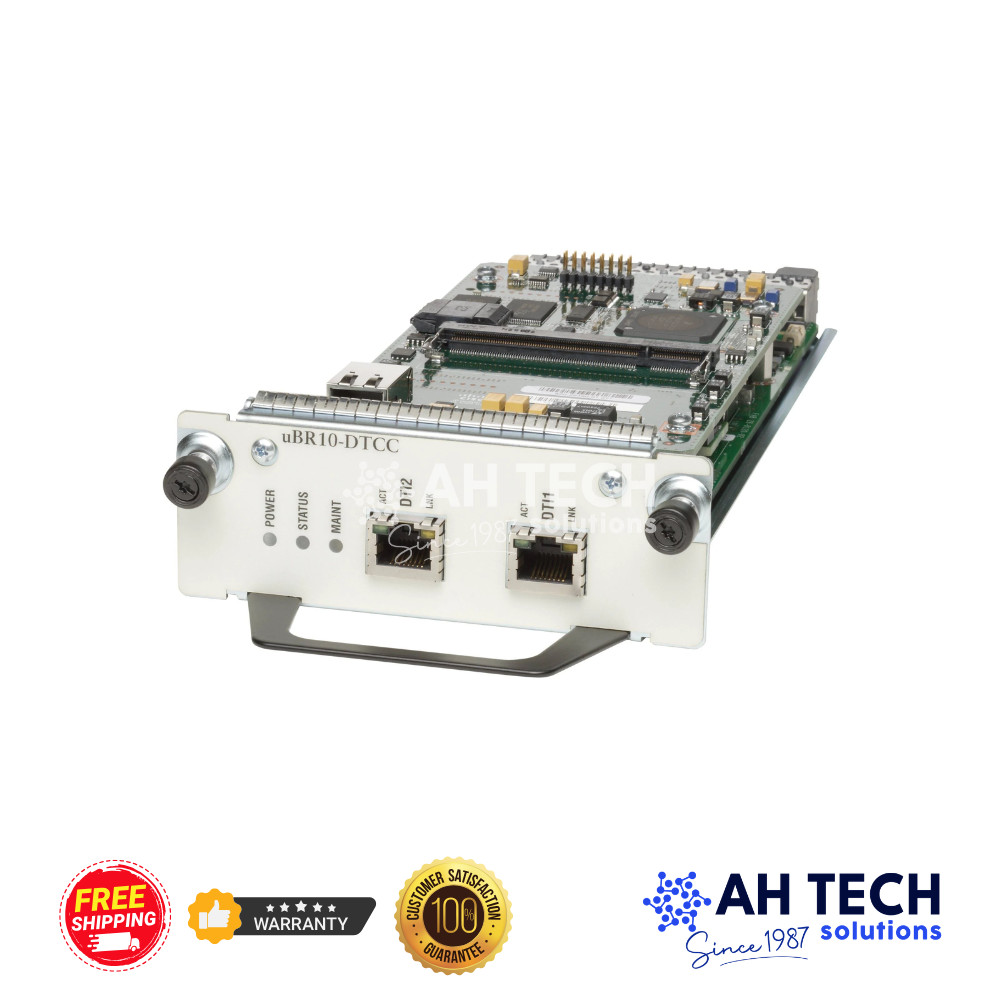

Listing TemplateProduct DetailsCisco UBR10-DTCC – DOCSIS Timing, Communication & Control Card for uBR10012
The Cisco UBR10-DTCC is the DOCSIS Timing, Communication, and Control (DTCC) card designed exclusively for the Cisco uBR10012 Universal Broadband Router chassis. Acting as a secondary control processor, it generates and distributes a precise 10.24 MHz DOCSIS clock and 32-bit timestamp to every cable interface line card in the system. Engineered for cable operators and ISPs running large-scale HFC networks, this card is critical to maintaining synchronized, DOCSIS-compliant broadband service delivery. It supports active/standby redundancy so that if the primary card fails, the backup takes over seamlessly with no loss of data.
Key Features & Benefits
- - DTI-Based DOCSIS Clock Distribution: Generates and propagates a 10.24 MHz clock and 32-bit DOCSIS timestamp via the DTI protocol to all cable interface line cards, ensuring precise timing across the entire headend platform.
- - Active/Standby Redundancy: Two DTCC cards operate as primary and backup. If the active card fails, the standby automatically assumes control without interruption, maximizing network uptime.
- - Dual RJ-45 External Clock Inputs: Primary and secondary Stratum 3 clock reference ports allow synchronization with GPS or BITS external timing sources traceable to a Stratum 1 reference.
- - Independent Line Card Power Control: Allows software to independently power on or off any cable interface line card in the uBR10012 chassis, simplifying maintenance and troubleshooting.
- - LCD Panel and Chassis Monitoring: Drives the front-panel LCD display for system status and configuration, and continuously monitors chassis power consumption.
- - Low Power Consumption: Operates at only 12W, making it an efficient control plane component for large CMTS deployments.
- - Cisco IOS Compatibility: Supported from Cisco IOS Release 12.3(23)BC and later, including 12.2(33)SCB and beyond.
Technical Specifications Specification Details Model / Part NumberUBR10-DTCC BrandCisco DescriptionDOCSIS Timing, Communication, and Control (DTCC) Card + DTI Client Compatible ChassisCisco uBR10012 Universal Broadband Router Device TypeControl Processor - Plug-in Module Interfaces2 x RJ-45 (Primary & Secondary DTI / External Clock Reference) Clock Output10.24 MHz + 32-bit DOCSIS Timestamp External Clock ReferenceStratum 3 (Primary & Secondary), GPS or BITS compatible RedundancyActive/Standby (two cards required for full redundancy) Height4.73 in (12.01 cm) Width1.548 in (3.93 cm) Depth10 in (25.4 cm) Weight23.98 oz Power Consumption12W MTBF431,348 hours Operating Temperature41F - 104F (5C - 40C) Operating Humidity5% - 85% (non-condensing) Cisco IOS Support12.3(23)BC and later; 12.2(33)SCB and later ConditionNew in bag
