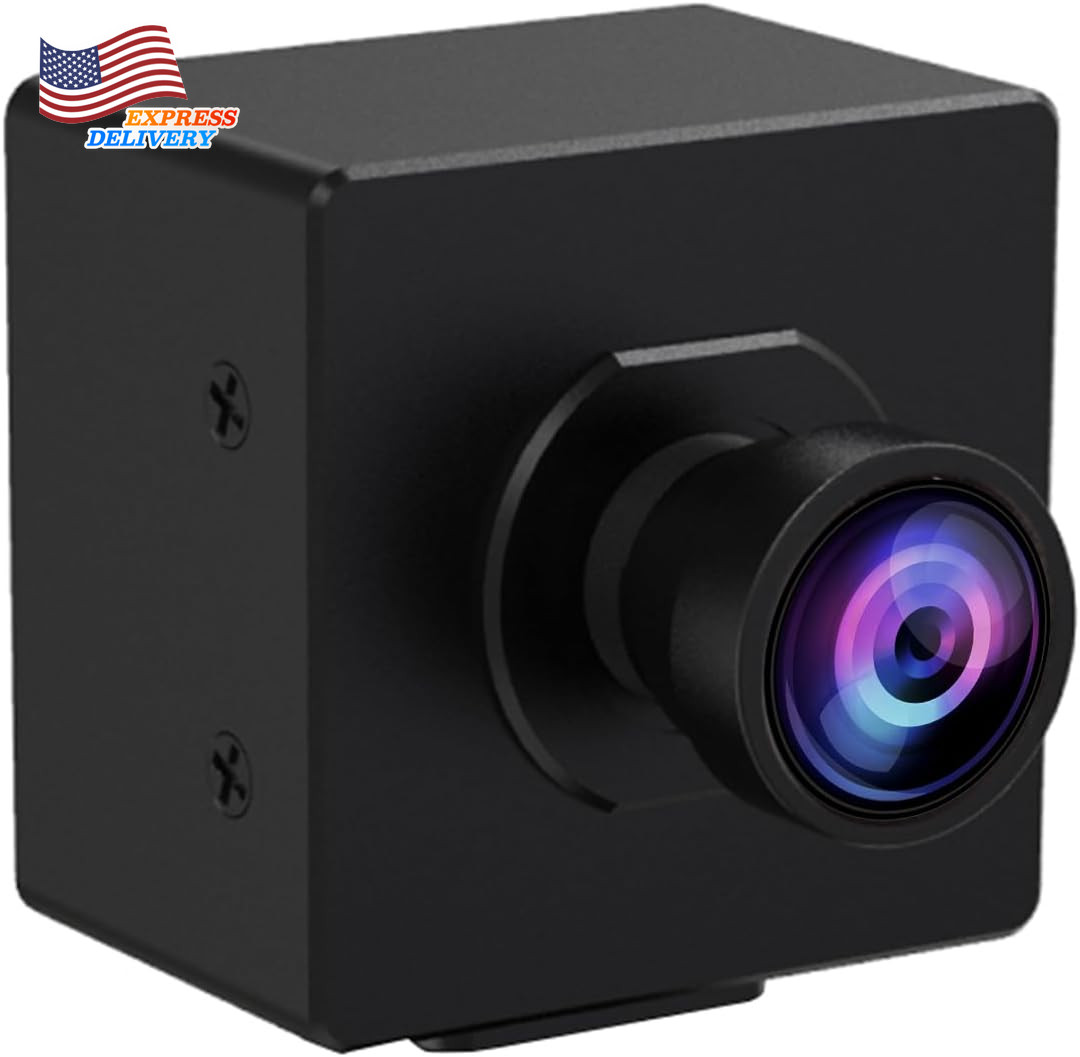

USB 3.0 Camera IMX477P 12MP High-Speed USB Camera Module with 88°(D)
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
USB 3.0 Camera IMX477P 12MP High-Speed USB Camera Module with 88°(D)
Price: US $247.23
  • Store
  • New Arrivals
  • Add to Favorite
  • View response
  • Contact
USB 3.0 Camera IMX477P 12MP High-Speed USB Camera Module with 88°(D)Description Item model number B0459C Media Type ProductImage, EnhancedContent Video Capture Resolution 720p Color black Shooting Modes Manual, Automatic Exposure Control Type Automatic Item Weight 4.8 ounces Package Dimensions 3 x 2.7 x 2.7 inches

  • High Resolution: This USB camera Utilizes a 1/2.3" 12.3MP image sensor, achieving a maximum still resolution of 4056x3040 pixels which can help you capture incredibly detailed images.
  • High Speed: With this high-speed UVC camera module, you can enjoy programmable frame rates, with the potential to reach up to 120fps at 720p resolution that ensures smooth and fluid video capture.
  • Proprietary on-board ISP: Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
  • M12 Lens: This 12MP USB camera features with an 88° DFoV M12 lens with minimal distortion for exceptional image quality.
  • Free Driver: This USB 3.0 camera has effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

Product description

This 477 USB 3.0 camera boasts a maximum resolution of 12.3 megapixels utilizing the advanced 477 image sensor. With a maximum still resolution of 4056*3040, users can capture incredibly detailed images. Moreover, the camera's frame rate can reach up to 120fps@720P, ensuring smooth and fluid video capture. With its high-quality M12 Lens offering a field of view 88°(D), this camera captures stunningly accurate images. Arducam's latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.


Package Including
  • 1 x 12MP USB3 Camera Module with Back Cover and Tripod Adapter
  • 1 x 1m USB A to Type-C Cable
Highlights

SENSOR: 477p

Resolution: 12.3 Megapixels

Lens Mount: M12 Mount

Frame Rate (USB 3.0): 4056*3040@10fps, 3840*2160@20fps, 2016*1520@50fps, 1920*1080@60fps, 1280*720@120fps

Frame Rate (USB 2.0): 1280*720@10fps

Backward compatibility with USB 2.0: This camera has Backward compatibility with USB 2.0 ensuring flexibility and seamless connectivity.

Image Sensor Color Filter Type Color Shutter Type Rolling Optical Size 1/2.3" Output Format YUY2 Pixel Size 1.55 µm x 1.55 µm Sensor Active Area 4056(H)×3040(V) Lens Focus Type Manual Focus FOV 88°(D)×75°(H)×60°(V) Lens Mount M12 Mount F.NO F2.8 E.F.L 3.9mm Default Focus Range 2.3m-∞ IR Sensitivity Integral IR-cut Filter, visible light only Others Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts Connector Type-C reversible interface connector UVC Compliant No additional drivers required Operating Voltage 5 V +/- 5% Operating Temp. 32°F-158°F (0°C to 70°C) Power Requirements Max: 1.31W , Min: 0.74W Camera Board Size 34×34 mm Supported OS Windows, Linux Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux UVC Controls Brightness, Contrast, Saturation, Gain, White Balance (Manual and Auto) Applications
  • Machine Vision
  • Automated Optical Inspection
  • 3D Scanning and Metrology
  • Robotics and Automation
  • Biomedical Imaging
