[More Connectivity]: Sleek design with 16 add on port connections, including three USB C ports, 2 Display ports, 2 HDMI ports,
Gigabit Ethernet network RJ-45, a headphone / microphone jack, and 4 USB 3.0 ports.
[Dual 4K or 5K Display]: Connects 2 UHD 4k (up to 4096x2160 @60Hz) DisplayPort displays or connects a single 5K Display (up to 5120x2880 @60Hz) through a single USB C cable.
[Power & Charger]: Power and charge your USB C equipped laptop up to 65W through the included USB C cable;
provides enough power to support attached peripherals with the included 100W power adapter.
[4-Port USB 3.0 & 2-Port USB C]: Support all USB devices such as scanners, digital cameras, keyboards, mice, printers,
external USB hard drives, etc; charge your smartphone, or tablet with the Fast-Charge Type C ports.
[Fully Compatibility]: Compatible with Microsoft Windows/ 7/ 8/ 8.1/ 10, Mac OS 10.6 or later (Currently Not Supported on Mac OS 10.13.4).
[Perfect for MacBook Neo Multi-Monitor Setup] Fully optimized for the latest MacBook Neo. While the native system may limit external displays,
our DisplayLink-powered UG69PD2 breaks the boundary, allowing you to extend dual 4K monitors seamlessly. As recommended by AppleInsider,
it’s the ultimate productivity solution for the new MacBook Neo era.

Wavlink - Bringing Technology to Life

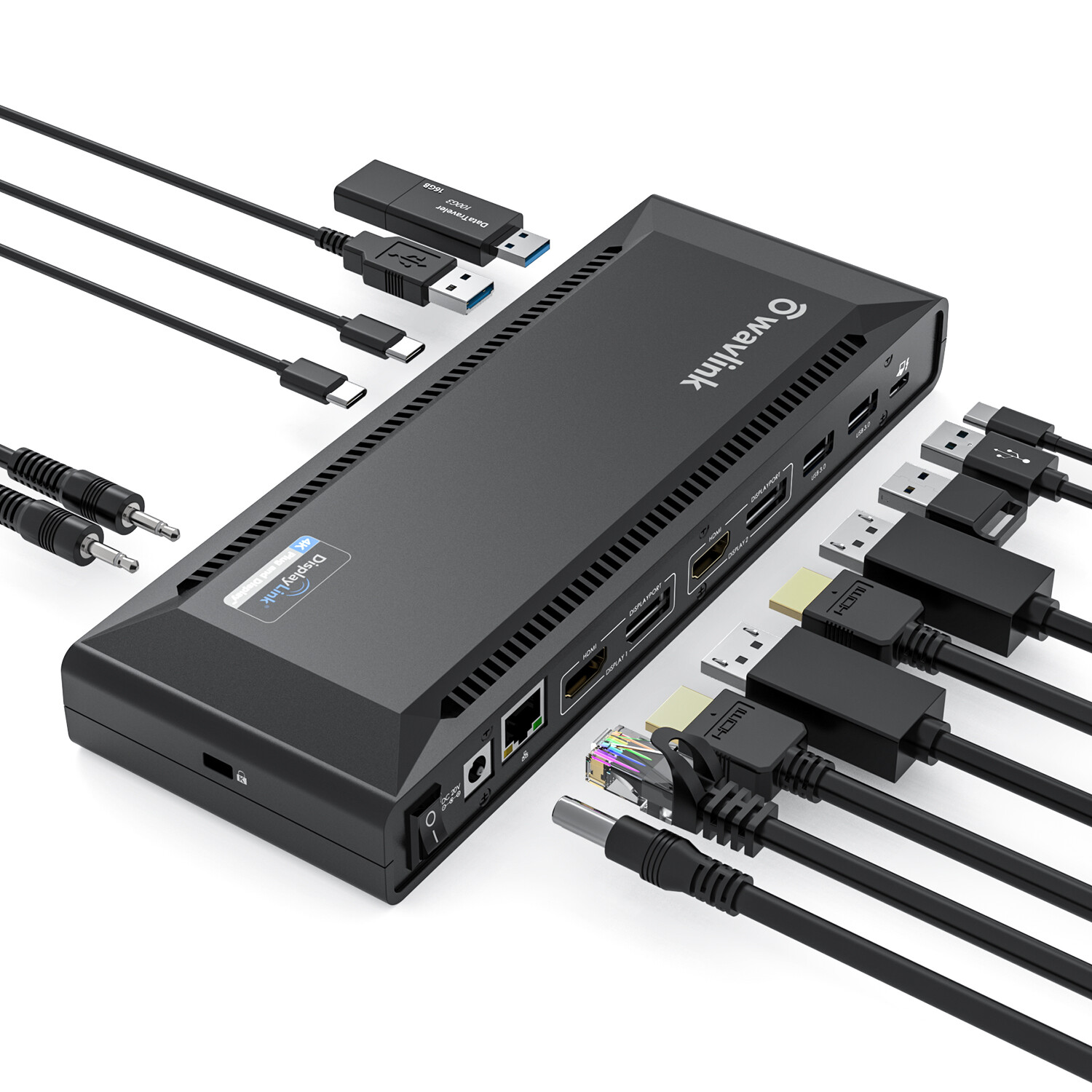

Wavlink USB C Dual 4K with Power Delivery Docking Station is an all-in-one solution that could not only provide a variety of connectivity
but also power and charge your laptop. Besides, using one single USB C connection from the dock to your PC,
you can easily connect your PC to one 5K (5120 x 2880) @60Hz UHD display (DisplayPort Only) or two 4K (4096 x 2160) @60Hz UHD displays.
Display Link Certified, DL- 6950 chip. So the USB C PD Dock helps increase your productivity or flexibility in the office or your home.

Not only for connectivity, but also for charging

The Wavlink USB C PD Docking Station keeps you from juggling between power shortage and connectivity.
You can charge your laptop by connecting to the USB C PD Dock. What even better is that your
Smartphone can be charged simultaneously through the fast charging USB C ports.

5K@60HZ Output

14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene.
It also helps to improve operational efficiency on images and video editing.

Multitask with Dual 4K Displays

Featuring the DisplayPort and HDMI port, Wavlink Docking Station gives you the flexibility to connect your displays as needed.
It supports dual monitors or a single high resolution 5K monitor. It will greatly help you facilitate high-resolution works,
graphically intensive images, video editing, CAD drawings, medical imagery and more.

Unlock the Full Potential of Your MacBook Neo

While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connectdual 4K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power, the dock is equipped
with a wide range of versatile ports—giving you more connectivity, more convenience, and an all-around elevated experience.

SuperSpeed 4 USB 3.0 Ports & 2 USB C Type C Ports

SuperSpeed USB3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB2.0. The Wavlink Universal Dock features
4x USB 3.0 ports, 2 USB C ports, allowing for SuperSpeed data transfer between peripherals while charging.

Blazing-fast Gigabit Ethernet

Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the
full performance of wired network connections with built-in Gigabit Ethernet port.

Crystal-clear Sound

With separate microphone input and amplified audio output,you can enjoy crystal-clear conference calls or any other project
benefits from having your voice heard. You’ll be amazed at the immersive music it gives you.

Specification

Hardware
Ports

1 xUSB-C(to Host); 2 xDP; 2 xHDMI; 4 xUSB3.0 Type-A ports; 2 x USB-C Gen1 ports; Earphone and Microphone Jack; RJ45 Jack; LED;

On/Off Switch

Button On/Off Switch

LED Blue Color LED

Chipset
DL6950 FL5002 VL813

Flash 64Mb
Power Supply DC20V/5A 100Watt
Power Plug US/EU/UK or by request
Rated Volt./ Freq./Current 100-240 Va.c. 50/60Hz, 2A Max , CLASSⅡ
Operating System Support Microsoft Windows & Apple Mac OS

Working Standards

1. Hub running at USB3.0 speed
2. Upstream Charging 65Watt
3. DP or HDMI resolution Max. 4096 x 2160 p60
4. Ethernet running at Gigabit
5. 2.0 channel Audio

Dimensions
Unit Dimensions 223 X 80 X 26MM (L x H x W)
Weight 330.6g; 889.9g (Package Included);
Housing Material ABS
Shell color Black Color
Package Dimensions 313*150*60mm (L x W x H)

Package
In the box
1x USB-C Universal Docking station
1x USB-C to C Cable(E-Mark Chip)
1x User Manual
1x Software Installation CD
1x DC20V/5A 100W Power Adapter

Note:
1) In order to support 5K video output, must connect both DisplayPort outputs to a single 5K TV/Monitor.
2) Driver download: DisplayLink
Doesn't support Mac OS 10.3.4. If you require mirror or extended mode displays, we recommend that you stay on macOS 10.13.3 or earlier at this time.
