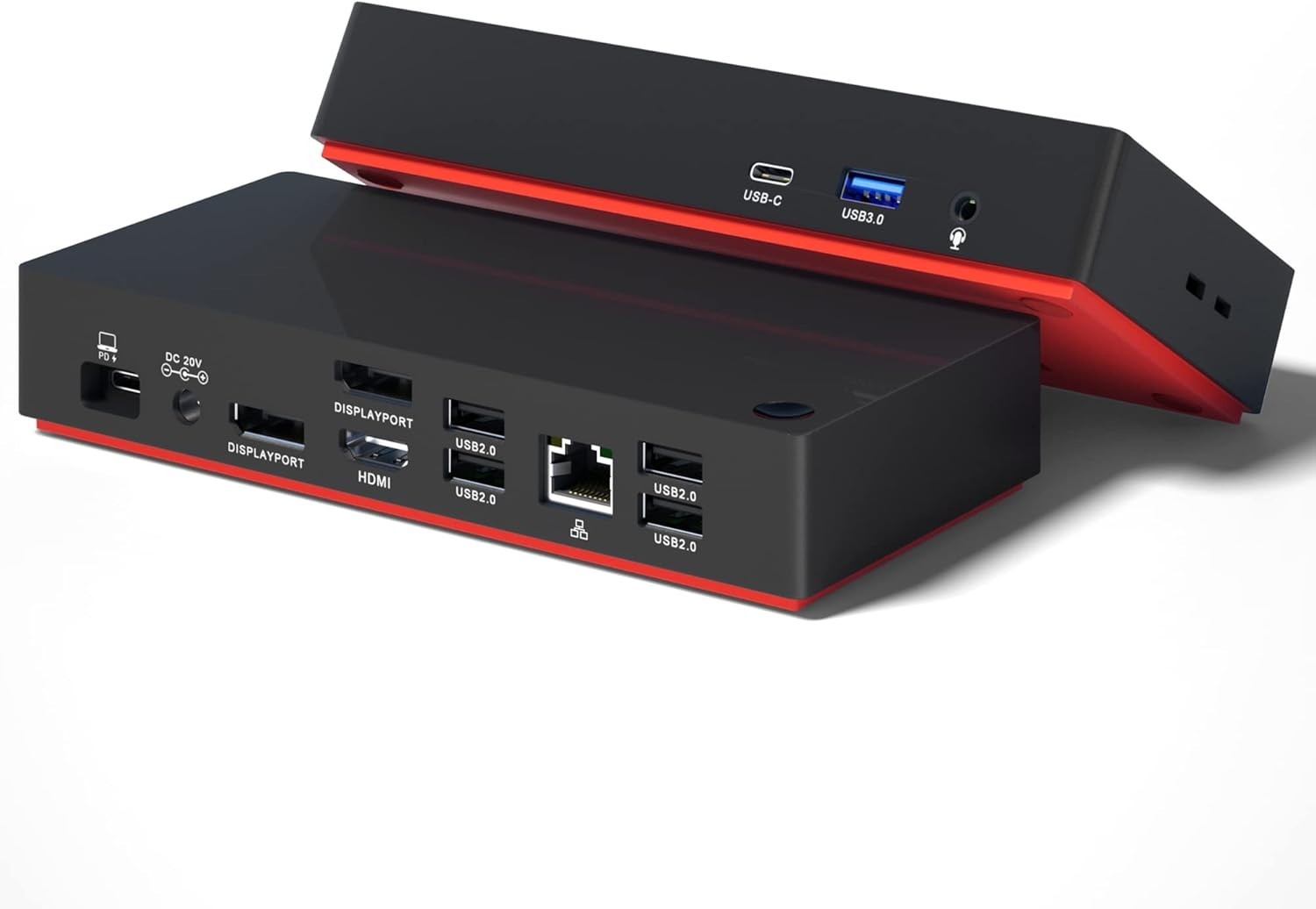

USB C Triple Display Docking Station with Laptop Charging, for Thunderbolt, USB4, or USB-C Systems, Compatible with Windows, macOS laptops (2X DisplayPort, 1X HDMI, 7X USB Ports, 100W PD, RJ45, 3.5mm)About this item

• 【13-in-1 Expanded Connectivity】 With 13 ports and 120W power delivery, this USB-C laptop docking station can provide 100W PD fast charging for your laptop, your Windows laptop will have plenty to power your productivity. This triple monitor docking station extends across three screens(1 HDMI and 2 DP Video Outputs), up to 4K 60Hz, Gigabit Ethernet, 3.5mm AUX input, 4x USB 2.0 ports, 1x USB 3.0 port, 1x USB C port. All through a single 10Gbps USB-C cord back to the computer.
• 【Triple Monitor Display】This usb c docking station triple monitor features 2x DisplayPort ports output capable of 4K 60Hz, and 1x HDMI video output capable of 4K 30Hz, boost productivity by casting up to 3 different contents on displays. Note: MacOS DOES NOT support MST mode, you can only get 2 different contents：A-BBB, or 3 display peripherals will mirror the desktop interface：A-AAA.
• 【100W Power Delivery】Keep your laptop charged all day with 100W power delivery via the USB-C host port. And if your computer needs less power, the laptop docking stations will automatically adjust.
• 【Broad Compatibility】USB-C dock is compatible with Windows, ChromeOS, and macOS 10.6.2 and above, Linux fedora FC8 and above systems with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C. Compatible laptops with USB-C port (support Power Delivery+DisplayPort+Date Transfer)
• 【Fast Transmission & Stable Network】2 USB3.0 ports(1 USB-A 3.0 &1 USB-C 3.0) offering a data transfer speed going up to 5Gbps for smartphones, tablets, flash drive, hard drive and any compatible external storage; 4*USB 2.0 ports for keyboard and mouse; 3.5 Audio can be connected to audio equipment such as earphones and speakers; 1000Mbps internet LAN port ensuring a fast and stable network connection (backward compatible with 1000/100/10Mbps)
• 【What You Get】1x USB C Docking Station, 1 x DC 20V/6A Power Adapter, 1 x USB 3.1 Gen 2 USB-C to C cable, 1 x User Manual,

Product descriptionPlease Note Before Your Purchase

1. Ensure that your laptop’s USB-C port supports PD Power Delivery, DP Alt Mode and Data Transfer. Otherwise, some interface functions of the docking station can‘t be used. Consult your laptop’s manual or contact the manufacturer for this information.

2. Must connect the USB-C port of the laptop to docking station through the equipped USB 3.2 Gen 2 USB C to C Cable (supports PD Power Delivery and Data Transfer).

3. Please keep the DC adapter connected with 3 monitor docking station while using for a long time. which serves to power the docking station and also provides up to 100W PD fast charging for your laptop.

Product Packing List

1* 13 in 1 USB-C Docking Station

1* USB 3.1 Gen2 USB C to C Cable (80cm)

1* 20V/6A DC Power Adapter

1 * User Manual

Interface Description

• 1* USB-C Ports: To Host Port, Supports up to 100W fast charging for your laptop. Dedicated to connect your laptop and this docking station with the included USB-C to C cable.
• 1* DC 120W Adapter: The 120W DC power adapter is exclusively designed to power the docking station, and also power your laptop up to PD 100W.
• 1* HDMI 2.0 ports:4K@60Hz
• 2* DisplayPort 1.2 ports: 4K@60Hz
• Note: This USB C docking station features 2x DisplayPort ports output capable of 4K 60Hz, and 1x HDMI video output capable of 4K 30Hz, boost productivity by casting up to 3 different contents on displays.
• 4*USB 2.0 ports: 480 Mbps.
• 1*USB-A 3.0 ports: 5Gbps
• 1* USB-C 3.0 ports: 5Gbps
• 1* 3.5 mm Audio Port: For wired headphones and microphones.
• 1* Gigabit Ethernet
• 1* Power Switch—Turn the functionality of the dock on and off

About Triple Display

About Casting or Mirroring on 3 Screen Displays

• Settings on Windows OS : Since the Intel Control Panel only supports casting 3 interfaces, 1 of the 3 displays or your laptop’s screen will have no signal when connecting 3 displays to this docking station
• Settings on MacOS: Go to: About this Mac – Display – Display Preferences – Mirror Display, then uncheck to enable extended mode.
• Note: MacOS DOES NOT support MST mode, you can only get 2 different contents：A-BBB, or 3 display peripherals will mirror the desktop interface：A-AAA.

Up to 100W of USB C Power Delivery

• Please use the equipped usb-c to usb-c cable or other usb c to c cable with full-featured mode. If your device supports USB Power Delivery (USB PD), this docking station supports up to 100 watts (100W) of charging to your host device.
• This means you won't need to use the charger that came with your laptop when you're at your desk, on supported hosts. The one USB-C cable from the dock is all you'll need to stay charged and connect all your devices.

Access Files at Speed

• Transfer movies, photos, and music at speeds of up to 5 Gbps via the USB-C 3.0 port and the USB-A 3.0 data port.

Fast & Stable Ethernet (LAN) Connectivity

• Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections with built-in Gigabit Ethernet port.
• Gigabit Ethernet: 10/100/1000 Mbps rates

Operating System:

• Microsoft Windows
• MAC OS 10.6.2 and above
• Linux Fedora FC8 and above
• Google Chrome OS

Crystal-Clear Sound Quality

• Compatible with any devices with standard 3.5mm Audio port, ideal for connecting a wide variety of devices including headphones with and without mic, speakers, mic system and so much more.
• Just plug and enjoy premium sound quality with lossless stereo signaltransmission .
