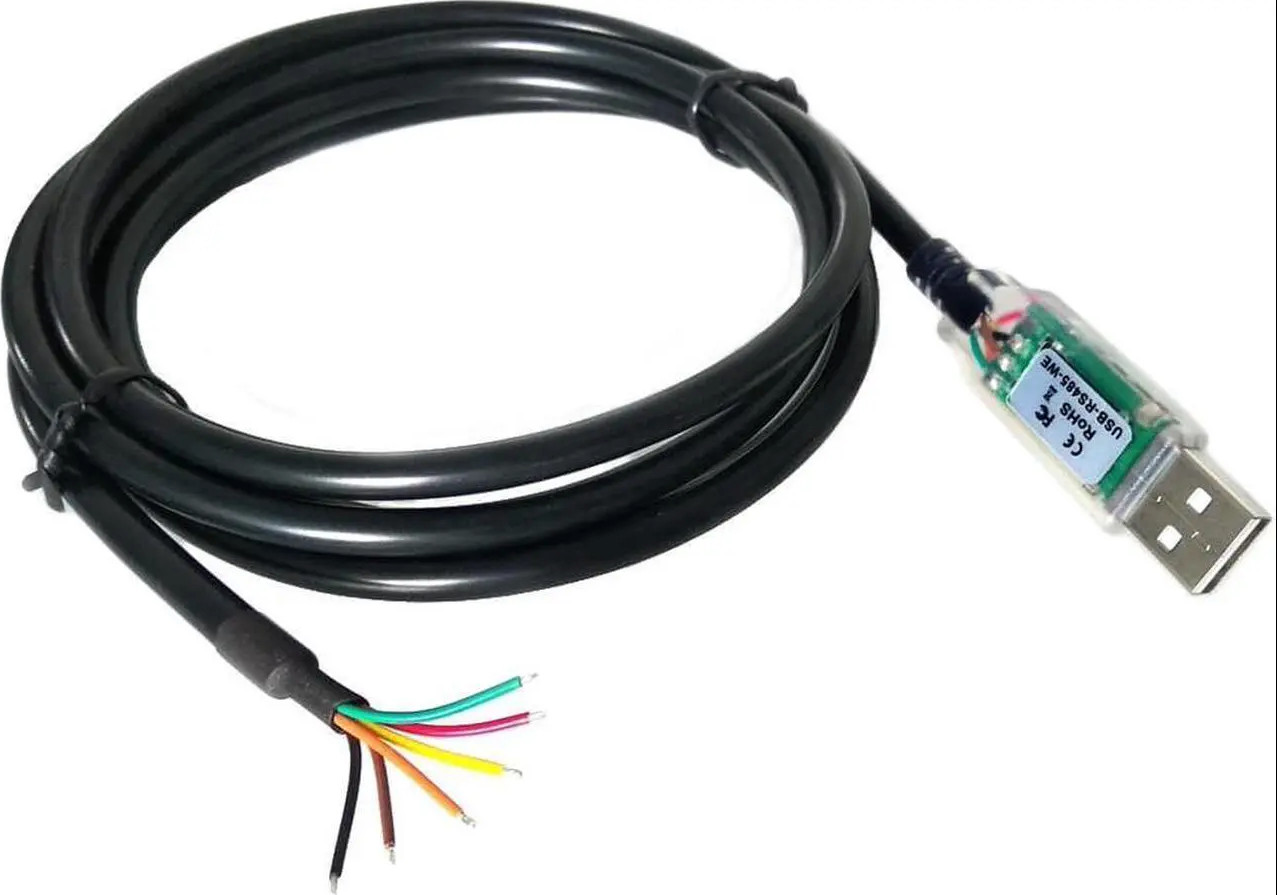

USB-RS485-WE-1800-BTCable - FTDI chip FT232RL built-in. Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
- USB to UART cable with RS485 level signals,6 way, wire end,5m/16.4ft
- Compatible with Windows, Mac OS, Linux, Android
- 6 Way Signal Output: GND-Black, Data- -Yellow, Data+ Orange, 5V power-red, Termintor1-brown, Terminator 2-green.
- Alias:rs485 to usb, usb rs485, sb-rs485-we-5000-bt cable, usb-rs485-we-5000-bt cable, usb rs485 we, rs485 cable, rs485 usb interface, usb to rs485, usb to rs485 adapter, rs485 connector, uart to usb, usb to serial adapter cable, serial cable with wire end pigtail cable, serial cable with bare wire, serial to usb adapter, usb serial adapter
Part No:USB-RS485-WE-1800-BTUSB TO RS485 WIRE END, 1.8M, BLACK, Transparent USB CONNECTOR USB to RS485 serial interface cable - Data Rates:3MBaud
- USB Speed:Full Speed (12Mbps)
- Interfaces:UART
- USB Connector:Type A
- End Connector:Wire ended
- Cable Length:1.8m
- Cable Details:6 core, 5mm UL2464 24 AWG
- Packages:N/A
- Channels:1
- I/O Voltage:RS485
- USB Class:FTDI Drivers
- Virtual Com Port:Yes
- Max Power Output:+5V / 250mA
- FTDI Internal IC:FT232R
- Operating Temperature:-40°C to +85°C
 |
|
