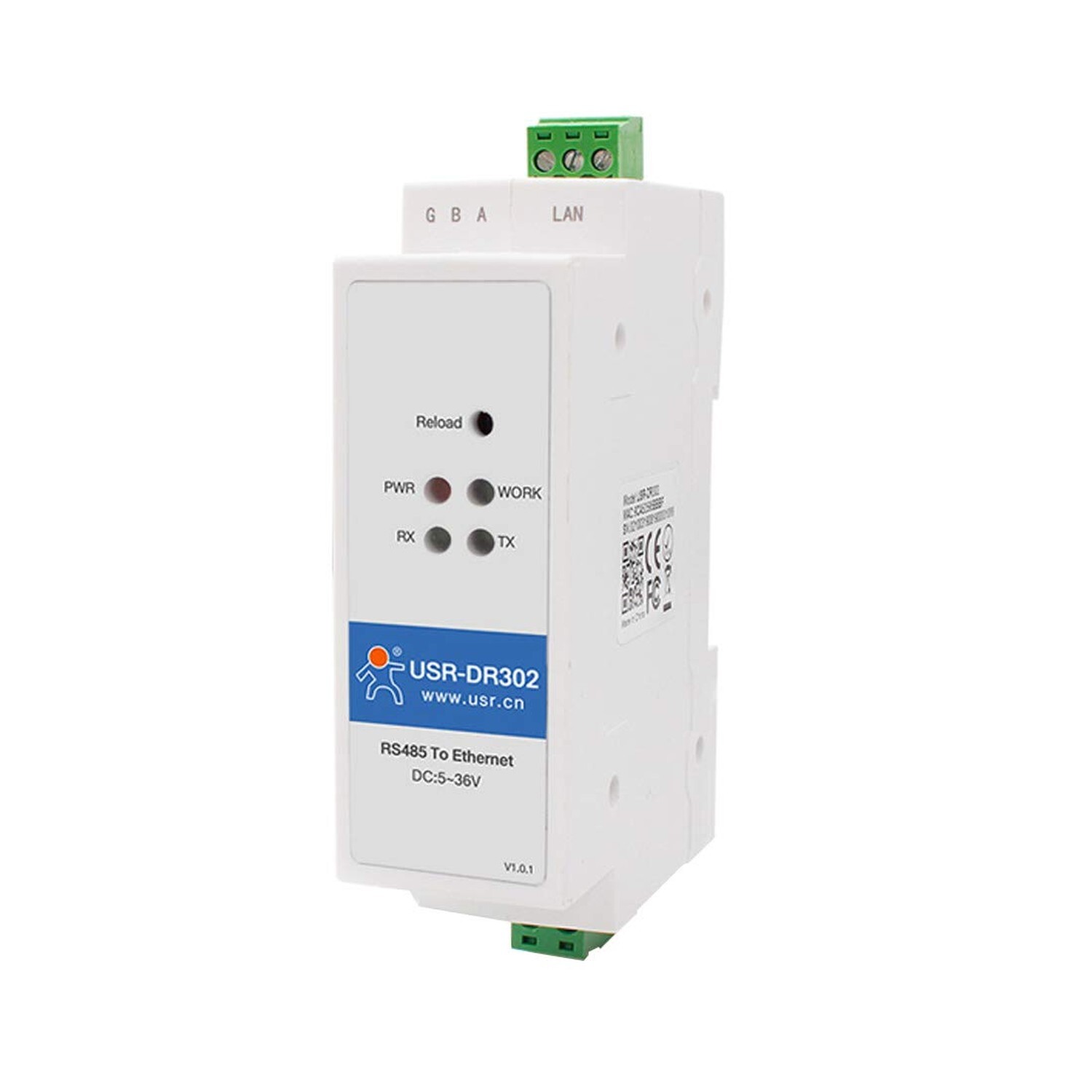

USR-DR302 DIN-Rail Modbus RS485 Serial Port to Ethernet Converter offerirectional Transparent Transmission Between RS485 and RJ45

✓Free 30 Day Returns ✓Free Express Shipping Description:

Features: RS485 port, industrial grade Modbus RTU to Modbus TCP Virtual SerialSoftware: Solve PC software problem because a serial port cannot communicatewith the peripheral network. Network Heartbeat Packet: The serial servermaintains the normal connection to the server by sending a heartbeat packetregularly. PC + ABSC material, portable, low cost, flame retardant V0, ensuresproduct safety. Operating mode TCP Client The USR-DR302 Serial to EthernetConverter will initiate TCP connection to the user-configured destination IPaddress and the serial to Ethernet converter will continuously try toreconnect if TCP connection fails. TCP Server The USR-DR302 Serial to EthernetConverter monitors the defined port and waits for a TCP client connection.Data from the serial device will be transmitted to all those who aresuccessfully connected via a serial to Ethernet converter. UDP Client The USR-DR302 communicates only with the target interface of the target IP address,ensuring the accuracy of data transmission. DR302 can transmit the dataautomatically to the last transferred device after receiving the data, whichis suitable for multi-network devices that need to communicate with the DR301.HTTP Client DR302 supports the function of serial data transmission to thespecified server in the form of HTTPD (GET/POST). Application Power DataNetwork Transmission Small size which is available for narrow space; DIN railmounting, easy to install on the wall; Terminal data of distribution box canquickly be converted into network data, real-time communication, reduce costsefficiently.

Features:

• USR-DR302 Modbus RS485 to Ethernet converter can realize offerirectional transparent transmission between RS485 and Ethernet. Via web-page or software, rs485 to Ethernet Converter can realize serial data and TCP/IP data package transparent transmission.
• Realize offerirectional transparent transmission between RS485 and Ethernet
• DIN-rail mounting: Small size, easy to manage and maintain, cost-effective
• Identity Heartbeat Packet: When 302 works as TCP Client, it can send identity packet packet to TCP server which can be identification.Identity packet can be IMEI code, ICCID code and user editable identity packet
• Advanced protection: Level 4 anti-static,level 3 electrical pulse protection, level 2 surge protection

Product Details:

• Compatible Devices: Computer, Desktop, Server
• Specific Uses For Product: Industrial applications, power grids, servers, PC
• Connector Type: RJ45
• Color: White
• Item dimensions L x W x H: 4.31 x 2.54 inches
• Compatible Devices: Computer, Desktop, Server
• Specific Uses For Product: Industrial applications, power grids, servers, PC
• Connector Type: RJ45
• Number of Ports: 1
• Power Plug Type: No Plug
• Smart Home Compatibility: Not Smart Home Compatible
• Color: White
• Finish: Matte
• Item Dimensions: 4.31 x 2.54 inches
• Package Quantity: 1
• Unit Count: 1.0 Count
• Number of Items: 1
• Brand: PUSR
• Model Number: N35275
• UPC: 788125201631
• Manufacturer: USR
• Mfr Part Number: N35275
• Warranty Description: 1
