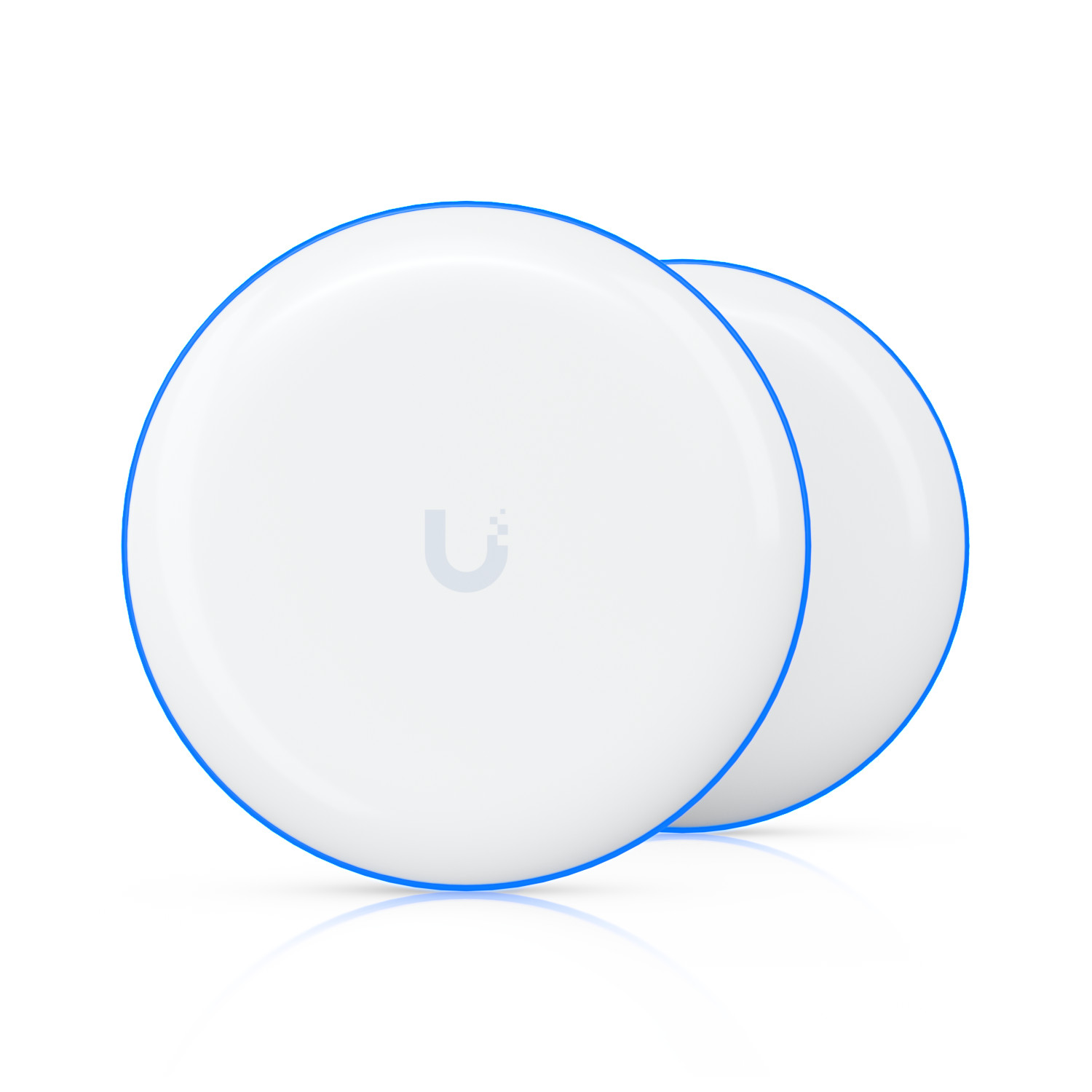

Building-to-Building Bridge Model: UBB Product Description
60 GHz wireless point-to-point bridge with a 5 GHz backup radio.
Key Features
- 500 m (1,640 ft) maximum range
- 60 GHz & 5 GHz dual-radio redundancy
- Includes PoE power adapters
- Built-in LED alignment indicators
Technical Specifications WiFi StandardWiFi 5Coverage Area500 m (1,640 ft)Spatial Streams2Networking Interface(1) GbE RJ45 portPower MethodPoEMax. Power Consumption11WDimensions⌀140 x 90 mm(⌀5.5 x 3.5")Weight376 g (13.3 oz)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature-40 to 70° C (-40 to 158° F)Ambient Operating Humidity5 to 95% noncondensing5 GHz25 dBm60 GHz19 dBm802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)802.11b1, 2, 5.5, 11 Mbps802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Bluetooth (MHz)Worldwide: 2400 - 2483.5 MHzButton(1) Factory resetChannel BandwidthMain radio (60 GHz): 1,080/2,160 MHzBackup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHzEnclosure MaterialUV-resistant LocationsWall, poleOperating FrequencyMain radio (60 GHz): 57 - 66 GHzBackup radio (5 GHz):US/CAU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzWorldwide5150 - 5850 MHzOperating ModesPtPSupported Voltage Range44–57V DCSystemR/G/BWeatherproofingIPX6Wind Loading56 N at 200 km/h (12.6 lbf at 125 mph)Wireless SecurityWPA2 AES 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
