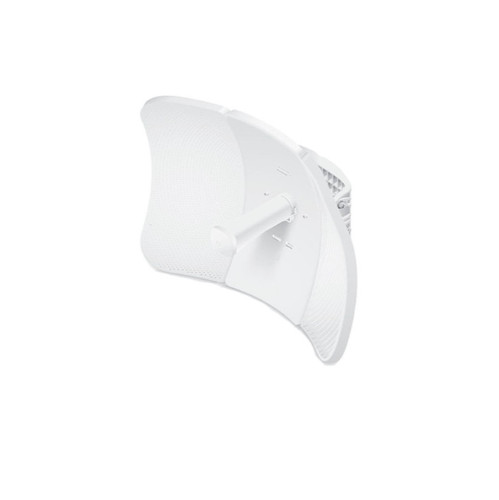

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.

Features:

• Improved Radio Design
• Improved Mounting
• Improved Surge Protection
• Management WiFi Radio/UISP mobile app
• AirOS 8

UISPmobile app forAndroidandiOS

Technical Description

• Dimensions
  • 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
• Weight
  • 1.735 kg (3.825 lb)
• Networking Interface
  • (1) 10/100/1000 Ethernet Port
• Antenna Gain
  • 26 dBi
• Max. Power Output
  • 25 dBm
• Max. Power Consumption
  • 7W
• Power Supply
  • 24V, 0.3A Gigabit PoE Adapter
• Power Method
  • Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature
  • -40 to 70° C (-40 to 158° F)
• Operating Humidity
  • 5 to 95% Noncondensing
• ESD/EMP Protection
  • ± 24 kV Contact / Air
• Shock and Vibration
  • ETSI300-019-1.4
• Wind Survivability
  • 200 km/h (125 mph)
• Wind Loading
  • 550 N @ 200 km/h (123.6 lbf @ 125 mph)

Operating Frequency (MHz)

• USA
  • U-NII-1 - 5150-5250 MHz
  • U-NII-2A - 5250-5350 MHz
  • U-NII-2C - 5240-5725 MHz
  • U-NII-3 - 5725-5850 MHz

Management Radio (MHz)

• US/CA - 2412 - 2462 MHz
