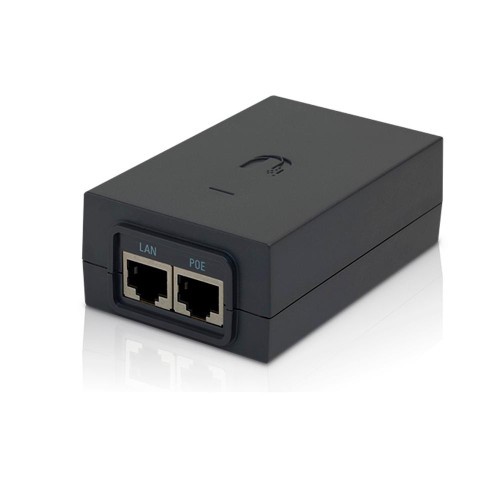

Ubiquiti POE-24-AF5X airFiber 5X PoE Injector 24VDC 24W Gigabit 𝐏𝐑𝐎𝐃𝐔𝐂𝐓 POE-24-AF5X PoE adapter delivers 24VDC at 1.0A with a Gigabit LAN port, shielded RJ45 connections, earth grounding, and integrated surge and ESD protection features. 𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / Accessories
Power Adapters & Chargers 𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 24VDC at 1.0A output
• 24W output power
• Gigabit LAN port
• RJ45 shielded Data IN / PoE sockets
• 4-pair powering
• Difference and common mode surge protection
• 11V data and 60V power clamping protection
• Maximum surge discharge of 1500A
• Peak pulse current of 36A
• AC cable with earth ground
• Designed to help protect connected PoE devices against ESD events 𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 Brand: Ubiquiti
• Part Number: POE-24-AF5X
• Dimensions: 88 × 57 × 33 mm (3.47 × 2.24 × 1.30 in)
• Weight: 158.5 g (5.59 oz)
• Output Voltage: 24VDC @ 1.0A
• LAN Activity Indicator: No
• Gigabit LAN Port: Yes
• Remote Reset Capability: No
• Reset Button: No
• Rated Voltage: 100–240VAC @ 50/60Hz
• Input Current: 0.6A @ 120VAC; 0.4A @ 240VAC
• Inrush Current: <60A peak @ 120VAC; <120A peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% max.
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 4-Pair Powering: Pins 1, 2, 4, 5 (+); Pins 3, 6, 7, 8 (-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% noncondensing
• AC Connector: IEC-320 C6
• Data IN / PoE: RJ45 shielded socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Maximum Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Certifications: CE, FCC, IC, UL 𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / PoE adapters are designed to power compatible Ubiquiti PoE devices. Manufacturer documentation identifies airFiber among the supported product families and advises verifying individual device PoE specifications for compatibility.
