Ubiquiti UniFi Device Bridge Switch
UDB-Switch • Brand New • Factory Sealed • IN HAND • Ships Within 1 Business Day
The UniFi Device Bridge Switch is a compact 8-port PoE+ switch with built-in WiFi 7 bridging. Connect PoE cameras, access points, and other devices anywhere on your property — no Ethernet cable run required. The switch wirelessly uplinks to your existing UniFi network over WiFi 7, then provides wired PoE+ to all 8 ports.
Perfect for deploying UniFi cameras, phones, or access points in locations where running cable is impractical. Plug it in, adopt it, and it's on your network wirelessly in under a minute.
Requires a UniFi Cloud Gateway (Dream Machine, Dream Router, UXG, etc.) with WiFi Auto-Link enabled.
Key Features • Built-in WiFi 7 receiver — wirelessly uplinks to your UniFi network on 5 GHz and 6 GHz bands • 8 PoE+ ports — (1) 10 GbE + (7) 2.5 GbE, all with PoE+ • Up to 5.8 Gbps wireless throughput on 6 GHz • UniFi WiFi Auto-Link — automatic discovery and adoption, plug-and-play setup • Works as a standard unmanaged PoE switch with wired uplink too • 35W PoE budget with included 60W adapter (up to 185W with optional 210W adapter) • Compact desktop or wall-mountable form factor • Built-in status display for at-a-glance monitoring • Ideal for camera deployments, outbuildings, garages, and anywhere cable can't reach Technical Specifications Model UDB-Switch Ports (1) 10 GbE RJ45 + (7) 2.5 GbE RJ45 — all PoE+ WiFi Standard WiFi 7 (802.11be) • 5 GHz + 6 GHz Max Wireless Speed 6 GHz: up to 5.8 Gbps • 5 GHz: up to 4.3 Gbps PoE Budget 35W (60W adapter included) • Up to 185W (with optional 210W adapter) PoE Standard 802.3at (PoE+) — up to 30W per port Switch Type Unmanaged (with or without WiFi uplink) Display Built-in status display Mounting Desktop • Wall mount (accessories included) Power 60W adapter included (optional 210W adapter sold separately) Operating Temp -30 to 40°C (-22 to 104°F) Requires UniFi Cloud Gateway with WiFi Auto-Link • UniFi Network 10.0.156+ In The Box • UniFi Device Bridge Switch (UDB-Switch) • 60W power adapter • Mounting accessories Shipping Options Service Speed Cost to You USPS Ground Advantage 2–5 business days +$5.00 UPS 2nd Day Air 2 business days +$20.00
All orders ship within 1 business day. Weekend orders ship Monday.

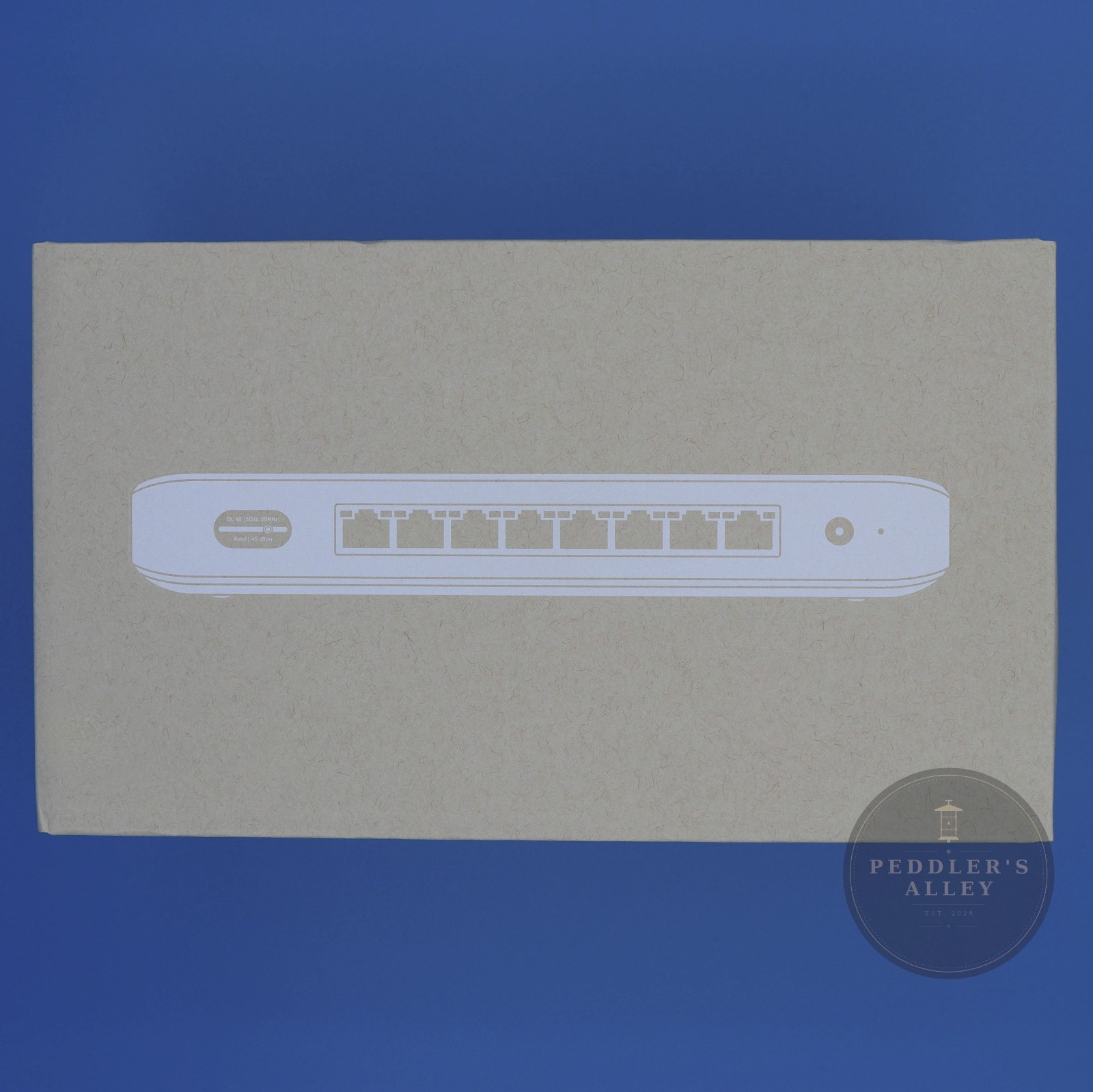

Photo note: Box images shown against a blue background are photos of the actual sealed product you will receive. Opened units against the blue background are just for your reference, you will receive a brand new, sealed box. If stock photos are included, they are against a white background, and are included to show the product outside the box for reference only. Your order ships brand new, factory sealed.
Brand new, factory sealed, never opened.
Ships within 1 business day • Smoke-free home • Thank you for shopping with Peddler's Alley!
