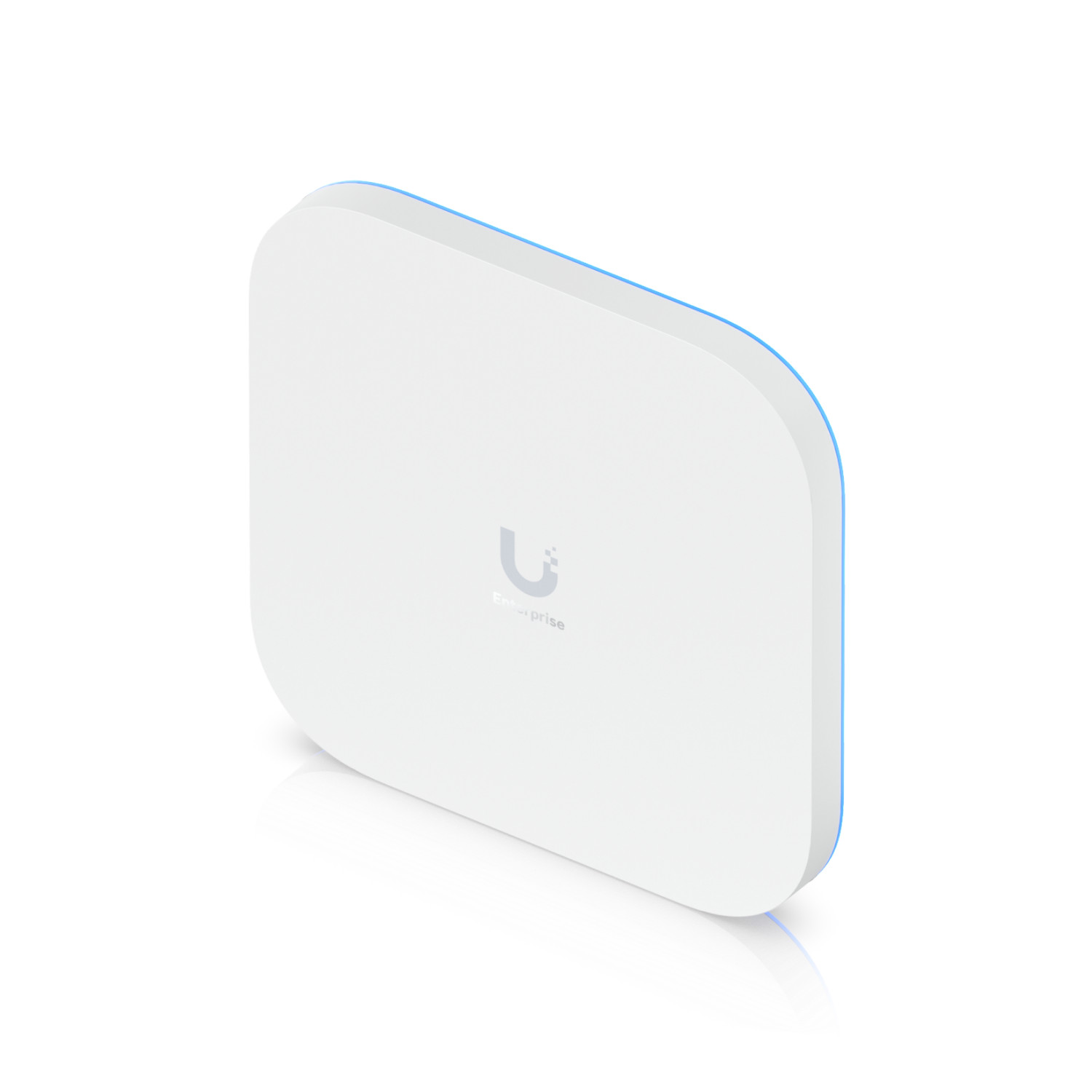

Ubiquiti UniFi E7 Enterprise 7 WiFi 7 Tri-Band Access Point 10GbE PoE++
UPC: 810084695227
MPN: E7-US
Brand: Ubiquiti
Type: Wireless Access Point
Model: UniFi Enterprise 7
Maximum Wireless Data Rate: 20.7 Gbps
Maximum LAN Data Rate: 10 Gbps
Number of LAN Ports: 2
Unit Quantity: 1
Unit Type: Unit
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- UniFi Enterprise 7
- UniFi E7
- E7
- E7-US
- E7-EU
- E7-UK
- E7-IN
- E7-EG
- 810084695227
- E7-Campus
- E7-Campus-US
- E7-Audience
- E7-Audience-US
- U7-Pro-Max
- U7-Pro
- U6-Enterprise
Deployment & Controller Requirements
The Ubiquiti UniFi Enterprise 7 (E7) is a premium, centrally-managed wireless access point designed for high-density enterprise environments. It requires a UniFi Network Controller (such as a hardware console or cloud-hosted instance) for configuration, management, and monitoring. This unit supports seamless integration into existing UniFi ecosystems and operates without the need for recurring licensing fees.
Power & Interface Specifications
This access point demands robust power delivery, requiring an 802.3bt PoE++ compliant switch or power injector (42.5-57V DC) capable of supplying up to 43W of maximum power consumption. Network connectivity is provided by a primary 10 GbE RJ-45 uplink port to eliminate bottlenecks, alongside a redundant 1 GbE RJ-45 port for network and power failover. Wall and ceiling mounting brackets are included and are fully compatible with the UniFi Pro Mount system.
Wireless Capabilities & RF Performance
Powered by the latest WiFi 7 (802.11be) standard, the E7 delivers an astonishing maximum aggregate throughput of up to 20.7 Gbps across its tri-band configuration. It features a 6 GHz band (4x4 MU-MIMO, up to 11.5 Gbps), a 5 GHz band (4x4 MU-MIMO, up to 8.6 Gbps), and a 2.4 GHz band (2x2 MU-MIMO). With 10 total spatial streams, a dedicated scanning radio, and Automated Frequency Coordination (AFC), it effortlessly supports over 1,000 concurrent clients across a 2,000 sq ft coverage area.
