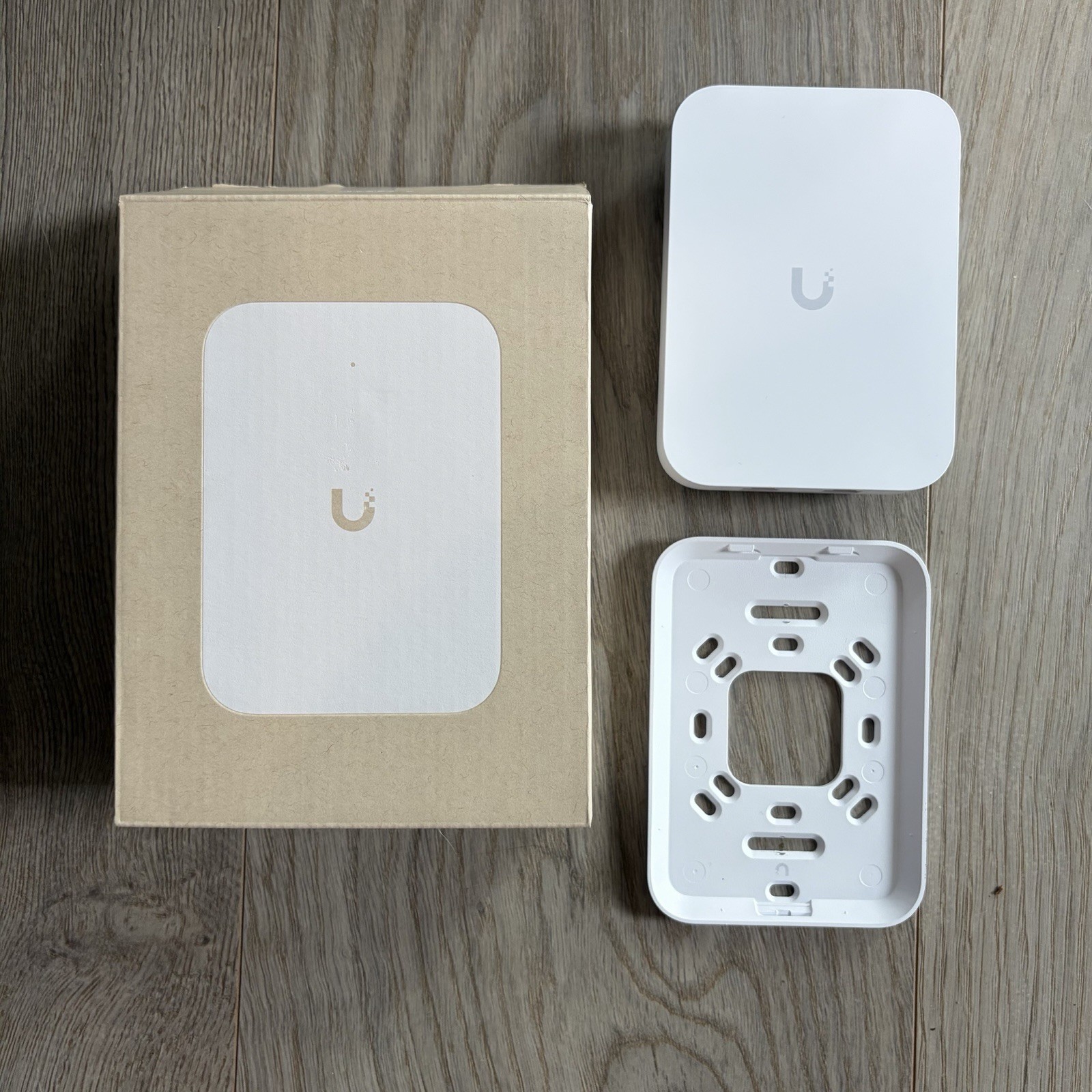

Condition Notes:These units are in New/Open Box condition and have not been used in a production environment. Please understand that you will only receive the access point, the back mounting plate and the empty box as shows in the first picture. There are no additional packaging materials, screws, or additional items included with this sale. These are surplus from a project but the screws/packaging material that was originally included were tossed out. So only the access point, wall plate and empty box are included in this sale!
Dimensions137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")WiFi StandardWiFi 7Spatial Streams4Coverage Area115 m² (1,250 ft²)Max. Client Count200+Uplink2.5 GbEMountingWall(Metal Wall Mount Included)Power MethodPoEPoE+ (Required for PoE output)MIMO5 GHz2 x 2 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)Max. Data Rate5 GHz4.3 Gbps (BW240)2.4 GHz688 Mbps (BW40)Antenna Gain5 GHz8 dBi2.4 GHz4 dBiMax. TX Power5 GHz24 dBm2.4 GHz23 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Wireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓Max. Power Consumption13W (Excluding PoE output)Supported Voltage Range42.5–57V DCNetworking Interface(3) 2.5 GbE RJ45 portsWeight400 g (14.1 oz)ManagementEthernetBuilt-In Switch(1) PoE+ input and (1) PoE outputEnclosure MaterialPolycarbonate, aluminum alloyMount MaterialAluminum alloyLEDsSystemWhite/BlueChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)Ambient Operating Temperature-30 to 40° C (-22 to 104° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsCE, FCC, IC, SRRC, Anatel: 03909-25-08356Application RequirementsUniFi NetworkVersion 9.0.114 and laterMobile AppiOS™ version 10.20.2 and laterAndroid™ version 10.21.7 and later
