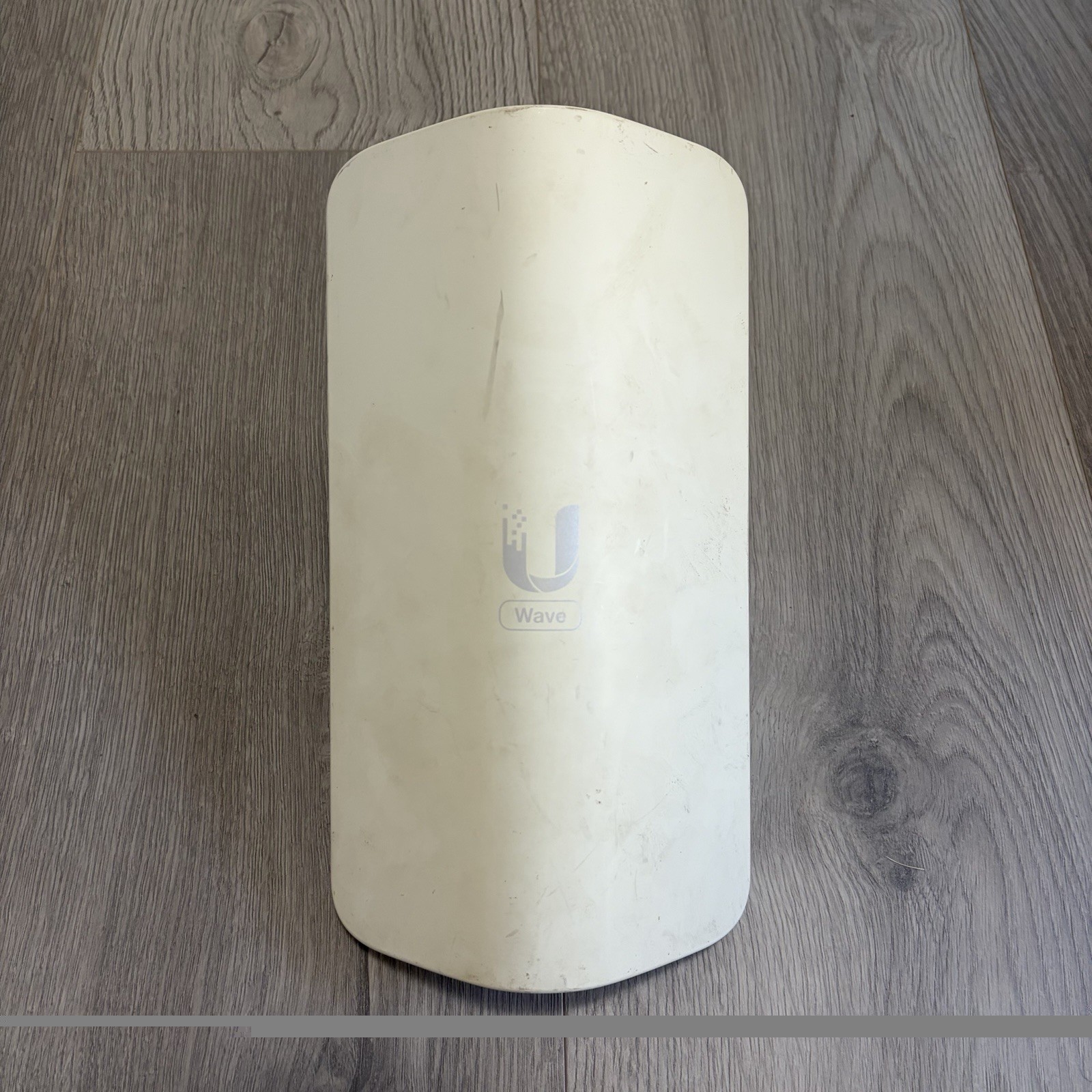

Condition Notes:These access points are in used condition and will show typical signs of outdoor use such as slight fading from the sun, blemishes to the exterior casing and other marks/imperfections from being mounted in an outdoor environment. All units have been engineer tested and reset to factory default settings to ensure easy adoption into existing deployments.
Dimensions284 x 156 x 76 mm(11.2 x 6.1 x 3")Weight1.3 kg (2.9 lb)Enclosure MaterialAluminum alloy, UV stabilized polycarbonateMount MaterialStainless steel, UV stabilized polycarbonatePole Mount Diameter35 to 60 mm (1.4 to 2.4")Wind Loading87 N at 200 km/h (20 lbf at 125 ARM® Cortex®-A53 at 1.4 GHzMemory512 MBNetworking Interface(1) 1/2.5 GbE RJ45 portMax. Power Consumption24WPower MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC onlySupported Voltage Range44–54V DC22–27V DCPower Supply48V DC, 0.65A, 2.5 GbE PoE adapter (Included)GPS✓Buttons(1) Factory resetLEDsPowerFlashing white: bootup in progressWhite: not connected to UISP applicationBlue: connected to UISP applicationFlashing blue: locate in progressBlue/white: firmware upgrade in progressEthernetFlashing blue: Ethernet traffic detectedGPSBlue: receiving at least(4) GPS satellite signalLinkBlue: 60 GHz linkWhite: 5 GHz linkAmbient Operating Temperature-40 to 60° C (-40 to 140° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsFCC, IC, CEOperating ModesPtMP access pointUbiquiti Specific FeaturesDiscovery Protocol✓ServicesUISP✓Ping Watchdog✓NTP Client✓SNMP✓ToolsCable Test✓Wave AI✓Wave Technology✓UtilitiesAntenna Alignment✓Ping✓Site Survey✓Speed Test✓Traceroute✓Discovery Utility✓NetworkBridge ModeApplication RequirementsUISP webVersion 2.2.11 and laterUISP mobile iOS™Version 2.25.1 and laterUISP mobile Android™Version 2.27.5 and laterTotal Throughput5 GbpsSupported Clients31Max. RangeConnecting to a Wave Pro: up to 6 km (3.7 mi)Connecting to a Wave Long-Range: up to 6 km (3.7 mi)Connecting to a Wave Nano: up to 4 km (2.5 mi)Connecting to a Wave Pico: up to 0.9 km (0.6 mi)EncryptionWPA2-PSK (AES)Operating FrequencyWorldwide57–71 GHzChannel Bandwidth2160, 1080, 540 MHzOperating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHzModulation16QAM, QPSKAntenna Gain20 3 dB 90°Elevation: 3 dB 7°Electrical Downtilt0°WiFi Standard802.11ax (WiFi 6)Operating FrequencyUS/CAU-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide5150 - 5875 MHzChannel Bandwidth20, 40, 80 MHzModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)Antenna Gain13.5 6 dB 90°Elevation: 6 dB 25°Cross-Pol Isolation10 dBElectrical Downtilt0°
