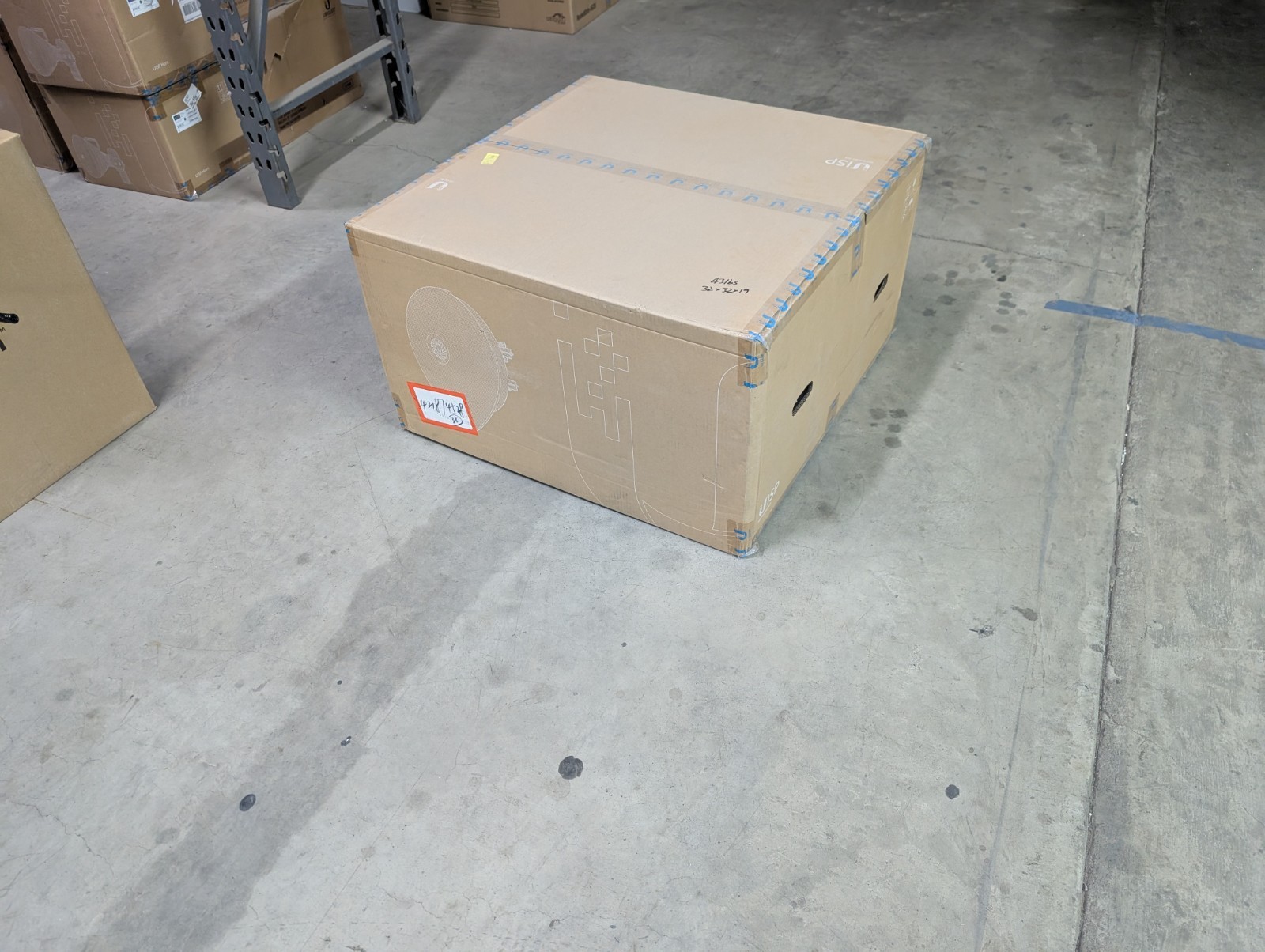

New in Box, in Original PackagingTechnicalInstallation GuideMechanicalDimensions779 x 664 x 383 mm (30.68 x 26.14 x 15.06")WeightWithout mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)Enclosure materialUV stabilized polycarbonate, steelMount materialGalvanized steelMountingPrecision alignment kit (included)
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15")Wind loading422 N at 200 km/h (94.86 lbf at 125 mph)HardwareProcessorQuad-Core ARM® Cortex® A72 at 1.6 GHzMemory2 GB DDR4Networking interface(1) GbE RJ45 port
(1) 1/10G SFP+ portMax. power consumption31.2WPower methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC onlyPower supply48V DC, 0.65A Gigabit PoE adapter (Included)Supported voltage range44–54V DC
22–27V DCGPSYesRF connectionsInternalButtonFactory resetAmbient operating temperature-40 to 55° C (-40 to 131° F)Ambient operating humidity5 to 95% noncondensingCertificationsFCC, IC, CE, terragraphNDAA CompliantYesSoftwareOperating modePtP onlyServicesUISP, ping watchdog, NTP client, system logUtilitiesAntenna alignment tool, discovery utility, ping, speed testManagement applicationUISP web: Version 1.4.3 and later
UISP iOS™ and Android™: Version 2.19 and laterSystemMax. throughput5 GHz: 866.6 Mbps
60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)Max. range4 kmEncryptionWPA2-PSK (AES)RFOperating frequency*57–66 GHz
* Depends on regulatory region.Channel bandwidth2160 MHz/4320 MHz (With channel bonding enabled)Operating channels58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.PolarizationVertically linearBeamwidthAzimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°Back-Up RFOperating frequency*
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHzWorldwide5150–5875 MHz
*Depends on regulatory region.Channel bandwidth20/40/80 3 dB 5°
Elevation: 3 dB 5°LEDsPowerFlashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP consoleEthernetFlashing blue: ethernet activityGPSBlue: receiving at least (4) GPS satellite signals60GBlue: active connection5GBlue: active connection
