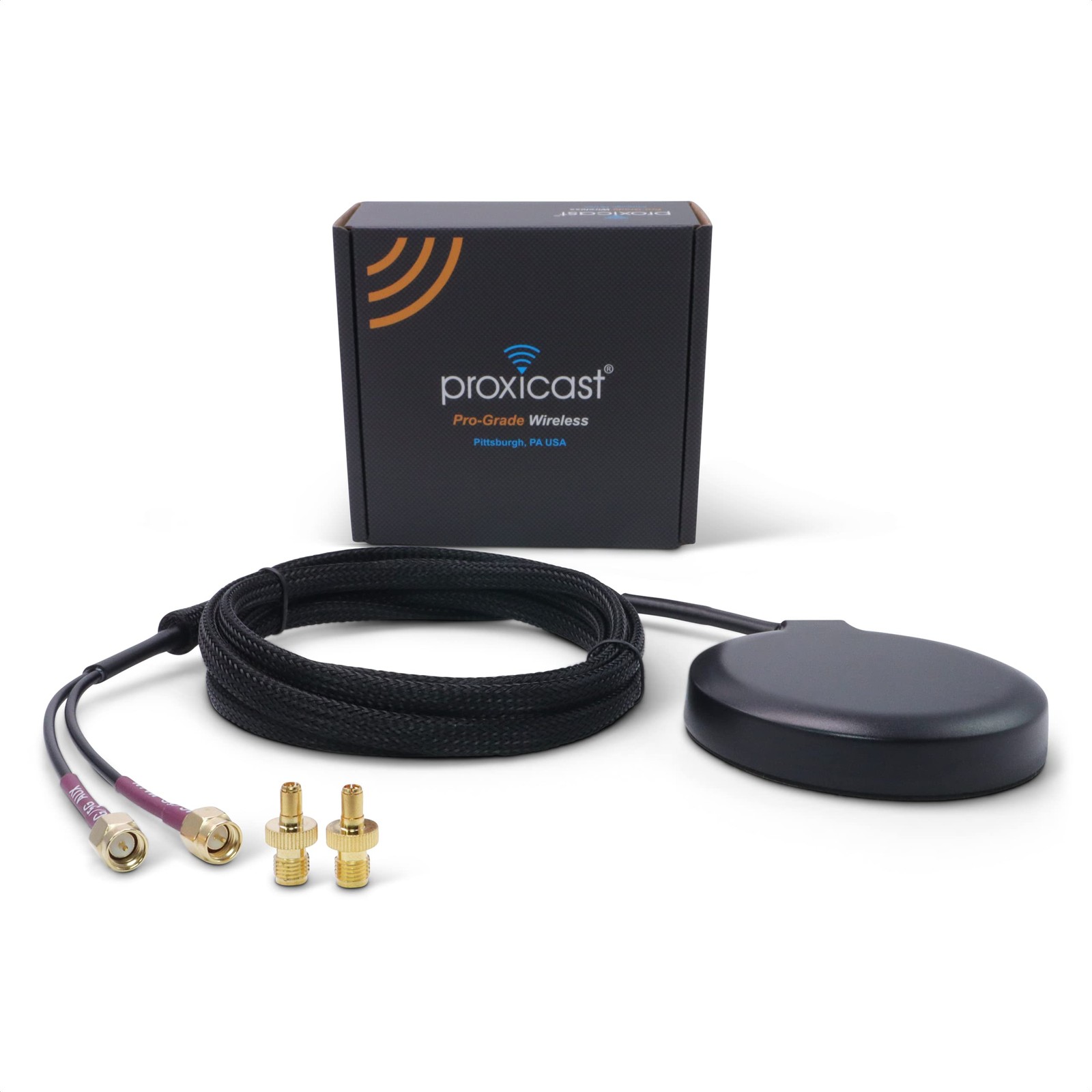

This extremely low profile (< 0.6 inches tall) fixed mount omni-directional antenna provides up to 2.5 dBi of gain and works on all 4G & 5G cellular frequency bands worldwide (all CDMA, GSM, WCDMA/UMTS and LTE carriers).
Includes 3M adhesive pad and strong internal magnet for flexible mounting options. IP67 waterproof.
Similar in gain to rubber-duck style antennas often included with cellular modems, this antenna is designed for M2M applications such as vending machines, meter housings, equipment sheds, or other locations requiring an inconspicuous low-profile external antenna that can be placed in a more favorable location. Can also be vehicle mounted for buses, vans, trucks or other mobile installations.
Dual integrated SMA male plug connectors mate with SMA female jacks on MIMO capable modems, routers, etc. Includes 2 SMA to TS9 adapters for TS9-based hotspots.
This antenna performs best when installed on a horizontal metal surface of at least 8x8 inches.
Key Specifications
• Frequencies: 698~960 & 1710~6000 MHz
• Impedance: 50 ohms
• Peak Gain: 2.5 dBi
• Radiation Pattern: Omni
• Polarization: Linear
• Coax Cable: 6.5 ft (2m) low-loss LMR100
• Connectors: SMA Male + TS9 Adapters
• Operating Temp: -40C to +85C
• Radome Material: ABS
• Ingress Protection: IP67
• Height: 0.6 inches / 15 mm
• Diameter: 3.15 inches / 80 mm
BUY WITH CONFIDENCE: USA-based has been designing and building innovative electronic products since 2000 -- Includes 12 month & US-based Technical Support.
Works on any 4G / 5G cellular network such as Verizon, AT&T, T-Mobile and more. This is *NOT* a TV antenna
with any Broadband Router or Modem with SMA Antenna Jacks from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Multi-Tech, Pepwave, , Sierra and others
with any Mobile Hotspot with TS9 Antenna Jacks such Nighthawk M6 / MR6500, M5 / MR5100, M1 / MR1100, Velocity 2, Verizon Jetpack 8800L and others
Dual Antenna MIMO Design Improves Performance - Flexible Magnetic & Adhesive Mounting Options
0.6 inches high x 3.15 inches diameter - SMA Male connector + TS9 Adapter with 6.5 ft coax pigtail
