Description:
Unbranded

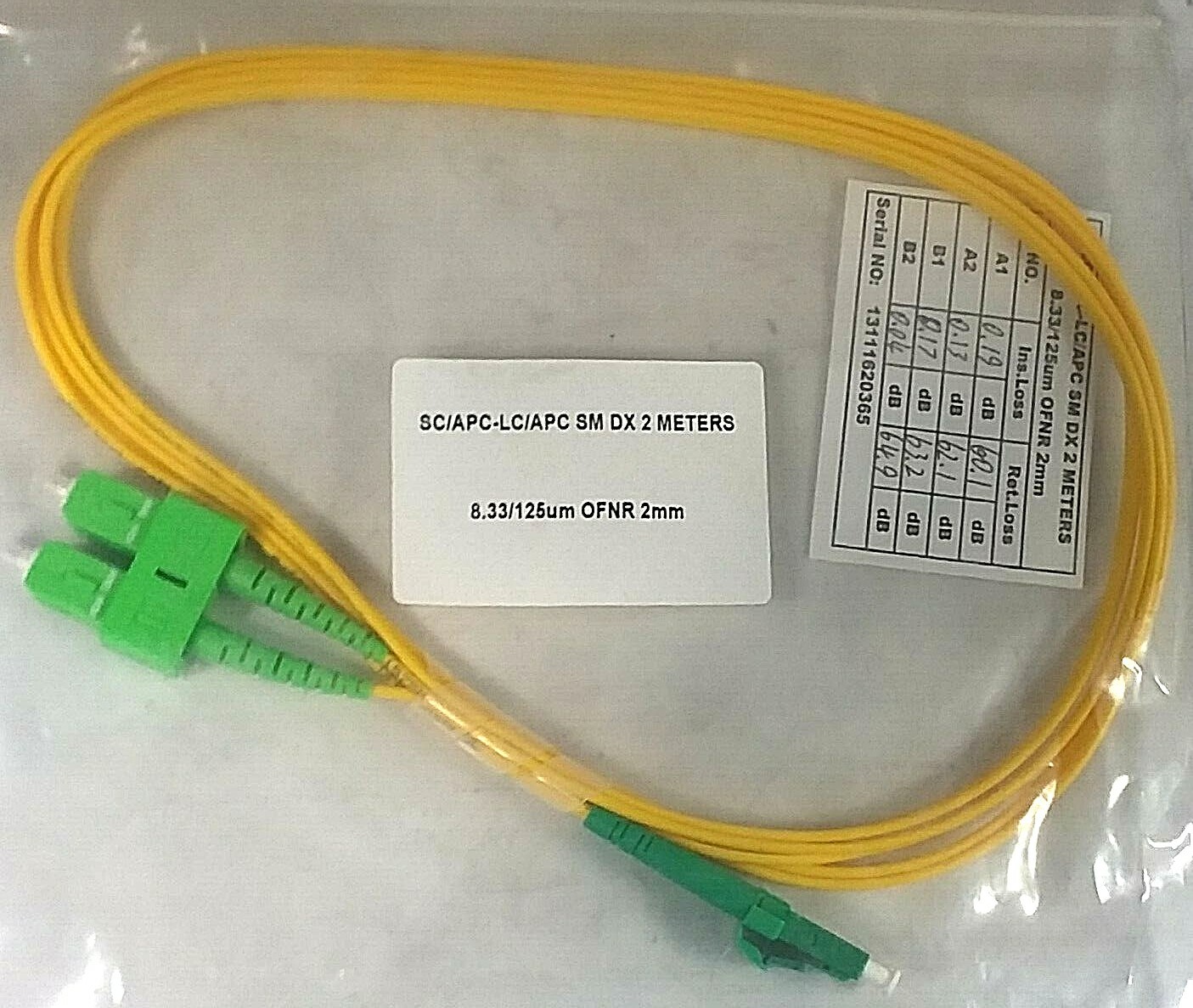

Yellow Jumper, SM DX Zip, 2mm width; OFNR; BIF; SC/APC-LC/APC; 2meters in length;
SM DX Fiber- Singlemode Duplex fiber; Singlemodecable features a 9-micron glass core.Duplexcable consists of twofibers, usually in a zipcord (side-by-side) style. Useduplexmultimode orsinglemode fiberoptic cable for applications that require simultaneous, bi-directional data transfer. ..
BIF- Bend Insensitive Fiber-Opticalfiberis sensitive to stress, particularlybending. ... An optical "trench" - the term used for a ring of lower index of refraction material - was built into thefiberto basically reflect the lost light back into the core of thefiber. This particular fiber holds up better under stress. As a result, it holds up much better under stress and is able to be bent or stapled inplace. This makes it very good at applications as part of the fiber framework in buildings, etc...
OFNR- Optical Fiber Nonconductive Riser- OFNRrefers to thefiberrating of thecablejacketing.OFNRis the designation given by the National Fire Protection Association (NFPA) to interiorfiber-optic cableswhich contain no electrically conductive component, and which are certified for use in Riser applications.
SC/APC-LC/APC Connectors:
SC/APC- SCis a type offiber optic connectorwith snap (push-pull coupling) coupling type and a 2.5 mm diameter ferrule, which is popularly used in single mode duplex system for its high performance and accurate alignment.SC APC connector is commonly used in applications that are much more sensitive to return loss, and requires for high precision signal, such as FTTX (Fiber To The X), video delivery through RF signal, WDM (wavelength division multiplexing) applications and analogue equipment like CCTV.
LC/APC-LC or Lucent Connectors are about half the size of SC connectors, 1.25mm diameter ferrule. APC stands forAngled Polished connector, which prevents back-reflections. It is usually used in analog fiber optic system equipment,such as CATV or Satellite. These connectors are green in color over jacketed boots.
*Note- This is a new item. Please take a look at the pictures of the item to make sure it is the product you are wantingto buy. If you have any questions feel free to contact us for more information. Thank you for your business!
Part #SC/APC-LC/APC SM DX 2meters
