Item Overview

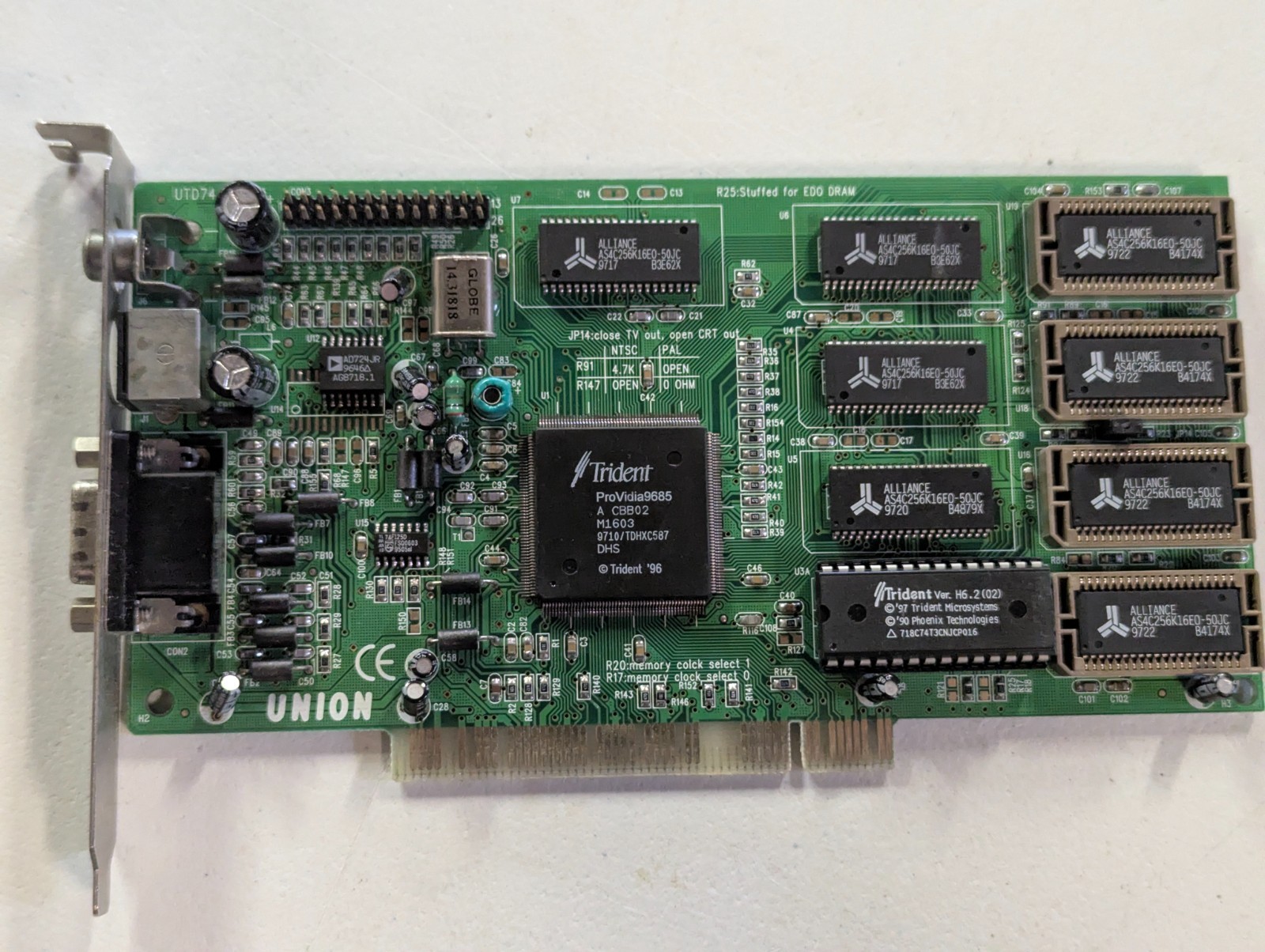

Union TD9685 PCI graphics card with Trident ProVidia 9685 chipset, EDO memory, and VGA, S-Video, and composite RCA outputs. Intended for compatible vintage PCI desktop systems. No powered testing has been Union
Chipset Manufacturer: Trident
Chipset/GPU Model: Trident ProVidia 9685
MPN: TD9685
Interface: PCI
Memory Size: 4 MB
Memory Type: EDO RAM
External Connectors: VGA DE-15, S-Video mini-DIN, Composite RCA
Cooling: None/video card only
Power Cable Requirement: Not Required
Country of Origin: China
Visible Markings
Brand Marking: UNION
Board Marking: UTD74
Sticker ID: TD9685 P12 9707 012743
Country Marking: MADE IN CHINA
GPU Marking: Trident ProVidia9685 A CBB02 M1603 9710/TDHXC587 DHS Trident '96
Memory IC Marking: ALLIANCE AS4C256K16E0-50JC
Memory Date/Batch Markings: 9717 B3E62X, 9720 B4879X, 9722 B4174X
BIOS Label: Trident Ver. H6.2(02)
Memory Configuration Text: R25: Stuffed for EDO DRAM
Jumper Text: JP14: close TV out, open CRT out; NTSC; PAL; 4.7K; OPEN; 0HM
Certification Marking: CE
Analog Devices IC Marking: AD724JR 9646 AG8718.1
Label Text: GLOBE 143181S
Rear PCB Marking: 0-946V-0 940102
Connector Details
VGA Port: 15-pin DE-15 female
S-Video Port: Mini-DIN TV-out style connector
Composite Port: RCA jack
Included
Included Item: One PCI graphics card only
Not Included: Drivers, cables, manuals, accessories, or computer system
Visual Inspection / Condition
Cleaned and visually inspected PCI graphics card with light handling wear, contact wear on the edge connector, minor residue on the bracket and ports, and no visible PCB cracks, burnt areas, broken bracket tabs, or damaged external connectors observed in the photos. No powered testing has been performed.
Important Information
Sold as-is. Item may be non-functional. Please review photos and verify part number, connector style, dimensions, driver availability, and system compatibility before purchase.
