Universal 2-lamp CCFL Inverter Board for LCD panelsOne piece brand new universal CCFL inverter high voltage board for 2 lamp LCD repair. Includes 4-wire harness as shown. Ideal for use with 19” or smaller displays or lamps that measure around 400mm or less in length. Size: 12 cm x 2.6 cm Input Working Voltage: 10-25 VDCOutput Voltage: 650~900VrmsOutput Current: 2.5~7mA Inverter 6 Pin Connector Assignment:1 – VIN: power supply (10-25VDC) – RED WIRE2 – VIN: power supply (10-25VDC)3 – ENA (enable, switch on/off) switch signal – YELLOW WIRE4 – ADJ (dimming function / brightness control) - YELLOW WIRE5 – GND (Ground wire)6 – GND (Ground wire) – BLACK WIRE IMPORTANT: Please be sure to insert the wire harness as shown in the photos. The Red (positive) should be on the left when inserted. The harness can be inserted with Black wire on the left which could cause damage. NOTE: Pin 3 ENA needs to have a positive DC voltage applied and it is possible to connect it to pins 1 & 2 directly. To operate the lamp at maximum brightness pin 4 needs negative 0V and can be connected to pins 5 & 6. Wire Harness:Red Wire= Input (pin #1)Yellow Wire = Switch on/off (pin #3)Yellow Wire = Dimming / brightness (pin #4)Black Wire = Ground (pin #6) Universal 2-lamp CCFL Inverter Board for LCD panels

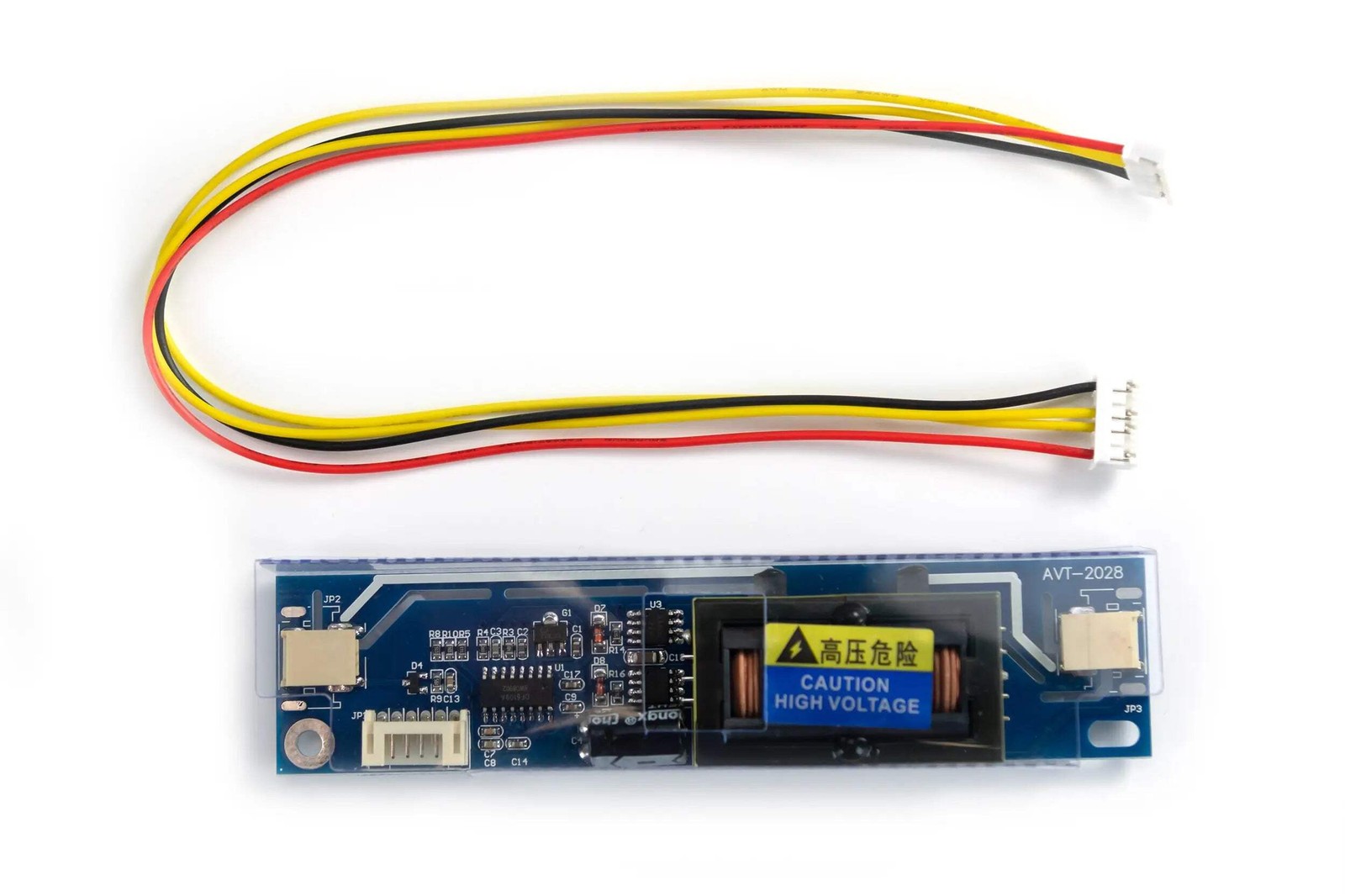

One piece brand new universal CCFL inverter high voltage board for 2 lamp LCD repair. Includes 4-wire harness as shown. Ideal for use with 19” or smaller displays or lamps that measure around 400mm or less in length.
Size: 12 cm x 2.6 cm
Input Working Voltage: 10-25 VDC
Output Voltage: 650~900Vrms
Output Current: 2.5~7mA
Inverter 6 Pin Connector Assignment:
1 – VIN: power supply (10-25VDC) – RED WIRE
2 – VIN: power supply (10-25VDC)
3 – ENA (enable, switch on/off) switch signal – YELLOW WIRE
4 – ADJ (dimming function / brightness control) - YELLOW WIRE
5 – GND (Ground wire)
6 – GND (Ground wire) – BLACK WIRE
IMPORTANT: Please be sure to insert the wire harness as shown in the photos. The Red (positive) should be on the left when inserted. The harness can be inserted with Black wire on the left which could cause damage.
NOTE: Pin 3 ENA needs to have a positive DC voltage applied and it is possible to connect it to pins 1 & 2 directly. To operate the lamp at maximum brightness pin 4 needs negative 0V and can be connected to pins 5 & 6.
Wire Harness:
Red Wire= Input (pin #1)
Yellow Wire = Switch on/off (pin #3)
Yellow Wire = Dimming / brightness (pin #4)
Black Wire = Ground (pin #6)
× × × × × × × ×
