Part#: align="left">Overview:

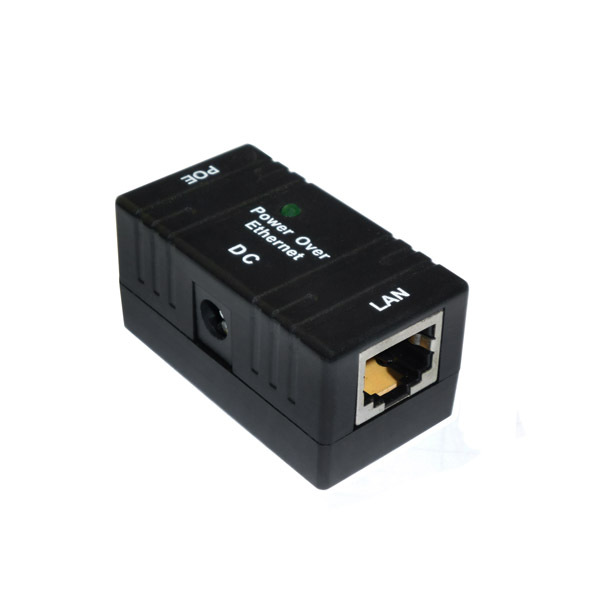

The PoE adapter allows anEthernet-enabled device to be placed 328ft away from a power outlet. Ethernet terminals such as wireless LAN access point, IP phone, and web camera are powered remotely. It is especially design for outdoor networking facility and low port density installations.

Features:

• Eliminate the needs to place Ethernet-enabled device near the power outlet

• IEEE 802.3at/af compliant

• Support10/100M BASE-TX

Specification:

• Category 5 pins: Pins 1 & 2, 3&6 for data. Pins 4 & 5, 7&8 for power

• Ethernet Cable: Data rate: 10/100Mbps TIA/EIA5888-2. Connector: RJ-45

• Operating Temperature: 0ﾟto 50

• Storage Temperature: -40ﾟto 70ﾟ

• Operating Humidity: 10% to 80% RH

• Storage Humidity: 5% to 90% RH

• Certification: FCC/CE

• Input: DC 2.1*5.5mm female

• Input Voltage: 3V~ 48V. 1A Max

• Output Voltage: 3V~ 48V. 1A Max

• Dimensions (LxWxH):49mmx26mmx24mm (1.93"x1.02"x0.94")

• AC adapter or DC injector required to operate. (sold separately)

Package Content:

• PoE DC Injector (Bulk pack) (AC adapter not included)

Warranty: 1 year
