Universal Double 540mm LED Backlight 10-24" LCD Monitor Repair & CCFL Upgrade *Plazmo Exclusive* New and Improved - 50% Brighter with more LED chips per inch than the competition! This is an extra wide, extra bright universal LED kit that includes 2 high brightness LED strips, a DC-DC LED driver, and a wire harness. Our strips have more chips per inch than the competition! The LED strips can be easily trimmed in designated increments every 3 LEDs, to fit any size LCD from 10.4"-24". This is known as a cut-to-fit model. This LED bar can be used for LED replacement or CCFL conversion. LED Strip Specifications:• LED Strip Dimensions: 540x6.3x2mm (LxWxH)• LED Chip Quantity: 192• LED Chip Size: 3528• Connector: 2 pin JST• Color temp: 8500k-11000k• Input Voltage: 9V• Input Current: 1A• Power: 20W• Wire: 1007 26#, 300mm length LED Driver/Inverter Specifications:• Dimensions: 7cm x 4cm• Input Voltage: 10-30V DC• Output Current: 2A• Output Voltage: 7.5-9.6V DC• Dimmable, connect to the ADJ pin to allow dimming.• Pin assignments definition, from Black to White in the picture: 1. V IN, 9-30V (white) 2. ON/OFF, 0-0.5V=OFF, 1.5V-5.0V=ON (blue) 3. ADJ Dimming/Brightness, 0V-5V, 0V=Max Brightness, 5V=Min Brightness(blue) 4. GND Ground (black) Make sure you have an appropriate power supply before installing. The driver is expecting analog DC voltage. This LED bar is suitable for both LED and CCFL backlight replacements. This product is commonly used for replacing backlights in a variety of different LCD panels found in gaming machines, POS, ATM and many other applications. NOTE: Plazmo does not have user manuals because every model of LCD power supply board is different. The customer must have some technical expertise to identify the power source on the monitor power supply board. Universal Double 540mm LED Backlight 10-24" LCD Monitor Repair & CCFL Upgrade
*Plazmo Exclusive* New and Improved - 50% Brighter with more LED chips per inch than the competition!

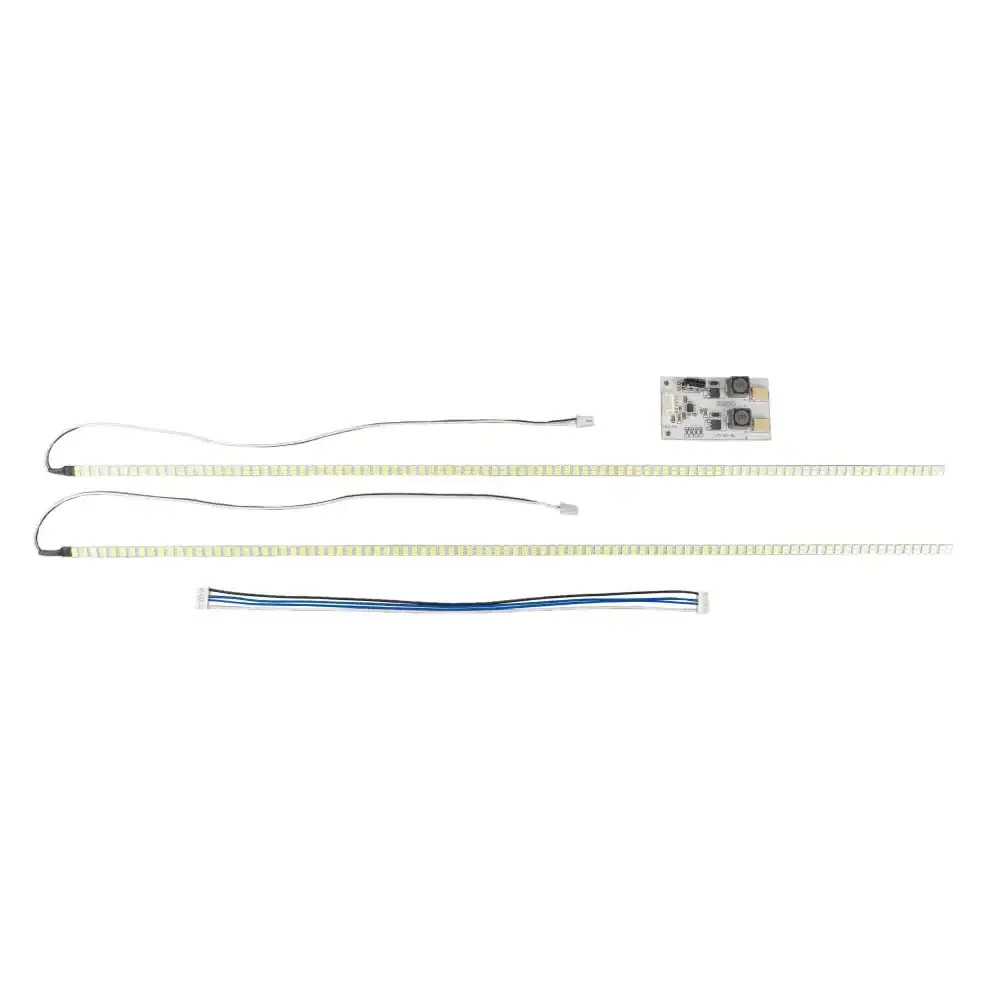

This is an extra wide, extra bright universal LED kit that includes 2 high brightness LED strips, a DC-DC LED driver, and a wire harness. Our strips have more chips per inch than the competition! The LED strips can be easily trimmed in designated increments every 3 LEDs, to fit any size LCD from 10.4"-24". This is known as a cut-to-fit model. This LED bar can be uséd for LED replacement or CCFL conversion.
LED Strip Specifications:
• LED Strip Dimensions: 540x6.3x2mm (LxWxH)
• LED Chip Quantity: 192
• LED Chip Size: 3528
• Connector: 2 pin JST
• Color temp: 8500k-11000k
• Input Voltage: 9V
• Input Current: 1A
• Power: 20W
• Wire: 1007 26#, 300mm length
LED Driver/Inverter Specifications:
• Dimensions: 7cm x 4cm
• Input Voltage: 10-30V DC
• Output Current: 2A
• Output Voltage: 7.5-9.6V DC
• Dimmable, connect to the ADJ pin to allow dimming.
• Pin assignments definition, from Black to White in the picture:
1. V IN, 9-30V (white)2. ON/OFF, 0-0.5V=OFF, 1.5V-5.0V=ON (blue)3. ADJ Dimming/Brightness, 0V-5V, 0V=Max Brightness, 5V=Min Brightness(blue)4. GND Ground (black)
Make sure you have an appropriate power supply before installing. The driver is expecting analog DC voltage.
This LED bar is suitable for both LED and CCFL backlight replacements.
This product is commonly uséd for replacing backlights in a variety of different LCD panels found in gaming machines, POS, ATM and many other applications.
NOTE: Plazmo does not have user manuals because every model of LCD power supply board is different. The customer must have some technical expertise to identify the power source on the monitor power supply board.
× × × × × × × × × × × × × × × × × ×
