TRS-80 Color Computer / Color Computer 2 Composite Video & Audio Upgrade Board (UVD Style)
Up for sale is a custom-built version inspired by the UVD (Universal Video Driver) board originally developed by Mark Data Products in the mid-1980s. This design is based on widely available schematics with improvements for modern use and reliability.
This board provides improved video and audio output for the TRS-80 Color Computer and TRS-80 Color Computer 2.
Important Note
The Color Computer system is NOT included. Images are for reference only.
What This Includes

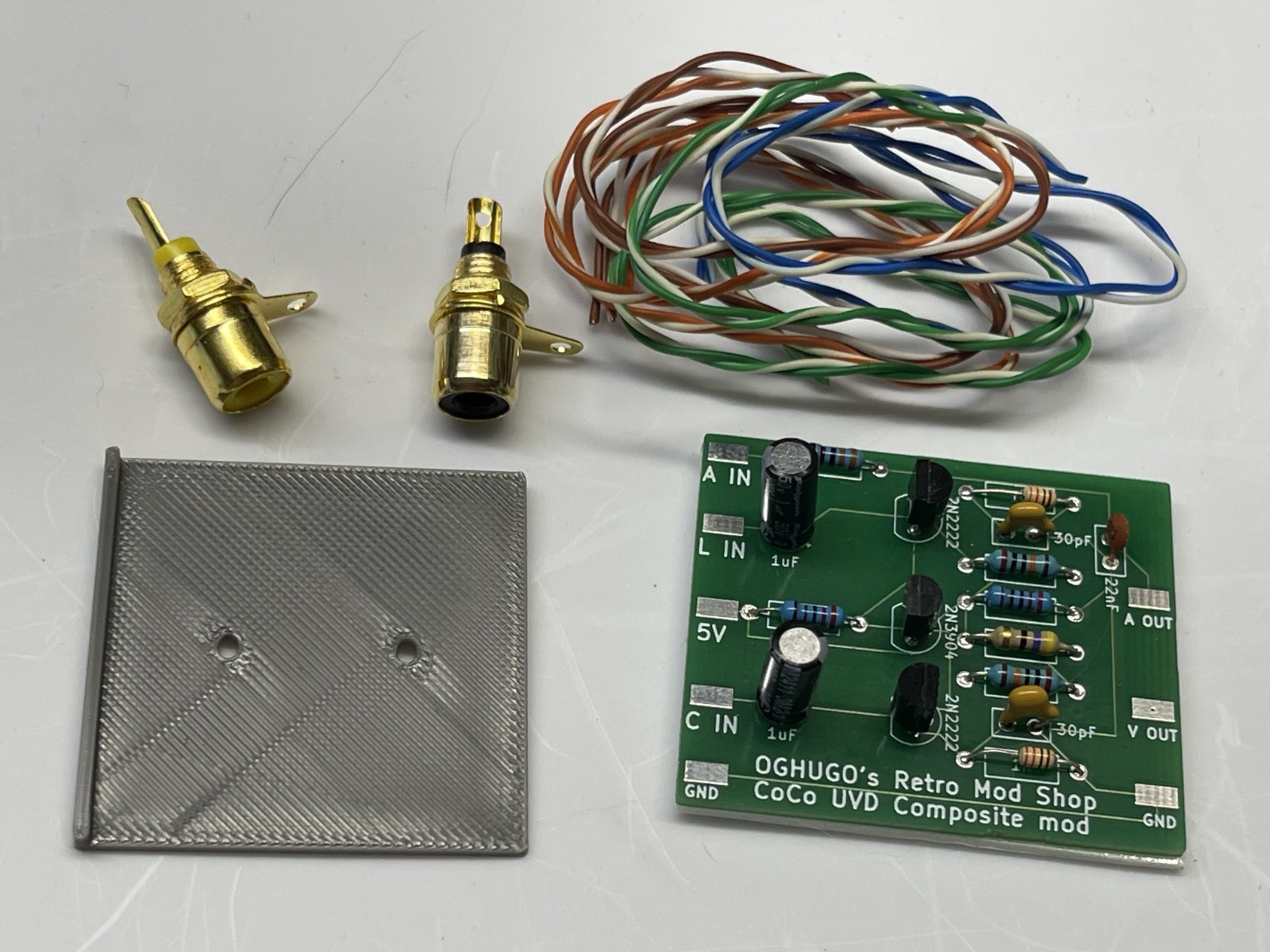

- 1 fully assembled composite video and audio output board (see photos)
- 1 3D printed drilling guide for RCA jack alignment
- Wiring for installation
- 2 gold-plated RCA connectors (mono audio + video)
- Step-by-step instructions (sent via email after purchase)
Board Details
- Self-contained assembled unit as shown in photos
- Includes double-sided adhesive for secure internal mounting
- Designed to work alongside the original RF output hardware
- No need to permanently remove existing RF components
Installation Information
Installation requires basic soldering to connect the board to the system.
Connection points are clearly labeled and instructions are provided after purchase.
If you are not comfortable performing the installation yourself, I also offer a professional installation service. Please check my other listings.
Tools Required (NOT INCLUDED)
- #2 Phillips screwdriver
- Small Phillips screwdriver
- Small flat-head screwdriver
- Needle-nose pliers
- Soldering iron (fine tip recommended)
- Solder sucker or solder wick
- Rosin-core solder
- TRS-80 Color Computer / Color Computer 2 system
- Small file (may be needed)
- Patience and careful handling
⚠️ This type of installation should only be attempted by individuals with proper soldering experience. No warranty is expressed or implied.
Additional Retro Services
- LED lighting upgrades for classic consoles
- NES blinking light repair
- RGB video upgrades for PC Engine / TurboGrafx / N64 / SNES Mini / NES (with NESRGB board purchase)
- Region switching services
- Sega Genesis video and audio upgrades
- And more
Assembled in the USA
Please feel free to contact me with any questions.
