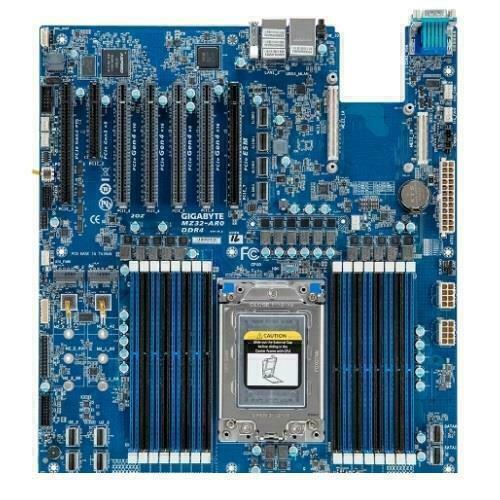

Used Gigabyte MZ32-AR0 Motherboard E-ATX SP3 5 PCIe Gen4 for EPYC 7002

Price: CN $579.00

Used Gigabyte MZ32-AR0 Motherboard E-ATX SP3 5 PCIe Gen4 for EPYC 7002

Product Description

Board version is REV 1.0 upgraded to REV 3.0.Board SizeE-ATX
305W x 330D (mm)Processor SupportedAMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 240W

Fully support 280W

NOTE: Please make sure Fan-sink supports over 280W CPU

Compatible with AMD EPYC™ 7001 series processor familySocketSocket SP3Chipset DescriptionSystem on ChipMemory Type16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPCIntegrated Network2 x 1GbE LAN ports (1 x Intel ®I350-AM2)
1 x 10/100/1000 management LANIntegrated Video ControllerIntegrated in Aspeed ®AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bppIntegrated Audio ControllerN/AIntegrated SAS ControllerN/AIntegrated SATA Controller2 x SlimSAS 4i for 8 x SATA portsSupport RAID FunctionN/AExpansion SlotSlot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards

4 x NVMe ports:
- SlimSAS 4i type
- PCIe Gen3 x4 per port
- Shared with Slot_7 PCIe Gen4 x16 slotOn-Board Connector1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
10 x SlimSAS connectors
2 x M.2 slots
1 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x BuzzerRear I/O Connectors3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LEDTPM1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010OS Driver SupportedWindows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or laterServer ManagementAspeed ®AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectorsOperating PropertiesOperating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)Packaging Bundle1 x MZ32-AR0
1 x I/O shieldBulk Packaging Content10 x MZ32-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mmOrdering InformationRetail: 9MZ32AR0MR-00

Bulk: 9MZ32AR0NR-00

Part Numbers:
- I/O shield: 12AIO-MZ32A0-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Fan-sink: 12SF2-01A067-00R ( in guarantee to ship your packagewithin 2-5 business days (except holidays)and youwill receive an message after shipment.
