Audio Lcd Controller Board Fit To Gen3 LCD screens TMNT, Marvel, NBA JAM or any game motior that uses DV170YGZ-N10 screen.

Also works with the Costco version of Mortal Kombat and Pacman with DV170YGZ-N10 SCREEN.

4:3 1280X960 LCD DV170YGM-N10/DV170YGZ-N10 with the resolution 1280x960 controller board, the screen picture will NOT cut off at the bottom.

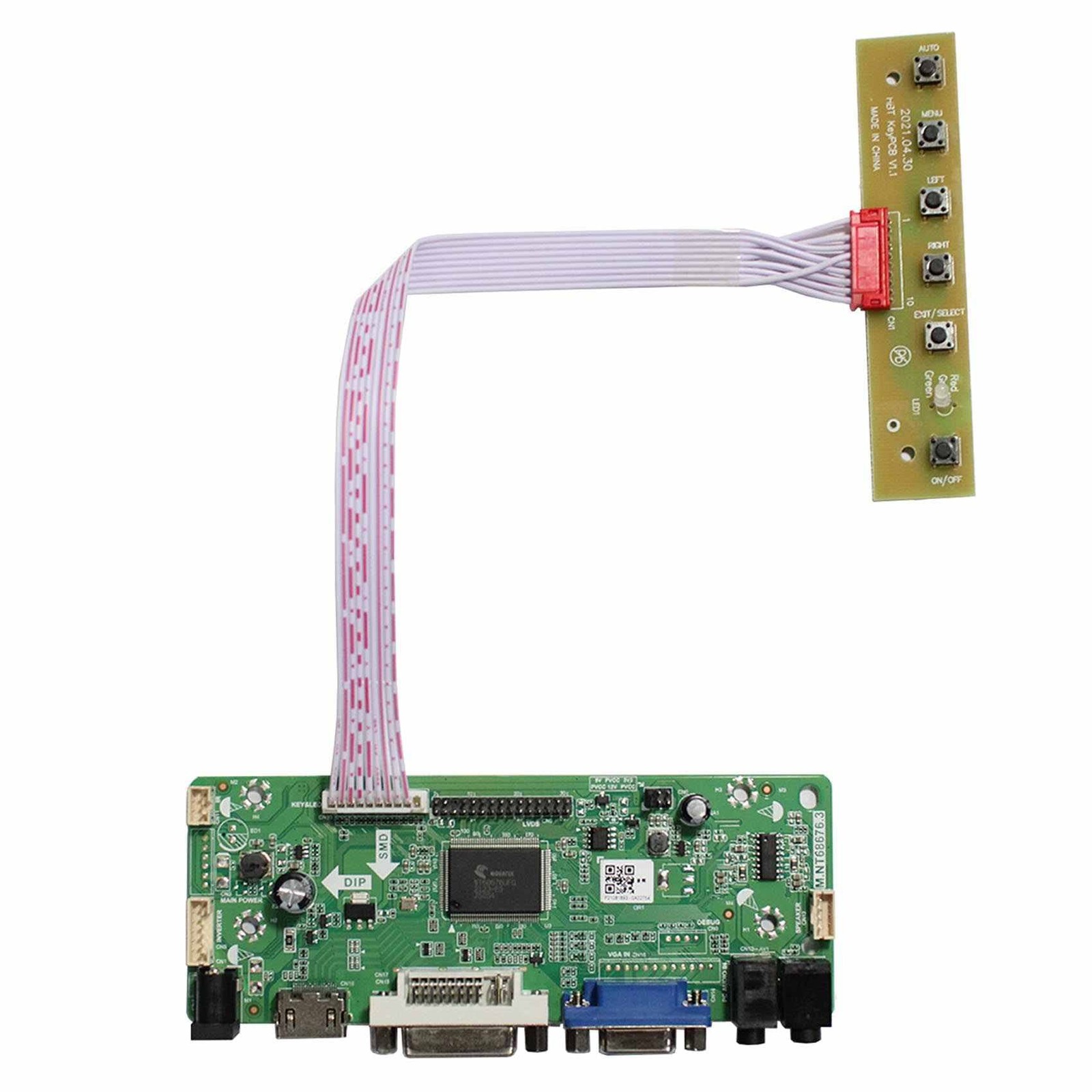

LCD Controller Board:

DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: DVI VGA

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 139 mm x 53 mm x 17 mm

The Controller Board Fit To DIY Kit

17in list:

1×VGA DVI LCD Controller Board

1× Screw And Nut For GND Connection

1× Keyboard With verify that you have a GEN 3 LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen.

Compatible with:Fit for Gen3 LCD Screens which have 4:3 1280X960 DV170YGM N10 / DV170YGZ N10 LCD
Feature:This board (resolution 1280x960) can solve the cut off screen problem on the Gen 3 cabinets immediately. But help to noticed that pls verify that you have a GEN 3 LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen
Video Input:DVI VGA; Audio Output: Speaker Connector
Come In Standby Model When Not Input Signal. Standby Model
