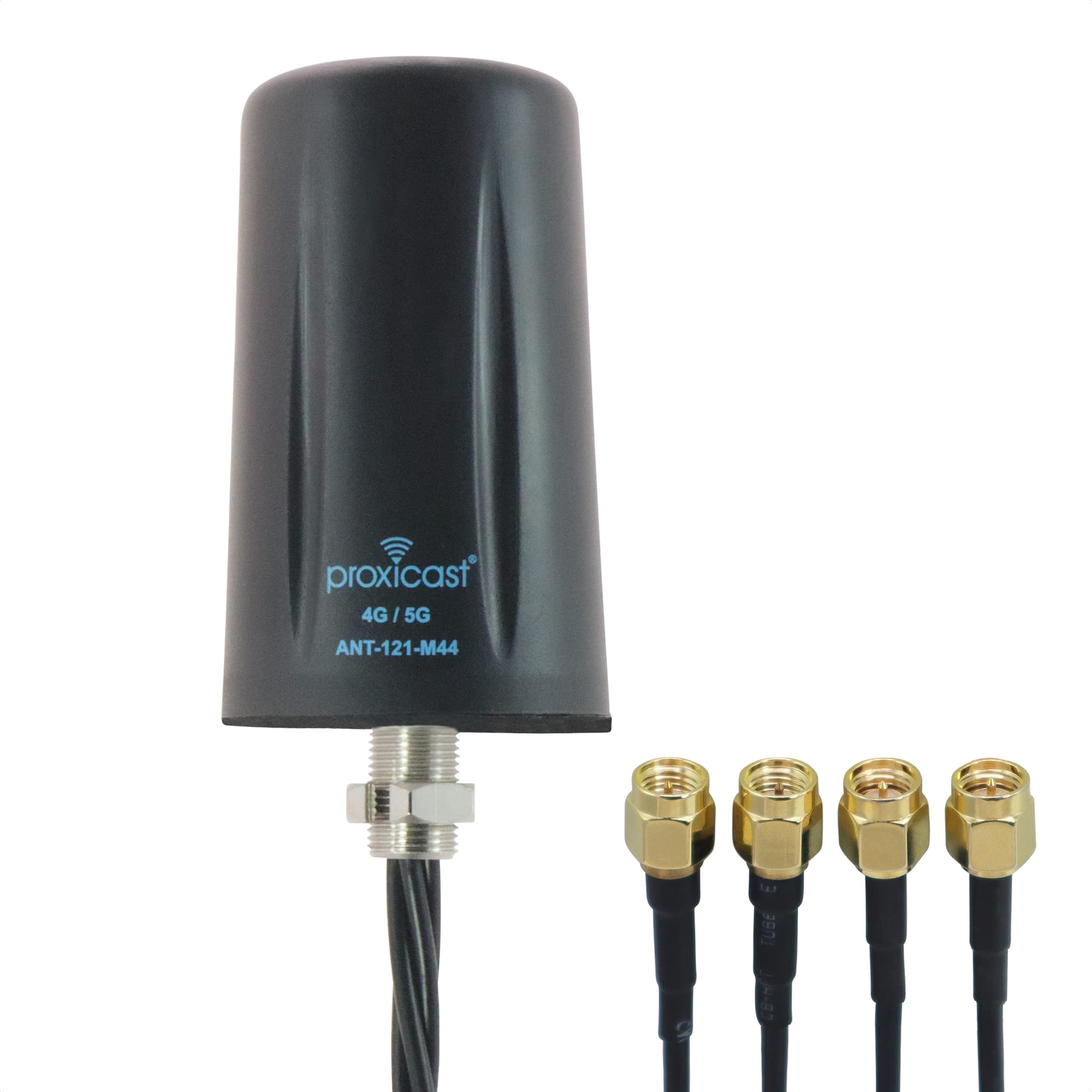

Proxicast Vandal Resistant 4x4 MIMO Low Profile 4G/5G Omni-Directional Screw Mount Antenna - 10 ft Coax Leads - for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Others (ANT-121-M44)

• LOW PROFILE ~ 3 inches Tall with 3-4 dBi Gain -- Omni-directional MIMO -- Indoor/Outdoor Use
• 4 STANDARD SMA MALE CONNECTORS (with pin) on 10 ft Coax Leads / Vandal Resistant Materials & Design
• 4 IDENTICAL ISOLATED OMNIDIRECTIONAL ANTENNA ELEMENTS Cover all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) in a Compact Enclosure
• WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
• COMPATIBLE WITH 4X4 MIMO Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters.
• RECOMMENDED GROUND PLANE - Works when installed through a flat metal surface

For outdoor/indoor applications. Excellent for hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing MIMO-capable cellular modems, routers or other 4G LTE 5G enabled devices which have 4 SMA external antenna connectors.

This low profile (~ 3 inches tall) fixed mount omni-directional antenna provides 3 to 5 dBi of gain and supports all cellular frequency bands for AT&T, Verizon, T-Mobile, Bell, Rogers, Telus and other worldwide carriers.

Permanently mounts via a 5/8 in. (16 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded mounting post. Includes 10 ft of low-loss paired RG174 coax fed through center mounting post. Includes "L" bracket for optional wall mounting.

Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67) when installed with post extending into a water-tight enclosure. waterproof when used exclusively with wall bracket.

Integrated SMA male plug connectors mate with SMA female jacks found on most cellular modems and routers.

* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.

Specifications

Frequency Range: 600~6000 MHz
Impedance: 50 ohm
VSWR: < 2.0:1
Gain: 3-5 dBi
Radiation: Omni
Polarization: Vertical
Connector: SMA plug (male)
Material: UV stabilized ABS plastic (black)
Connector: Brass with Nickel plating
Cable Length: 10 ft (3m) low-loss RG174 coax
Height: 3.2 in (82 mm)
Diameter: 1.9 in (48 mm)
Weight: 6.2 oz (176 g)
Op. Temp.: -40C to +80 C
