For outdoor/indoor applications. Excellent for hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing cellular modems, routers or other 4G/5G enabled devices which have SMA external antenna connectors.

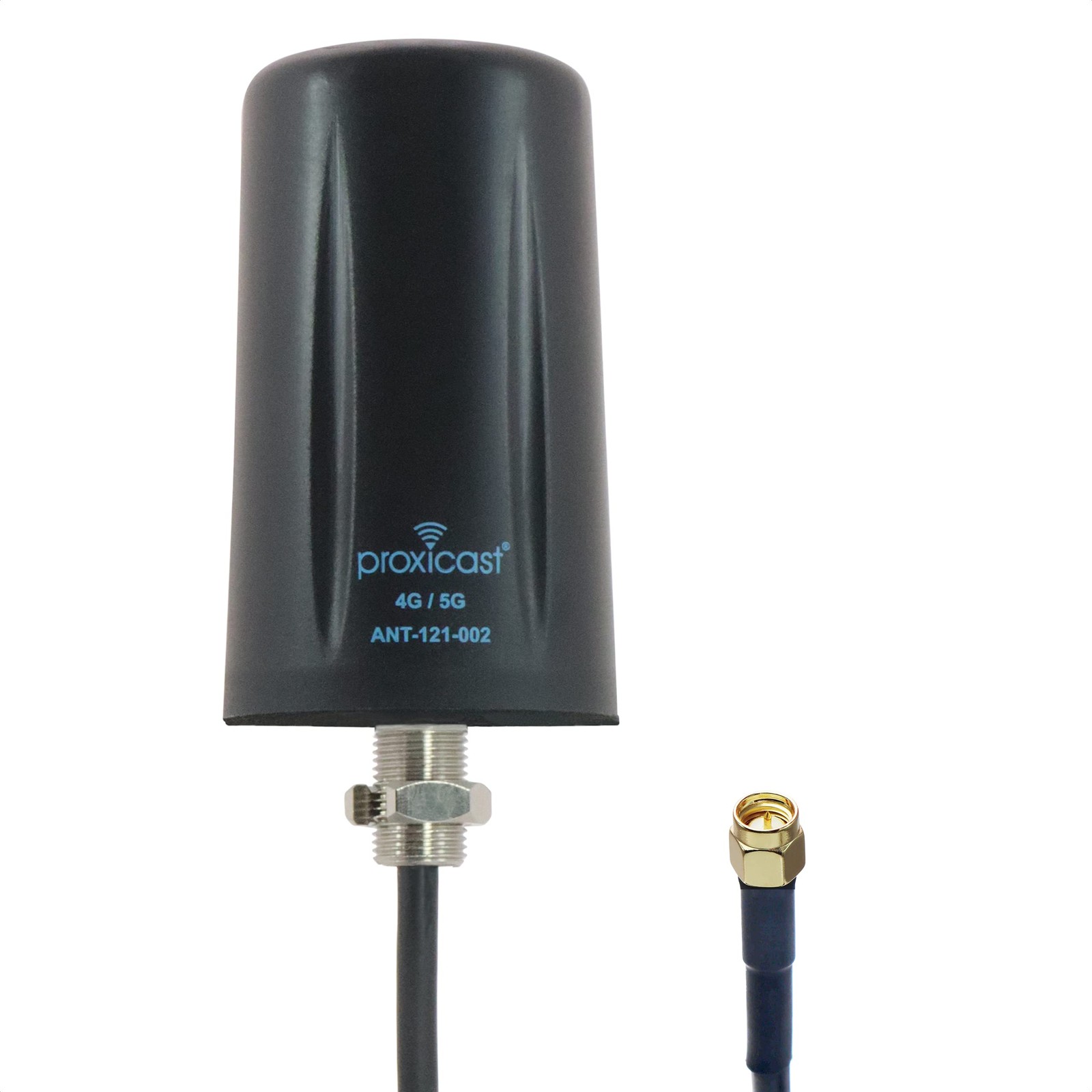

This low profile (~ 3 inches tall) fixed mount omni-directional antenna provides 3 to 5 dBi of gain and supports all cellular frequency bands for AT&T, Verizon, Sprint, T-Mobile, Bell, Rogers, Telus and other worldwide carriers.
Permanently mounts via a 1/2 in. (13 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded mounting post. Includes 10 ft of low-loss RG58U coax fed through center mounting post. Includes "L" bracket for optional wall mounting.
Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67).
Integrated SMA male plug connector mates with SMA female jack found on most cellular modems and routers.
* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.
Specifications
Frequency Range: 600~6000
Impedance: 50 ohm
VSWR: < 2.0:1
Gain: 3-5 dBi
Radiation: Omni
Polarization: Vertical
Connector: SMA plug (male)
Material: ABS plastic (black)
Connector: Brass with Nickel plating
Cable Length: 10 ft (3m) low-loss RG58U coax
Height: 3.2 in (82 mm)
Diameter: 1.9 in (48 mm)
Weight: 6.2 oz (176 g)
Op. Temp.: -40C to +80 C
Note: LTE systems should use the 2 lead version ANT-121-M22 (ASIN B07DF9XK5Y)
LOW PROFILE ~ 3 inches Tall with 3-4 dBi Gain -- Omni-directional MIMO -- Indoor/Outdoor Use
SMA Male Connector on 10 ft Coax Lead / Vandal Resistant Materials & Design
Covers all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) in a Compact Enclosure
WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
COMPATIBLE WITH Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters.
