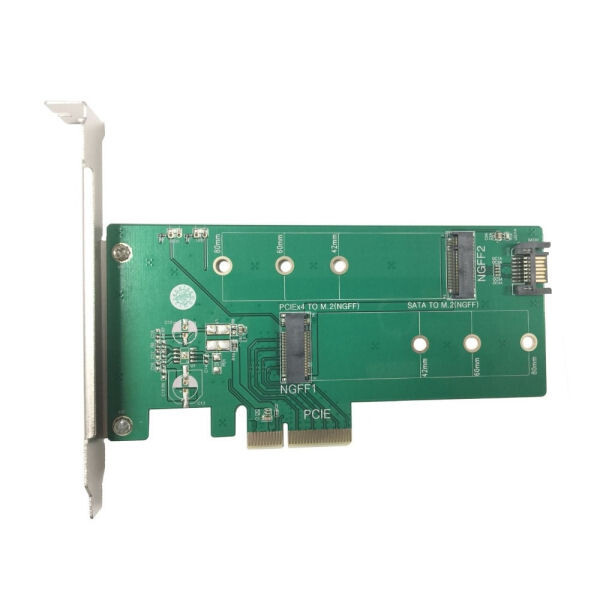

Primary M.2 for PCIe based (NVMe or AHCI) SSD to PCIe x4 slot

Secondary M.2 for SATA SSD to the System main board SATA port

PCIE to M.2 SSD (M-Key), SATA to M.2 SSD (B-Key)

Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm

Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0

Supports system boards with PCIe x4,x8,x16 slots

Uses minimum power from PCIe 3.3V for better power management

Low Profile Bracket included

Primary M.2 Type: NVMe or AHCI SSD using M Key only

Secondary M.2 Type: SATA SSD using B Key

M.2 size: Length support 22x42mm, 22x60mm or 22x80mm

Internal Interface: 2 x M.2 (NGFF)

PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes)

Power: PCIe Bus powered (3.3V)

Dimensions: 5.8 x 4.7 x 0.7 inches / 148 x 120 x 17 mm

System Requirements:

For booting, system requires UEFI BIOS with booting support

Available system board PCIe x4 or x8 or x16 slot

OS support like Windows® 7/8/8.1/10 (Windows 10 preferred), or Linux (Latest Kernel)
