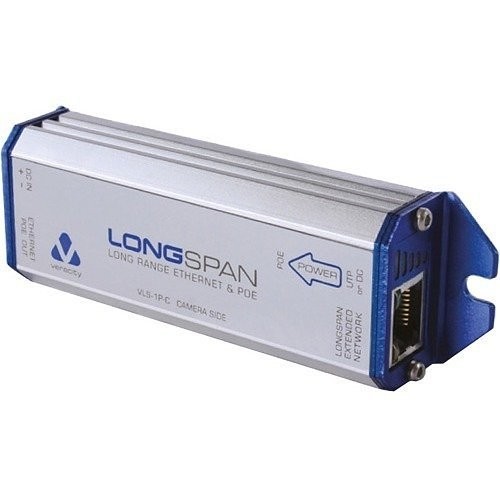

Veracity LONGSPAN VLS-1P-C Long-Range Ethernet & PoE Extender
The Veracity LONGSPAN VLS-1P-C is a high-performance long-range Ethernet and PoE extender designed to deliver reliable IP camera connectivity over extreme distances using standard Cat5e or Cat6 cable. Engineered for demanding surveillance environments, LONGSPAN technology enables full-bandwidth transmission and consistent power delivery far beyond traditional Ethernet limitations.
Ideal for applications such as railways, campuses, perimeter security, parking lots, and industrial sites, the LONGSPAN system operates as a point-to-point solution, pairing a base unit with a camera-side device to extend network and power up to 820 meters (2,690 feet) while maintaining full 100Base-TX performance.
Key Features & Benefits
- Extended Distance Ethernet: Transmit data up to 820m at 100Base-TX or over 1000m at 10Base-T.
- Full PoE+ Delivery: Provides up to 25.5W PoE+ power at distances up to 600 meters.
- High Bandwidth Performance: Supports full-duplex 200Mbps bandwidth for high-resolution IP video.
- Flexible Cabling Support: Works with 1-pair, 2-pair, or 4-pair UTP cabling.
- Plug-and-Play Installation: No configuration, DIP switches, or setup required.
- SAFEVIEW™ Diagnostics: Integrated LED indicators provide real-time link, power, and performance status.
- Rugged Design: Operates in extreme temperatures from -40°C to 70°C.
- Scalable Deployment: Supports high-density installations with up to 24 units in a 1U rack.
Optimized for IP Surveillance Applications
Unlike traditional Ethernet extenders, LONGSPAN ensures unrestricted bandwidth and stable PoE delivery even during peak video transmission scenarios such as motion events or low-light conditions. This guarantees consistent video quality without frame drops or latency—critical for security and monitoring systems.
Additionally, LONGSPAN enables organizations to upgrade legacy analog infrastructure to IP without replacing existing cabling, significantly reducing installation costs and complexity.
Power & Performance
The LONGSPAN system allows centralized power delivery from a PoE switch or injector, ensuring reliable operation and simplified UPS-backed power management. It supports both IEEE 802.3af and 802.3at (PoE+) standards, making it compatible with a wide range of IP cameras and network devices.
Frequently Asked Questions (FAQ)How far can the Veracity LONGSPAN VLS-1P-C extend Ethernet?
It supports up to 820 meters at full 100Base-TX speeds and can exceed 1000 meters when operating at 10Base-T speeds.
Does LONGSPAN support PoE+ devices?
Yes, it supports IEEE 802.3at PoE+ and can deliver up to 25.5W of power at distances up to 600 meters.
Do I need to configure the device?
No, LONGSPAN is fully automatic and requires no configuration, making installation simple and fast.
Can I use existing cabling infrastructure?
Yes, LONGSPAN works with existing Cat5e, Cat6, and even lower-pair UTP cables, making it ideal for upgrading legacy systems.
Technical Specifications – Veracity LONGSPAN VLS-1P-C Category Specification Product Model VLS-1P-C (LONGSPAN Camera Unit) Device Type Long-range Ethernet & PoE Extender Power Device Power Consumption 1.0W PoE Input IEEE 802.3af / IEEE 802.3at (PoE+), Class 4 PoE Output IEEE 802.3af / IEEE 802.3at (PoE+) DC Power Input Optional 54–57V DC via detachable screw terminal LONGSPAN Interface Connector RJ45 Cable Type Cat5e, Cat6, Cat3, 1/2/4-pair UTP Data Rate 200Mbps (100Base-TX full duplex) up to 820m
20Mbps (10Base-T full duplex) up to 1050m (auto-adaptive) Ethernet Interface Connector RJ45 Cable Detection Auto-detects patch or crossover Ethernet Speed 10/100Base-T, full duplex, auto-negotiation LED Indicators Ethernet Port Link/activity (yellow), power (green) LONGSPAN Link Link/activity (yellow), speed (green 10/100Mbps) PoE & Diagnostics Power levels (5/10/15/20/25W), status LEDs, diagnostic codes Performance Maximum Distance 820m (100Base-TX), up to 1050m (10Base-T) Maximum PoE Power Up to 25.5W (PoE+) at up to 600m Bandwidth 200Mbps full-duplex Physical & Environmental Dimensions 120mm x 36mm x 23mm (4.7" x 1.4" x 0.9") Weight 100g (3.5 oz) Operating Temperature -40°C to 70°C (-40°F to 158°F) Humidity Up to 85% non-condensing Compliance & Certifications Certifications FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 Installation & Features Installation Type Plug-and-play, no configuration required Diagnostics SAFEVIEW™ LED status and diagnostics Scalability Supports up to 24 units in 1U rack (with mounting kit)
