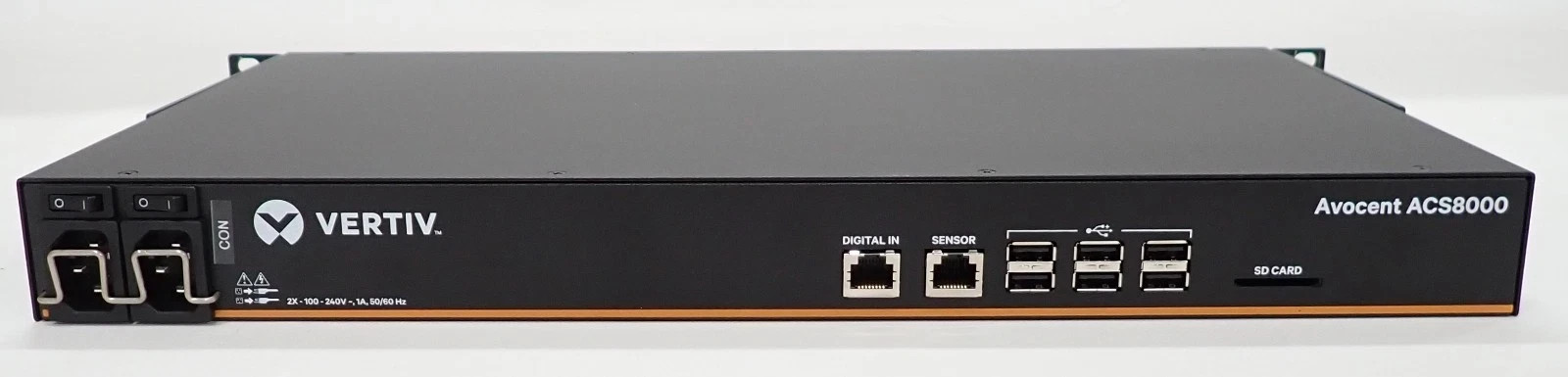

Vertiv Avocent ACS8000 8-Port Console Server DAC Dual AC PSU ACS8008DAC
Model:ACS 8008P/N:ACS8008DAC
In Good Condition, Full Working OrderTested2 Year Warranty

Includes:

• 1 xVertiv Avocent ACS8000 8-Port Console Server DAC Dual AC PSU ACS8008DAC

Description:
The Avocent ACS8000 advanced console server series continues the long runningsuccess story with a new, ground-up platform of innovation, integrating important newconnectivity features such as cellular, gigabit fiber, USB and sensors. IT professionals andnetwork operations center (NOC) personnel can now harness these new capabilities tofurther enable them to perform secure, remote data center management and out-ofband management of IT assets from anywhere in the world. Featuring a dual-core ARMprocessor architecture with expanded memory capabilities, the updated Linux operatingsystem and DSView management software, provides the Avocent ACS8000 optimalperformance, security, reliability for a complete out-of-band management console and power management

Server and network management

Secure access to test and developmentlab environments

Telco central office and remote details

• Zero Touch Provisioning (ZTP): Yes
• Web-based management: Yes
• Temperature sensor: Yes
• Product colour: Black
• Rack mounting: Yes
• Internal modem: No
• Event logging: Yes

Management features

• Management protocols: CLI, HTTP/ HTTPS, SNMP

Security

• One-time password (OTP): Yes
• Security algorithms: 3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS address filtering: Yes
• Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)

Ports & interfaces

• SFP module slots quantity: 2
• USB 2.0 ports quantity: 8
• Serial ports quantity: 8
• Ethernet LAN (RJ-45) ports: 2
• Console port: RJ-45
• AC outlet types: C13 system installed: Embedded family: ARM Cortex-A9
• Processor architecture: ARM Cortex-A9
• Processor cores: 2
• Processor frequency: 667 MHz

Memory

• RAM type: DDR3L
• RAM capacity: 1024 MB
• eMMC capacity: 16 GB
• Internal memory: 1024 MB
• Flash memory: 16000 MB

Weight & dimensions

• Weight: 3.4 kg
• Dimensions (WxDxH): 438.2 x 241.3 x 44.5 mm

Power

• Nominal voltage: 120VAC:
• Typical: 0.13A, 6.2W
• Maximum: 0.47A, 28W
• Nominal voltage: 240VAC:
• Typical: 0.10A, 7W
• Maximum: 0.29A, 28W
• Nominal voltage: 48VDC (±20%)
• Typical: 0.22A, 11W
• Maximum: 0.67A, 33W

Operational conditions

• Storage temperature (T-T):-4° to 158°F (-20° to 70°C)
• Storage relative humidity (H-H): 5 – 95%
• Operating temperature (T-T):14°F to 140°F (-10°C to 60°C)
• Operating relative humidity (H-H): 20 – 80%

Network

• Copper ethernet cabling technology: types supported: Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
