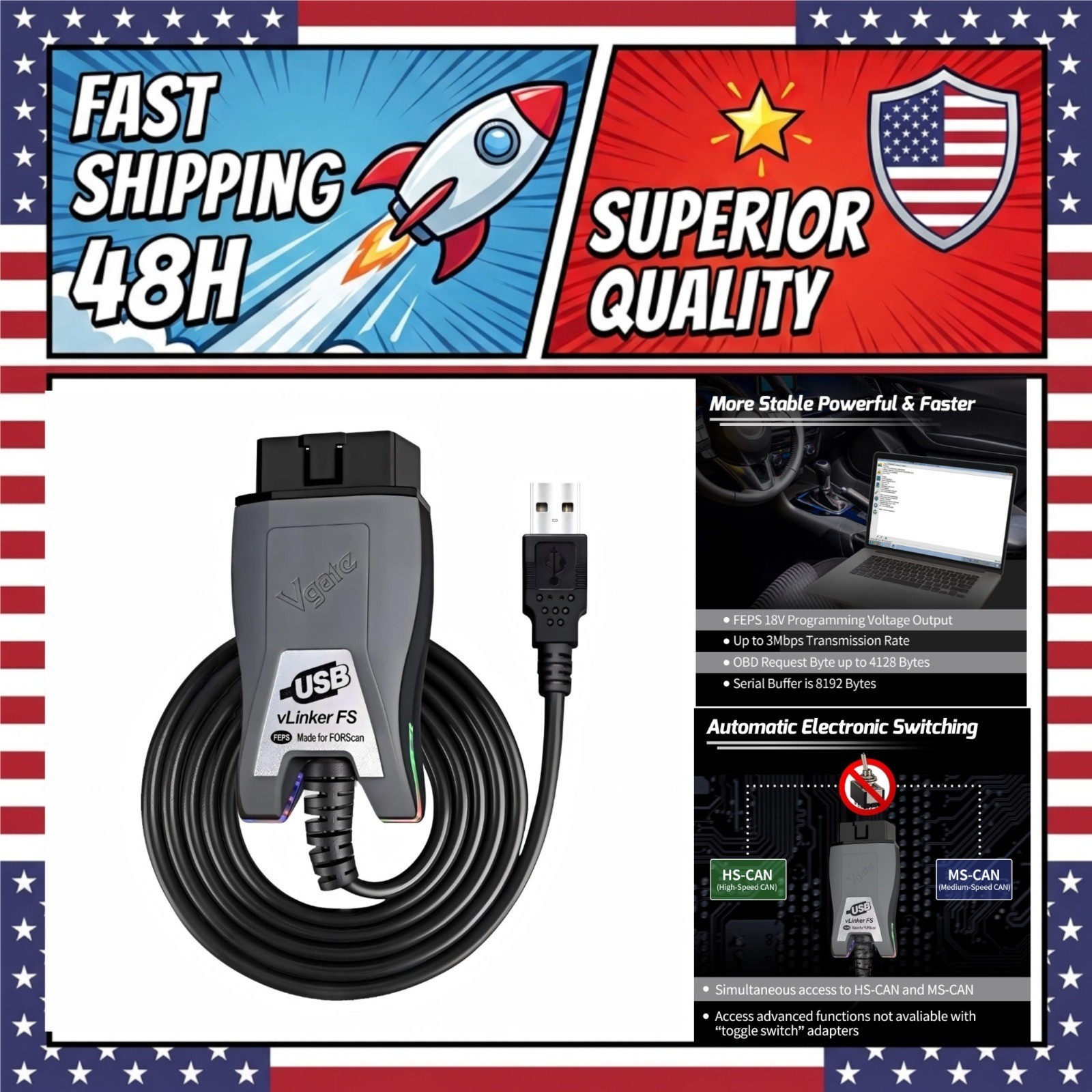

The Vgate vLinker FS USB is a professional-grade OBD2 USB adapter built for serious diagnostics and ECU programming. Powered by the proven ELM327 protocol, it connects your Windows laptop directly to your vehicle's OBD2 port and is specifically optimized for FORScan, delivering rock-solid stability during long diagnostic sessions and module programming without lag or crashes.

Whether you are a home mechanic, a DIY enthusiast, or a professional technician, the vLinker FS gives you fast, reliable access to your vehicle's onboard network. It works with 12V and 24V gasoline, diesel, and select CAN flow-controlled electric vehicles that meet the OBD-II standard, making it a versatile tool for a wide range of US- and EU-spec models.

Intelligent CAN bus detection automatically identifies and connects to supported buses, including HS-CAN and MS-CAN, so you can reach multiple modules with a single adapter. High-speed data transfer up to 3 Mbps and full 4095-byte packets mean complete DTC retrieval and large data transfers without truncation.

• Brand: Vgate
• Model: vLinker FS USB - Windows
• Type: OBD2 USB Diagnostic Adapter
• Connector A: USB 2.0
• Connector B: OBD2 (16-Pin)
• Operating System: Windows
• Color: Black
• Dimensions: 4.33 in (L) x 1.77 in (W) x 0.79 in (H)
• Weight: 2.89 oz

• ✓ Optimized for FORScan with stable, lag-free performance during extended diagnostics and ECU programming
• ✓ Intelligent auto-switching between HS-CAN and MS-CAN buses for seamless multi-module access
• ✓ Supports up to ~18V output for ECU programming and flashing on select older US-market vehicles
• ✓ High-speed data transfer up to 3 Mbps with full 4095-byte packets for complete DTC retrieval
• ✓ Works with 12V and 24V gasoline, diesel, and select electric vehicles meeting the OBD-II standard

Plug the vLinker FS USB into your vehicle's standard OBD2 port and connect the USB end to your Windows PC, then launch your preferred diagnostic software. It is ideal for reading and clearing diagnostic trouble codes, streaming live data, running module tests, and performing ECU programming and flashing on supported vehicles.

An OBD2 application that supports both your vehicle and ELM327-compatible devices is required to operate the adapter. Diagnostic software is not included and must be installed separately.

• Vgate vLinker FS USB OBD2 Adapter
• User Manual

• Requires a compatible OBD2 diagnostic application (such as FORScan) that supports your vehicle and ELM327-compatible devices; software is not included and must be installed separately.
• ECU programming and flashing should only be performed after consulting service documentation or a qualified technician.
