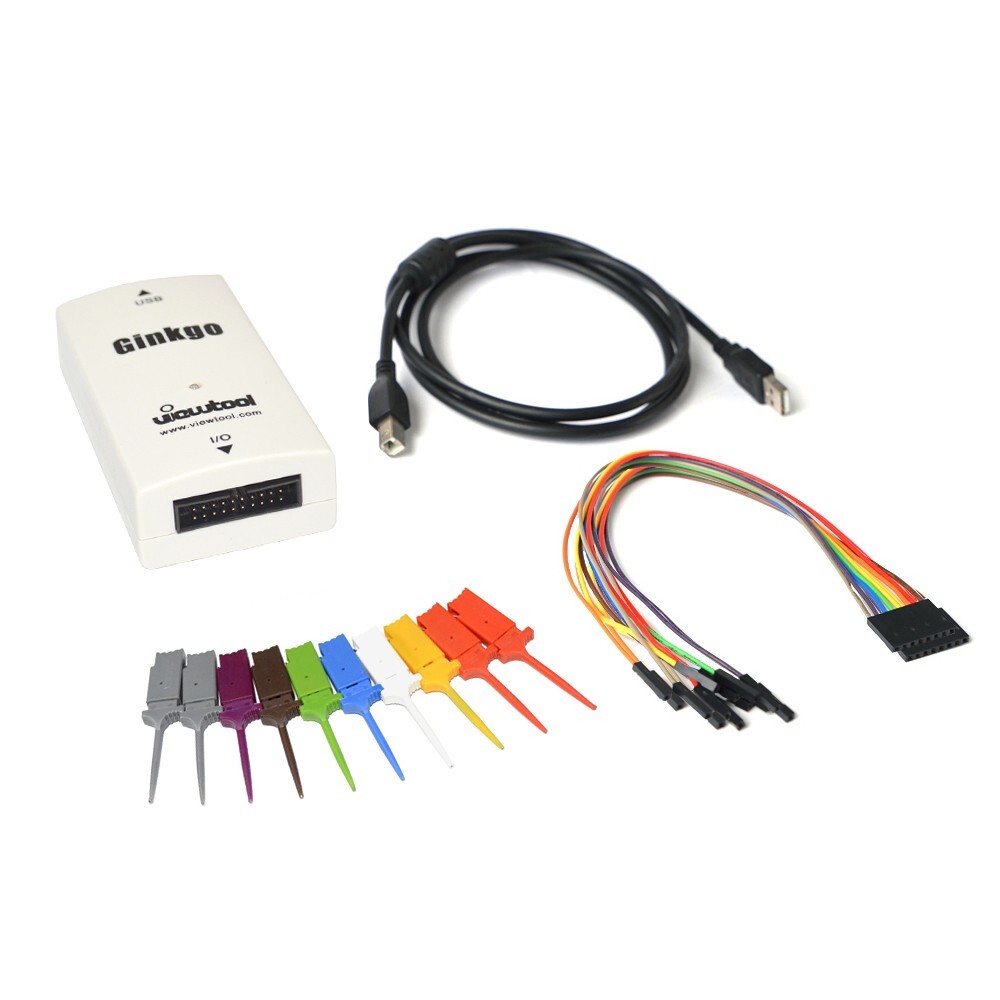

Typical Applications:
- I2C device or chip control and debugging
- Sensor with I2C interface testing.
- I2C EEPROM data reading and writing.
- I2C device fault detection
- Power management chips with PMBus/SMBus interface control.
- Assist in developing the I2C master.
- Pulse counter.
- Analog voltage measurement and GPIO input or output control.
- PWM signal output.
- USB to dual serial port/TTL (compatible with RS485 bus mode)
Feature:
- Support Windows, Linux, MAC OS.
- Support Android and Raspberry Pi.
- USB bus power supply without external power; 5V and 3.3V output; max current 500mA; short circuit protection.
- Support I2C Host/Master mode and Slave mode.
- 2 channels Hard(standard) mode up to 400KHz.
- 8 channels GPIO mode up to 400K.
- Support PMBus and SMBus and provide the API library.
- There is much kinds of free PC software compatible with the LabviEW interface to deal with different requirement.
- Support USB-SDI12, USB-EasyScale, USB-UART and counter, PWM output, ADC sampling, GPIO control and other functions.
- Multiple USB-I2C adapter can work in one PC at the same time (up to 100).
- It can output the RS485 signal (DE) and realize USB-RS485 by a TTL-RS485 module.
- The firmware can free update or change (such as SPI) by Own Bootloader program.
- Provide secondary development API and API detailed document and all kinds of languages platform application examples Studio etc.).
Performance:
- USB 2.0;bus-powered.
- 2 channels Hard(standard) mode up to 400KHz.
- 8 channels GPIO mode up to 400K.
- 8 channels ADC (12bit) analog voltage signals (0~3.3V) measurements; max sampling rate 1MHz.
- 16 channels GPIO outgoing control high or low level and all pin compatible with TTL level.
- 4 channels Pulse counter input.
- 2 channels UART can output RS485 signal (DE); max baud rate up to 2.25Mbps.
- 8 channels PWM signal output; duty ratio (0%~100%); frequency range: 1Hz to 20MHz.
- 16 channels EasyScale bus signal output and bus timing can be adjusted.
- 2 channels SDI12 bus output (need external transceiver).
- Safe voltage: 0~5V
- Size: 103mm×53mm×28mm; Weight: ≈200g
- Temperature range: -40℃～85℃
