Vintage Applied Engineering DataLink 2400 Apple II IIGS Modem Card Rev C 1988
Price: US $29.99
ITEM OVERVIEW

Vintage Applied Engineering DataLink 2400 internal 2400-baud modem expansion card for the Apple II family.

This example is a Rev C board dated 1988 and retains its original ribbon cable and dual telephone-line jack assembly.

DESCRIPTION

Original Applied Engineering DataLink 2400 internal modem designed for compatible Apple II computers.

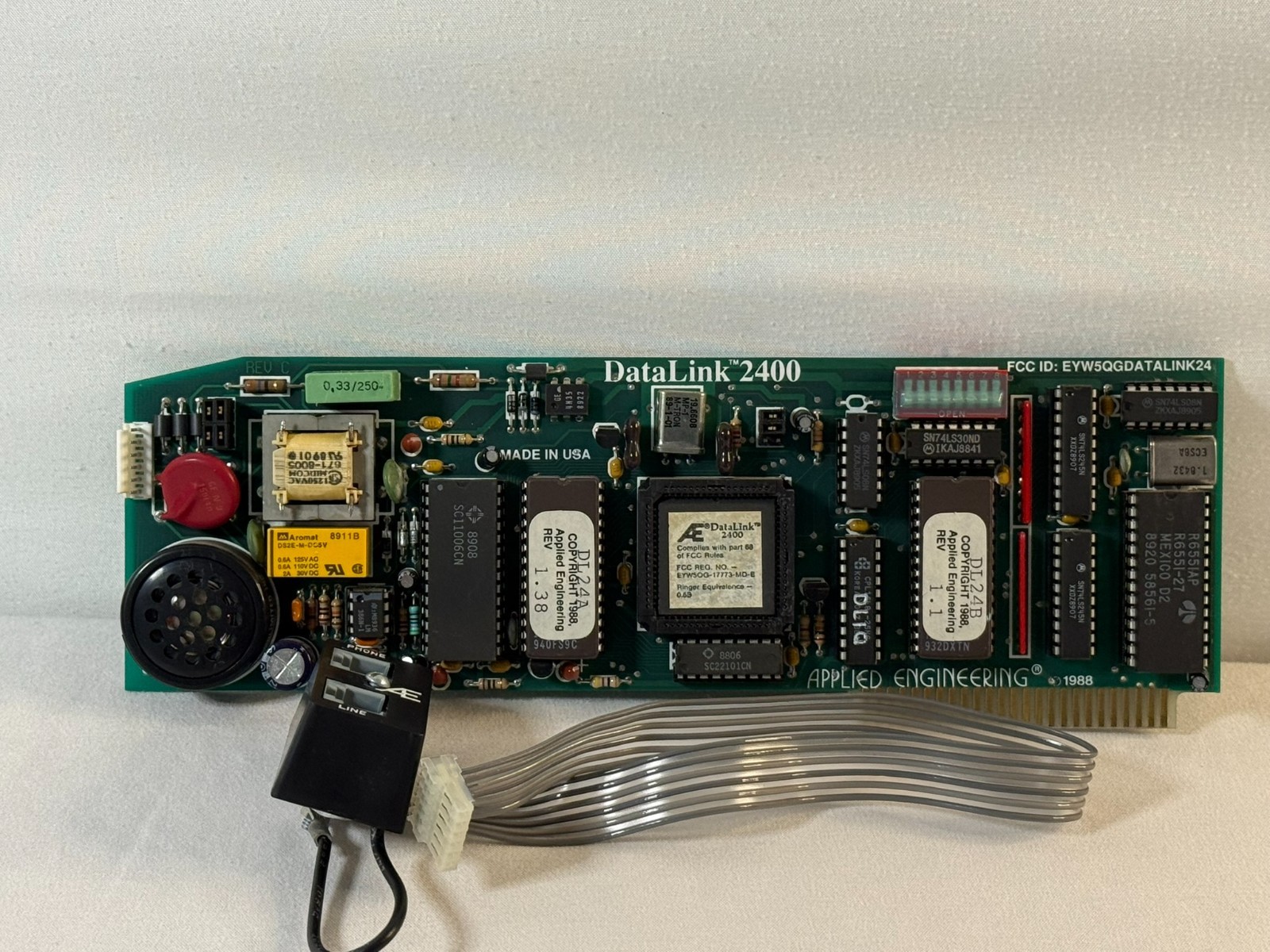

The board is clearly marked DataLink 2400, Applied Engineering © 1988, Rev C, Made in USA, and FCC ID EYW5QGDATALINK24. Installed firmware ROMs are marked DL24A Rev 1.38 and DL24B Rev 1.1.

The DataLink 2400 provided 2400-baud communications and included features such as onboard call-progress monitoring and dual modular telephone connections. Period Applied Engineering literature identifies compatibility with the Apple II+, IIe, and IIGS.

KEY HIGHLIGHTS
  • Applied Engineering DataLink 2400
  • 2400-baud internal modem
  • Rev C circuit board
  • Copyright 1988
  • DL24A firmware Rev 1.38
  • DL24B firmware Rev 1.1
  • Original 8-position DIP switch bank
  • Onboard speaker
  • Original ribbon cable
  • Dual telephone jack assembly
  • FCC ID EYW5QGDATALINK24
  • Made in USA
  • Compatible with Apple II+, IIe, and IIGS
CONDITION
  • Excellent cosmetic condition
  • Circuit board is exceptionally clean for its age
  • Chips, switches, speaker, and visible electronic components appear intact
  • Gold edge contacts show normal insertion wear
  • Original ribbon cable and telephone jack assembly are present
  • No obvious corrosion, burnt areas, broken traces, or damaged components observed
  • From a large, carefully stored vintage Apple collection
  • Not functionally tested because a compatible Apple II system is not currently available
  • Please review all photos closely for exact condition and included components

Item pictured is the exact item you will receive.
