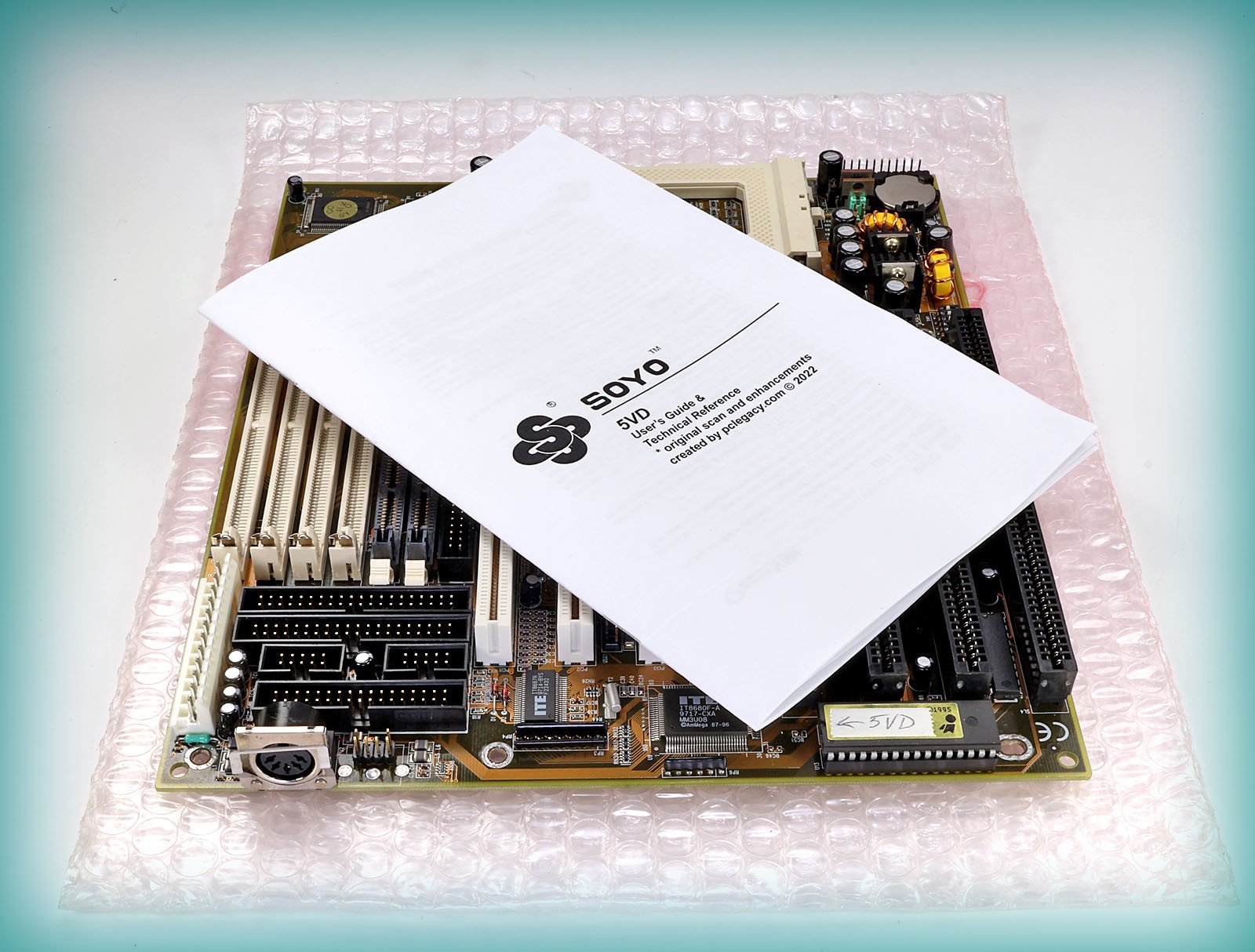

Rare Soyo 5VD5 Baby-AT c.1997
Socket-7 ISA/PCI, 512K WB cache, Intel-VX chipset and multi-I/O.
• FSB = 50, 55, 60, 66, 75 MHz.
• Multiplier = 1.5, 2.0, 2.5, 3.0, 3.5, 4.0x.
• Voltage = 3.52, 3.3V single, and 3.2, 2.9, 2.8V dual.
Supports up to Pentium 233mmx and Cyrix 6x86MX-PR266.
Unlocked BIOS * plus list of Setup/BIOS defaults.
Includes printed copy of updated original manual + pclegacy cheatsheet.
Professionally tested — 30 day warranty against defects.
Sold without CPU and RAM so you can configure as you wish.
sn. 412564

• Removed during a routine upgrade decades ago and has remained unused, packed in protected storage ever since.
• Fully tested using professional software and equipment specifically designed to test motherboards of this era.
• Intel 430VX chipset.
• Latest release of Award BIOS v4.51PG revision VD-1BA1 dated 11/19/98 — UNLOCKED *
• Memory support: 1/2 168-pin DIMM (or) 2/4 72-pin EDO SIMM.
  • DIMM and SIMM cannot be mixed.
• 512K write-back SDRAM cache.

• Fresh new CR2032 lithium cell installed.
• Four 32-bit bus-master PCI slots, plus four 16-bit ISA slots give you the best of both worlds.
• LPT parallel printer port, 2 serial ports, PS/2 mouse headers (cables optional).
• 220mmW x 250mmL 4-layer PCB.
• More info available here:
• A very clean and functional vintage motherboard great for anyone wanting to play around with vintage technologies or play retro DOS games.

You will receive exactly the item you see in the photos.

Shipped via USPS with full tracking. Shipped from a USPS SCF (Sectional Center Facility) so delivery anywhere within the U.S. is only a few days away (excluding the occasional USPS misdirect).

* UNLOCKED BIOS: As an OEM during the early years, I licensed BIOS directly from the big 3 major BIOS manufacturers (Phoenix, Award, AMI), and was provided with OEM BIOS customization tools which allowed configuration of the BIOS user interface to set all defaults and to hide/lock any options. Soyo licensed Award BIOS for this motherboard configuration, then used the OEM customization tools to set defaults and lock/hide access to some options. Now, using my copy of the same customization tools, I have unlocked/revealed all hidden BIOS options while leaving the defaults as configured by Soyo. These previously hidden options are now visible and accessible in the BIOS. The BIOS is not otherwise affected.
• BONUS: A list of Setup and BIOS defaults, which are slightly different ( "setup" defaults typically include slightly more aggressive timings than BIOS defaults).
• It is best not to change settings you don't understand. If a wrong setting prevents the board from booting, simply unplug power and look for jumper JP5 (usually near the CMOS battery or Dallas chip). Shorting this pin for 5 seconds resets the BIOS back to its defaults>
• If you prefer to receive the original unmodified Soyo BIOS, I can replace with that at no charge. Just let me know in a message when you place the order.
