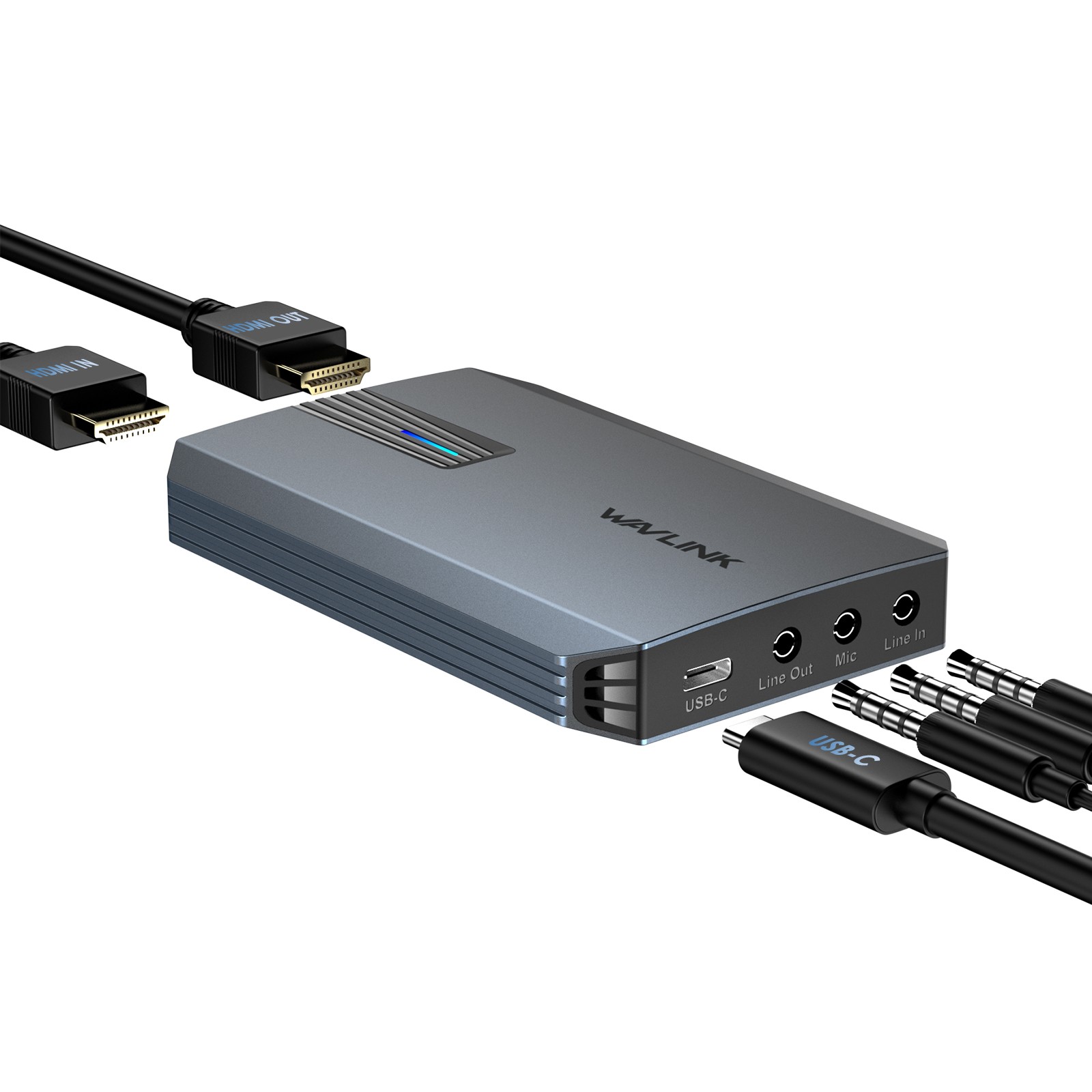

WAVLINK 4K30/2K60/1080p120 Capture Card Up to 4K60 HDR10/ 2560x1440@144hz/ 1080p

Price: US $75.99

Black

WAVLINK 4K HDMI Video Capture Card: Complete Streaming Solution
The HG901U video capture card is a versatile and reliable streaming solution that empowers you to capture, record, and broadcast stunningly detailed videos.
Supports a maximum input resolution of up to 4K@60Hz and captures at 4K@30Hz. It does not require driver installation and is compatible with any streaming
software, allowing you to unleash your creativity by using third-party software to capture or stream HD games or other HD video sources. Power your workflow
with ultra-low latency technology.

【4K UHD Video Capture】 Record your gameplay with high refresh rates of up to 4K@30hz/2560x1440@60hz/1080p60. Enjoying VRR pass-through at 4K60
HDR10/ 2560x1440@144hz/ 1080p@240hz. *Please ensure that your tablet or phone supports video output if you are using it as an input device.

【Ultra-low Latency】With ultra-low latency of 34ms on the pass-through signal, Say goodbye to lag and interruptions during gaming and streaming. This
video capture card does not support HDCP.

【Wide Application】Compatible with a range of game consoles including PS5, Xbox One X/S, and Switch, and able to stream on various platforms such as
OBS, Streamlabs, Vmix, Zoom, Microsoft Teams, Stream to YouTube, Twitch, Facebook Gaming and more.

【Plug-and-Play Convenience】 Compatible with various operating systems, including Windows 7/8/10/11 or later, Mac OS 10.12 or later, Android 9 or later,
and Linux. Enjoy the hassle-free plug-and-play setup without complex driver installation or an external power supply.

【Superior Audio Capture】 The hdmi streaming card offers optional audio capture, allowing you to create immersive live streams by capturing both video
and high-quality sound simultaneously. Its standard 3.5mm audio ports enable seamless integration of headphone, microphone and mixing console, making
it perfect for adding commentary, music, or interviews to your live streaming sessions, meetings, or video recordings.

【About After Sales】Please feel free to contact us if you have any question.Phone support: +18889730883 ( UTC-5 ) Mon -Fri 9AM -6PM. email support:
[email removed by ]. We will provide solutions within 8 h, life-long technical support.

Hardware Connection
Step 1: Connect the video source device to the HDMI IN port via the HDMI cable.
Step 2: Connect your laptop to the USB-C port via Type-C cable.
Step 3: Connect the monitor to the HDMI OUT port.

OBS Installation and Configuration
1)Connect your devices to this Video Capture Card following the "Hardware Connection" and then download the software from [link removed by ] and complete
the OBS installation.
2)You can change the software language in " Settings->General" from the bottom-right list on the screen.

Ultra-Clear Resolution
1)Input/Loop Out: 4K@60Hz/ 2K@144Hz/ 1080P@240Hz
2)Recording/Live Stream Capture: 4K@30Hz/ 2K@60Hz/ 1080P@120Hz

Specification
1.Model: WL-HG901U
2.Ports: 1 x HDMI IN(4K@60Hz);1 x HDMI OUT(4K@60Hz);1 x Type-C(4K@30Hz);1 x 3.5mm Line in;1 x 3.5mm Line out;1 x 3.5mm Mic in
3.Power Supply: Type-C 5V
4.Unit Size: 11 x 7.3 x 1.6cm/4.3 x 2.9 x 0.6in (L x W x H)
5.Weight: 120g/4.2oz
6.Cable Length: HDMI(F) to HDMI(F) Cable:100cm/39.4in; USB-A to USB-C Cable:100cm/39.4in
7.Housing: ABS + Aluminum Alloy
8.Status LED: Blue

Features
-Support Max 4K@60Hz Video Input with 1 x HDMI 2.0 IN Port.
-Support Video Passthrough with 1 x HDMI 2.0 OUT Port.
-Support Max 4K@30Hz Capture.
-Support third-party softwares like OBS to capture and stream your videos from various input sources like game consoles, cameras and so on.
-Support USB 3.0 Type-C port for UVC/UAC and compatible with USB 2.0 Interface.
-Support UVC Output Format : YUY2/NV12.
-Support 3.5 mm Line In and 3.5mm MIC for External Audio Input.
-Support 3.5 mm Line Out for External Audio Output.
-Compatible with Multiple Operating Systems such as Mac, Windows, Linux, Android and so on.
-Support UVC1.0/1.1/ 1.5. UAC 1.0.
-Support HDR10 to SDR conversion.

System Requirement
-CPU: Intel Core i5 or higher
-RAM: 8G or higher
-Windows 7/8/10/11 or later
-Mac OS 10.12 or later
-Android 9 or later
-Linux

In the Box
1x 4K@60Hz HDMI Grabber G2 PRO
1x HDMI(F) to HDMI(F) Cable
1x USB-A to USB-C Cable
1x USB-A to USB-C Converter
1x Quick Start Guide

Warm Tips
1. The video capture card is plug-and-play. No drivers are needed.
2. Check if your video source supports 4K resolution. If not, change the resolution to 1920x1080 in settings.
3. Please ensure that your tablet or phone supports video output if you are using it as an input device.
4. This video capture card does not support HDCP.

Silver

WAVLINK 4K HDMI Video Capture Card: Complete Streaming Solution
The HG900U video capture card is a versatile and reliable streaming solution that empowers you to capture, record, and broadcast stunningly detailed videos.
Supports a maximum input resolution of up to 4K@60Hz and captures at 4K@30Hz. It does not require driver installation and is compatible with any streaming
software, allowing you to unleash your creativity by using third-party software to capture or stream HD games or other HD video sources. Power your workflow
with ultra-low latency technology.

【4K UHD Video Capture】 Record your gameplay with high refresh rates of up to 4K@30hz/2560x1440@60hz/1080p60. Enjoying VRR pass-through at 4K60
HDR10/ 2560x1440@144hz/ 1080p@240hz. *Please ensure that your tablet or phone supports video output if you are using it as an input device.

【Ultra-low Latency】With ultra-low latency of 34ms on the pass-through signal, Say goodbye to lag and interruptions during gaming and streaming. This
video capture card does not support HDCP.

【Wide Application】Compatible with a range of game consoles including PS5, Xbox One X/S, and Switch, and able to stream on various platforms such as OBS, Streamlabs, Vmix, Zoom, Microsoft Teams, Stream to YouTube, Twitch, Facebook Gaming and more.

【Plug-and-Play Convenience】 Compatible with various operating systems, including Windows 7/8/10/11 or later, Mac OS 10.12 or later, Android 9 or later,
and Linux. Enjoy the hassle-free plug-and-play setup without complex driver installation or an external power supply.

【Superior Audio Capture】 The hdmi streaming card offers optional audio capture, allowing you to create immersive live streams by capturing both video and
high-quality sound simultaneously. Its standard 3.5mm audio ports enable seamless integration of headphone, microphone and mixing console, making it perfect
for adding commentary, music, or interviews to your live streaming sessions, meetings, or video recordings.

Ultra-Clear Resolution
1)Input/Loop Out: 4K@60Hz/ 2K@144Hz/ 1080P@240Hz
2)Recording/Live Stream Capture: 4K@30Hz/ 2K@60Hz/ 1080P@120Hz

Specification
1.Model: WL-HG900U
2.Ports: 1 x HDMI IN(4K@60Hz);1 x HDMI OUT(4K@60Hz);1 x Type-C(4K@30Hz);1 x 3.5mm Line in;1 x 3.5mm Line out;1 x 3.5mm Mic in
3.Power Supply: Type-C 5V
4.Unit Size: 11 x 7.3 x 2cm/4.3 x 2.9 x 0.8in (L x W x H)
5.Weight: 120g/4.2oz
6.Cable Length: HDMI(F) to HDMI(F) Cable:100cm/39.4in; USB-A to USB-C Cable:100cm/39.4in
7.Housing: ABS + Aluminum Alloy
8.Status LED: Blue

System Requirement
-CPU: Intel Core i5 or higher
-RAM: 8G or higher
-Windows 7/8/10/11 or later
-Mac OS 10.12 or later
-Android 9 or later
-Linux

In the Box
1x 4K@60Hz HDMI Grabber G1 PRO
1x HDMI(F) to HDMI(F) Cable
1x USB-A to USB-C Cable
1x USB-A to USB-C Converter
1x Quick Start Guide
