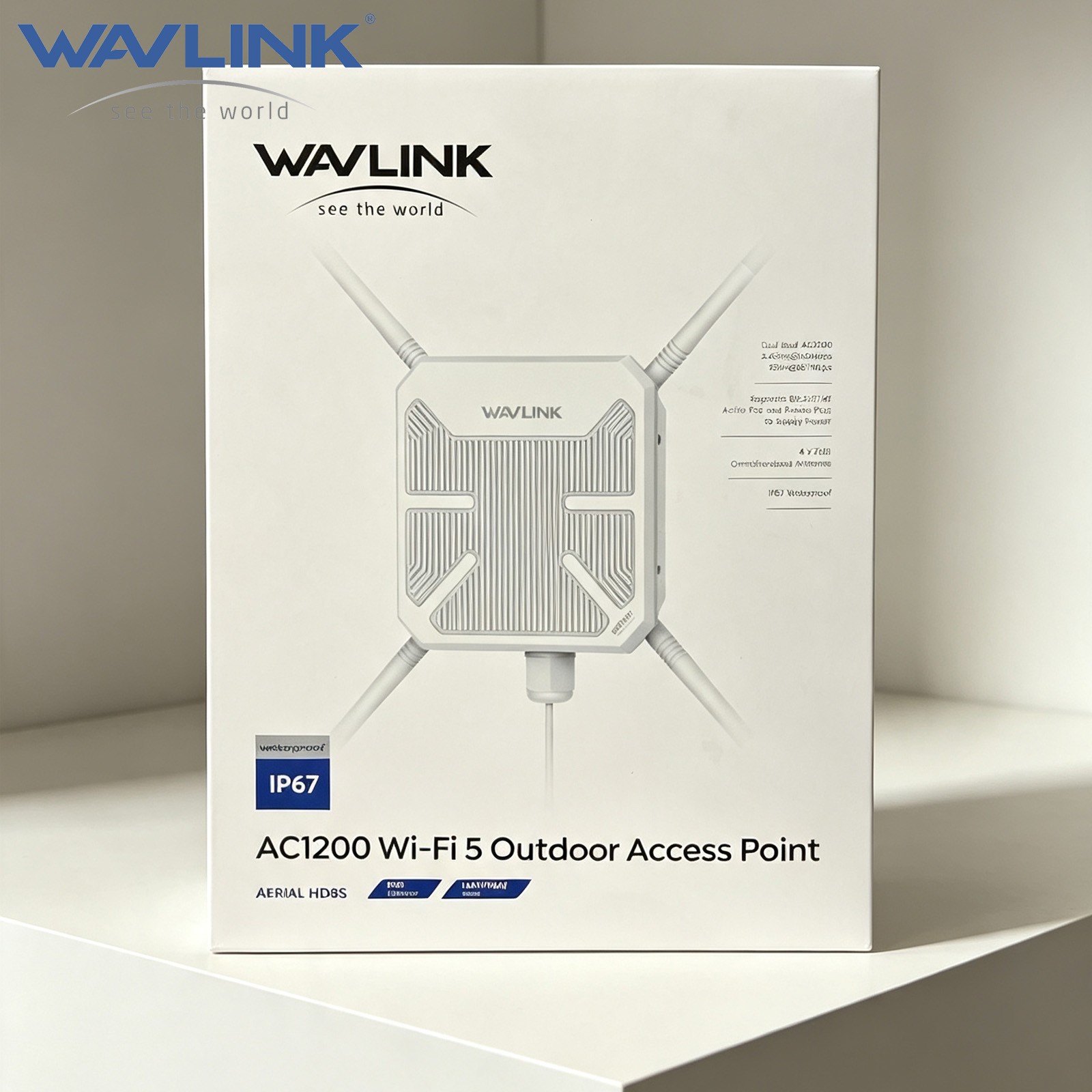

WAVLINK AC1200 Wi-Fi 5 Outdoor Access Point, Long-Range Weatherproof Dual-Band Wi-Fi Extender with 4 x 7dBi Omni Antennas, PoE, Gigabit Port, Supports AP/Repeater/Mesh Modes for Courtyard, Fish Finder
[Upgrade to Wi-Fi 5]Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHz@867Mbps. Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU-MIMO, Beamforming, reducing interference for stable, wider coverage, and increased device connectivity.
[Expand Coverage Area]Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and built-in high-power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals, extending the range of the router or access point up to 300 meters.
[Professional Outdoor Design]Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20ºC to 50ºC temperature range, ensuring stable operation in various weather conditions.
[Flexible Mode Selection]AP/Repeater/Router mode: Connects to most wireless signals, including Starlink. Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch. Also compatible with Wavlink AC controller for unified management in large networks.
[Powered by PoE]Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices in locations without power source.
Experience High-Speed Wi-Fi 5 Anywhere with WAVLINK Professional Outdoor Access Point
Experience the power of AC1200 Dual Band outdoor extender - Amplify and extend existing 2.4GHz and 5GHz wireless signals for wider coverage, reaching areas beyond router reach. Simplified by PoE, this high-power outdoor Wi-Fi solution offers flexible installation anywhere, anytime. Choose from various operating modes with professional outdoor design to withstand environmental changes, catering to diverse outdoor connectivity needs. Ideal for resolving warehouse dead spots and ensuring stable network connection for your fishing gear on-the-go.
How to Install the Ethernet Cable?
① Pass the RJ45 cable through the waterproof connector cover.
② Screw the waterproof seal into the waterproof connector bracket.
③ Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④ Put the waterproof sealing ring on the waterproof connector bracket.
⑤ Connect the RJ45 cable to WAN/LAN port.
⑥ Connect the 2.4G and 5G antennas to the corresponding connectors.
Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand ""Wavlink"" that support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.
Specification:
Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)
In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide
