WAVLINK · OUTDOOR WiFi 6 SERIES Four Antenna Patterns.
One Outdoor Platform. From AX1800 all-round coverage to 3km point-to-point links and high-density 256-device deployments.
Match the antenna pattern to your terrain — every model is IP67, PoE powered and 15kV ESD protected. 📊 Model Comparison — Choose the Right Outdoor APMatch the antenna pattern to your site and device densityCategoryAX1800 WiFi 6 Extender AX3000 WiFi 6 Extender
(4x 8dBi Antennas) AX3000 WiFi 6 Extender
(4x 12dBi Antennas-Built-in) AX3000 WiFi 6 Extender(6x 7dBi Antennas) Frequency / Speed2.4G 574Mbps
5G 1201Mbps
1800Mbps2.4G 573Mbps
5G 2402Mbps
3000Mbps2.4G 573Mbps
5G 2402Mbps
3000Mbps2.4G 573Mbps
5G 2402Mbps
3000MbpsAntennas4 × 8dBi Omni
Fiberglass tube4 × 8dBi Omni
Fiberglass tube4 × 12dBi Directional
Built-in6 × 7dBi Omni
3 per band, detachableMax DevicesUp to 128Up to 256Up to 256Up to 256Coverage Type360° All-Around360° All-AroundUp to 3km PtP/PtMPHigh-Density OmniEthernet PortWAN/LAN GigabitWAN/LAN GigabitWAN/LAN GigabitWAN/LAN GigabitOperation ModesMesh · AP · Router · Repeater · AP+RepeaterMesh · AP · Router · Repeater · AP+RepeaterMesh · AP · Router · Repeater · AP+RepeaterRouter · AP · Range Extender · Mesh Router · Mesh Extender · Fat/Fit APWeatherproofIP67 · 15kV ESDIP67 · 15kV ESDIP67 · Lightning protectionIP67 · 15kV ESDPoE PowerActive + PassiveActive + Passive802.3AF/AT + Passive802.3AT/AF + PassiveWireless SecurityWPA2-PSK · WPA2/WPA3-MIXWPA2-PSK · WPA2/WPA3-MIXWPA2-PSK · WPA2/WPA3-MIXOPEN · WPA2-PSK · WPA3/WPA2 MIXProduct Weight1109g / 39.1oz1109g / 39.1oz1050g / 37oz552g / 19.5ozBest ForBalanced all-around coverage — solar cameras around an AP, open yards and plazas. The budget-friendly entry into outdoor WiFi 6.Higher throughput for the same 360° pattern — streaming, gaming and heavier IoT loads across a full property.Cameras lined up in one direction, 500m–3km PtP/PtMP links, or signals that must push through sparse trees.Extremely large open areas and dense device counts — up to 256 clients with the strongest omni array in the lineup. ◆ All models: WiFi 6 · IP67 · 15kV ESD · PoE Active + Passive · Mesh ready ◆ AX1800 · 4×8dBi OMNI · 360° ALL-AROUNDAX1800 WiFi 6 Extender 1800Mbps|Up to 128 Devices|IP67|Fiberglass Tube AntennasWN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; the 4 × 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps + 5GHz 1201Mbps); supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.📡 Fiberglass Tube High Gain Antennas4 × 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.🛡️ IP67 Waterproof EnclosureEquipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.🔌 PoE Power SupplyBoth active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.📶 574Mbps on 2.4G & 1201Mbps on 5GDual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.⚡ High Power AmplifiersDual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.🔒 Advanced WiFi SafeguardWPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.🔧 SPECIFICATION — AX1800 WiFi 6 Extender • Product Size (without antennas): 24 × 24 × 7 cm / 9.4 × 9.4 × 2.8 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Antennas 40cm/15.7in · Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (574Mbps) + 5GHz (1201Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 4 × 8dBi Omnidirectional Antennas

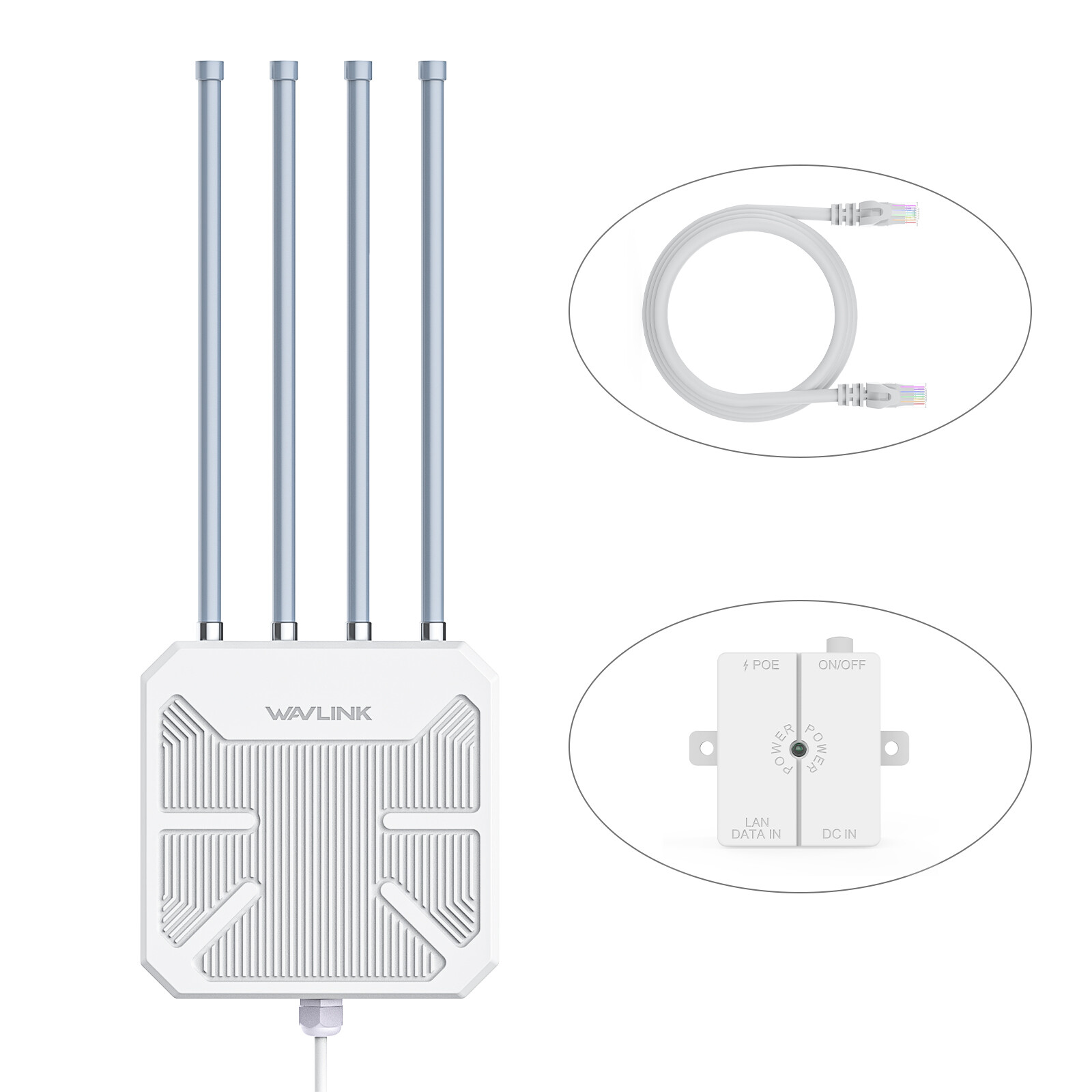

• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × Wi-Fi 6 Outdoor Mesh Router / AP / Repeater
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
Passive PoE (Optional):
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1. AX3000 · 4×8dBi OMNI · 360° ALL-AROUNDAX3000 WiFi 6 Extender(4x 8dBi Antennas) 3000Mbps|Up to 128 Devices|IP67|Fiberglass Tube AntennasWN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; the 4 × 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.📡 Fiberglass Tube High Gain Antennas4 × 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.🛡️ IP67 Waterproof EnclosureEquipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.🔌 PoE Power SupplyBoth active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.📶 573Mbps on 2.4G & 2402Mbps on 5GDual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.⚡ High Power AmplifiersDual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.🔒 Advanced WiFi SafeguardWPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.🔧 SPECIFICATION — AX3000 WiFi 6 Extender(4x 8dBi Antennas) • Product Size (without antennas): 24 × 24 × 7 cm / 9.4 × 9.4 × 2.8 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Antennas 40cm/15.7in · Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight (without antennas): 1109g / 39.1oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 4 × 8dBi Omnidirectional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
Passive PoE (Optional):
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required) and WN573HX3. AX3000 · 4×12dBi DIRECTIONAL · PtP/PtMP UP TO 3KMAX3000 WiFi 6 Extender(4x 12dBi Antennas-Built-in) 3000Mbps|Up to 3km / 1.9mi|IP67|Built-in 12dBi Directional📡 3km Wireless Data TransmissionSpecially designed for outdoor uses, ideal for long distance wireless data transmission over 3km / 1.9 miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.🛡️ Designed for Harsh Outdoor ConditionsIP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions.
Note: The PoE part of the router is not waterproof.🚀 Enjoy True WiFi 6 SpeedThe next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.🔌 Optional PoE Power SupplySupports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.📶 Seamless WiFi RoamingThe built-in 4 × 12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology — one-click brings more device connections, greatly expanding the WiFi coverage and eliminating every network dead zone.🧩 Multiple Modes, Flexible UseSupports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.🔧 SPECIFICATION — AX3000 WiFi 6 Extender(4x 12dBi Antennas-Built-in) • Product Size: 24 × 24 × 7 cm / 9.4 × 9.4 × 2.8 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight: 1050g / 37oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 4 × 12dBi Directional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8×25MM Screw Plugs 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤ The real performance of the product may vary in accordance with different environmental conditions. AX3000 · 6×7dBi OMNI · HIGH-DENSITY · UP TO 256 DEVICESAX3000 WiFi 6 Extender(6x 7dBi Antennas) 3000Mbps|Up to 256 Devices|IP67|Gigabit WAN/LANWN588HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 6 × 7dBi high gain antennas provide better wireless performance and super fast transmission rates; supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.⭐ FEATURES • Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
• Supports one WAN/LAN Ethernet Gigabit port.
• Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
• 3 × 7dBi 5GHz + 3 × 7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
• Supports Router / AP / Range Extender / Mesh Router / Mesh Extender mode.
• Encryption type: OPEN · WPA2-PSK · WPA3/WPA2 MIX.
• Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
• Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
• Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
• Supports Fat AP Mode.
• Supports Fit AP Mode with WAVLINK AC controller. 🔧 SPECIFICATION — AX3000 WiFi 6 Extender(6x 7dBi Antennas) • Product Size: 17 × 17.3 × 5.1 cm / 6.7 × 6.8 × 2 in
• PoE Converter Size: 4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 in
• Length: Ethernet Cable 100cm/39.4in · Power Adapter Cable 130cm/51.2in
• Product Weight: 552g / 19.5oz
• Standard: IEEE 802.11 ax/ac/a/n/g/b
• Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA2-PSK · WPA2/WPA3-MIX
• Antennas: 6 × 7dBi Directional Antennas
• PAIR/RESET LED: Blue · PoE Converter Status LED: Green 📦 IN THE BOX • 1 × AX3000 WiFi 6 Outdoor Access Point
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 6 × 7dBi Antennas
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5×25MM Screw Plugs
• 1 × Quick Start Guide 💡 WARM TIPS ① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④ The real performance of the product may vary in accordance with different environmental conditions. Which Outdoor AP Fits Your Site?AX1800 · 4×8dBi Omni
Balanced all-around coverage on a budget — solar cameras circling an AP, open yards and plazas. Up to 128 devices at 1800Mbps. AX3000 · 4×8dBi Omni
The same 360° all-round pattern with double the throughput — 3000Mbps for streaming, gaming and heavier IoT loads. Up to 128 devices. AX3000 · 4×12dBi Directional
Cameras lined up in one direction, ultra-long-range PtP/PtMP links up to 3km, or signals that must push through sparse trees. Maximum reach, one direction. AX3000 · 6×7dBi Omni
Extremely large open areas and dense device counts — up to 256 clients with the strongest omni array in the lineup. Lightest body at 552g and the only model with Fat/Fit AP support. USE THE DROPDOWN ABOVE TO SELECT YOUR MODELWAVLINKOUTDOOR AP · WiFi 6 · AX1800 / AX3000 · IP67 · MESH · PoE
