WAVLINK Networking Solutions – Wi-Fi & Ethernet Adapters WAVLINKNetworking Solutions
Quick Comparison – Wireless & Wired AdaptersTable 1 – Wireless Adapters (Wi‑Fi 6E & 7)ModelInterfaceMax SpeedBluetoothAntennasOS SupportForm FactorWN675X3M (Wi‑Fi 6E)M.2 (Key A/E)5400 Mbps (2.4+5+6 GHz)5.3Internal (laptop)Win 10/11, Linux 5.10+Laptop moduleWN675X3‑C (Wi‑Fi 6E)PCIe x1/x4/x8/x165400 Mbps (2.4+5+6 GHz)5.32× 5dBi externalWin 10/11, LinuxDesktop (low‑profile)WN675X3 (Wi‑Fi 6E)PCIe x1/x4/x8/x165400 Mbps (2.4+5+6 GHz)5.31× external with magnetic baseWin 10/11, LinuxDesktop (magnet base)WN685BE3M‑A (Wi‑Fi 7)M.2 (Key A/E)8774 Mbps (2.4+5+6 GHz)5.4Internal (laptop)Win 10/11 (64‑bit)Laptop moduleWN685BE3‑B (Wi‑Fi 7)PCIe x1/x4/x8/x168774 Mbps (2.4+5+6 GHz)5.42× 5dBi externalWin 10/11 (64‑bit)Desktop (low‑profile)WN685BE3‑A (Wi‑Fi 7)PCIe x1/x4/x8/x168774 Mbps (2.4+5+6 GHz)5.41× external with magnetic baseWin 10/11 (64‑bit)Desktop (magnet base)
Note: All wireless adapters support WPA3 security, OFDMA, MU‑MIMO, and 6 GHz band (requires Windows 11 for 6 GHz). Speeds are theoretical maximums; actual performance depends on router and environment.
Table 2 – Wired Network Cards (1G – 10G)ModelMax SpeedChipsetPortsJumbo FrameOS SupportBracketsWL‑NWP00410 GbpsAQC113C‑B11× RJ4516 KBWin 11/10, Linux 3.10+Low‑profile + StandardWL‑NWP0035 GbpsRTL81261× RJ4516 KBWin 11/10, LinuxLow‑profile + StandardWL‑NWP0022.5 GbpsRTL8125B1× RJ4516 KBWin 11/10/8.1/8/7, LinuxLow‑profile + StandardWL‑NWP0011 GbpsRTL8111H1× RJ459 KBWin 11/10/8.1/8/7/XP/Vista, LinuxLow‑profile + Standard
Note: All wired cards support Wake‑on‑LAN, PXE boot, and work with CAT5E cables (no CAT6 required). Speeds are theoretical; actual throughput may vary.
Buying Guide – Which Adapter Is Right for You? 📶 For Laptop Upgrades → M.2 Modules (Wi‑Fi 6E or 7)
If your laptop has a Key A/E M.2 slot, upgrading to Wi‑Fi 6E (WN675X3M) or Wi‑Fi 7 (WN685BE3M‑A) gives you tri‑band speed, Bluetooth 5.3/5.4, and lower latency for gaming and streaming. Perfect for future‑proofing your portable device. 🖥️ For Desktop PCs – Wireless → PCIe Cards with External Antennas
Choose from Wi‑Fi 6E (WN675X3‑C / WN675X3) or Wi‑Fi 7 (WN685BE3‑B / WN685BE3‑A). The low‑profile bracket fits small cases, and the magnetic‑base antenna lets you position for best signal. Ideal for gaming, VR, and 4K/8K streaming. 🔌 For Wired Networking – 1G to 10G PCIe Cards
• WL‑NWP001 (1G) – Reliable, budget‑friendly upgrade for older PCs or office work.
• WL‑NWP002 (2.5G) – Sweet spot for gamers and home servers with QoS prioritization.
• WL‑NWP003 (5G) – Prosumer choice for video editing and fast NAS transfers.
• WL‑NWP004 (10G) – Ultimate speed for workstations and high‑end servers, with USB drive for easy driver install. ✅ All Products Share:
- Easy installation with included brackets and screws
- Robust metal shielding for EMI reduction and stable performance
- Wide OS compatibility (Windows & Linux)
- 12‑month warranty with extended coverage for registered users

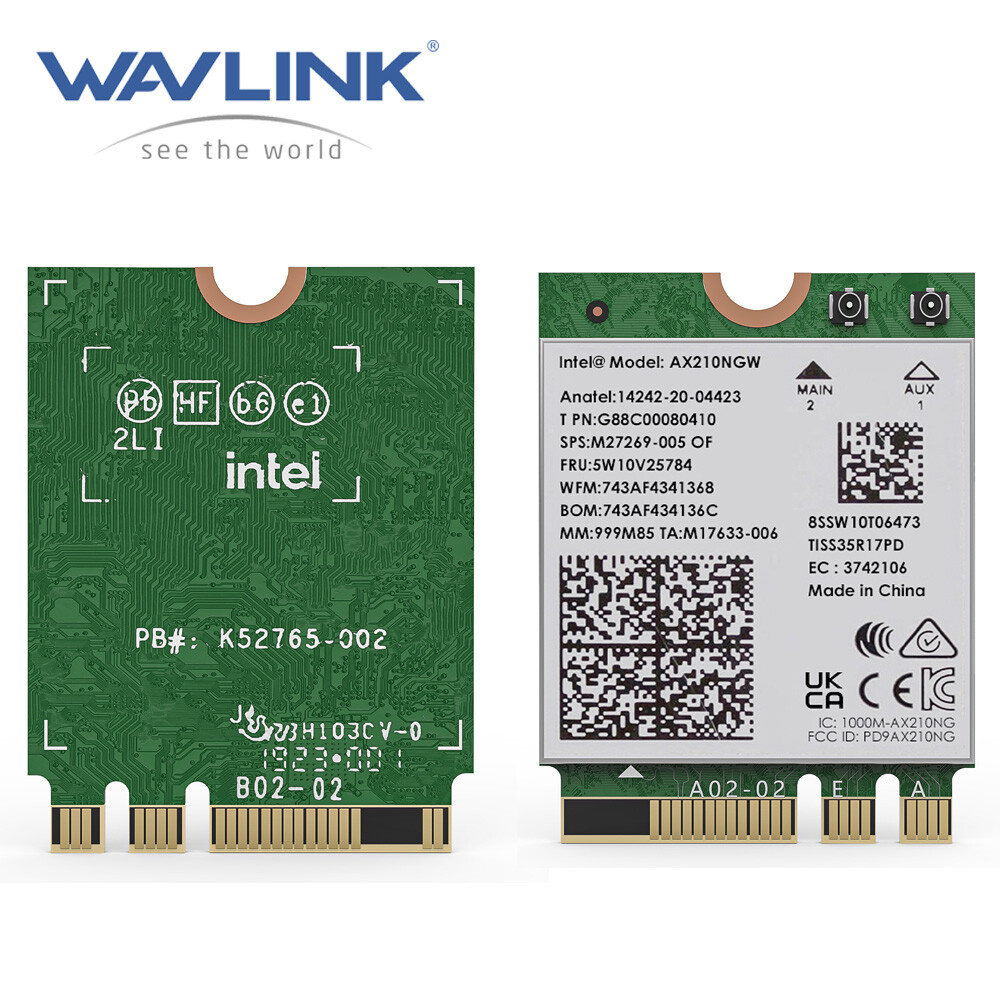

WiFi 6E Wireless Card (M.2)
WAVLINK WiFi 6E Wireless Card, Intel AX210NGW Tri-Band 5400Mbps 2.4GHz/5GHz/6GHz Network Adapter with Bluetooth 5.3 for Laptop, Ultra-Low Latency, Support Windows 10/11 (64bit) M.2/NGFF
Features:
【Powerful Wi-Fi 6E Technology】: Expand to the clearer, broader 6GHz band for more bandwidth and faster speeds. Heartily enjoy 8K movies, large file transfer and massive multiplayer online games with fewer dropped connections on 5GHz/6GHz band. 2.4GHz band for basic internet needs including online chat and email.
【Tri-Band Super High Speed】: In contrast to the overcrowded 2.4GHz and 5GHz bands, the spacious 6GHz spectrum is exclusively dedicated to efficient WiFi 6E connections, resulting in a significant reduction in network congestion. Experience a remarkable boost in your overall speeds with up to 2400Mbps(6 GHz), 2400Mbps(5 GHz), and 574Mbps(2.4 GHz).
【Newest Bluetooth 5.3 Function】: Bluetooth 5.3 provides 4x range over Bluetooth 4.2, doubles the transmit speed for faster transmissions thereby reducing the overall power. Ideal for Bluetooth TWS(True Wireless Stereo) earbuds, headset, keyboard, mouse and others for more convenience and demands with this WiFi 6E module. Backwards compatible with BT5.1, 5.0, 4.2, 4.0, 3.0, 2.1.
【Minimized Lag for Your PC】: This Wi-Fi 6E card brings your laptop’s WiFi reception to the next level with the combination of OFDMA and MU-MIMO. Enhance the efficiency of your laptop's WiFi connection by enabling multiple devices to communicate simultaneously with your router, eliminating the need for data queuing and Windows 10/11(64bit) & Linux 5.10+. Driver installation required from the website. Enables Key A or E M.2 socket to attach the module. (Not for Key M and B, Key M and B is used in SSD). Please make sure there is M.2 connector in your laptop.
Specification
Product Model: WN675X3M
Chipset: Intel AX210NGW
Transmission Rate: 2.4GHz: 574Mbps 5GHz: 2400Mbps 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Bus Interface: M.2/NGFF Key-A or Key-E
Package Size: 22mm x 30mm (0.9in x 1.2in )
Support System: Win 11/10 (64 bit), Linux 5.10+
Bluetooth Version: Bluetooth 5.3
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption
Package Contents:
-1x WiFi 6E AX5400 M.2 Module
-1x Screwdriver+Screw
-1x User Manual
Knowing the following will give you a better product experience:
1. This laptop wifi card is available for laptops with an M.2 slot (key A or E).
2. Download the driver from the Intel/WAVLINK website.(It is recommended to download the driver first and then install the network card.)
3. Requires a WiFi 6E router and the PC must be on Windows 11 version to enable the 6GHz band.
4. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance.
5. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
6. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors may affect the speed.
WiFi 6E PCIe Wireless Card-w/2 brackets
WAVLINK 2023 New AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC
Features:
⭐Upgrade WiFi 6E Standard: This WiFi 6E network card offers enhanced capacity and improved performance. It supports the latest 802.11ax technology, including features like OFDMA, MU-MIMO, 1024QAM, and Target Wake Time (TWT). With these advanced technologies, it provides a high-speed data rate even in dense or congested environments. Whether you're streaming, downloading, or gaming, this network card ensures an incredibly fast connection with ultra-low latency, delivering an exceptional gaming experience.
⭐Lag-Free Connection: The Intel AX210 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 2400Mbps on 6GHz. The 2.4GHz band is suitable for long-range transmission, while the 5GHz band is perfect for gaming and streaming in 4K resolution. The 6GHz band provides an ideal environment for ultra-smooth and real-time gaming, as well as an immersive VR experience.
⭐Bluetooth 5.3 & WPA3 Security: The latest BT5.3 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.
⭐ Faster, Smoother and Broader: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. 1024-QAM and a 160MHz bandwidth deliver powerful, continuous Wi-Fi signal, achieving speeds 3× faster than standard AC Wi-Fi. With the advanced OFDMA technology, lag is reduced by up to 75%, just say goodbye to buffering and delays, and enjoy unparalleled speed and responsiveness with this exceptional Wi-Fi solution.
⭐Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem
Specification
Product Model: WN675X3-C(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA2/WPA3, WPA2-PSK encryption
Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
WiFi 7 Wireless Card (M.2)
WAVLINK WiFi 7 Wireless Card, 8774Mbps Tri-Band BE200 M.2 NGFF Network Module with Bluetooth 5.4, MU-MIMO, WPA3, Support Windows 10/11(64-bit) Laptop, Not Support AMD
Features:
⭐Pioneering Wi-Fi 7 Technology: WiFi 7 technology represents the latest evolution in wireless networking, offering ultra-fast speeds, reduced latency, and enhanced efficiency. With advanced features like increased 320MHz bandwidth, improved security, 4096-QAM and support for more devices, WiFi 7 sets a new standard for high-performance connectivity.
⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
⭐Bluetooth 5.4: Building upon Bluetooth 5.3, Bluetooth 5.4 introduces features like LE Enhanced Connection, Host Set Controller Key Length, and LE Channel Hierarchy functions, resulting in lower latency, improved anti-interference capabilities, and reduced energy consumption.
⭐Installation Requirements: Compatible with motherboards featuring Intel CPUs and M.2 network slots that support NGFF M.2 A/E key(Not applicable to Key M and B which used for SSDs). Ideal for expanding or upgrading wireless capabilities of laptops, PCs, industrial controllers, NAS devices, etc., that are equipped with M.2 interface slots.
⭐Compatible Syetems: Compatible with Windows 10/11(64-bit). The driver must be installed on the operating PC (search for ""685BE3M"" on the official WAVLINK website to download and install the driver). Not support for all devices whose motherboard has AMD chips.
Specification
Product Model: WN685BE3M-A(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with NGFF M.2 A/E Key Slot
Wireless Security: WPA3/WPA2 encryption
Package Contents
-1x WiFi 7 BE8800 M.2 Module
-1x Screwdriver
-1x Screw
-1x User Manual
Warm Tips
1. This Wi-Fi card will not boost the speed of the original router, which only helps your computer receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
2. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
3. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
WiFi 7 PCIe Wireless Card-w/2 brackets
WAVLINK 2024 New BE8800 WiFi 7 PCIe Network Card, Tri-Band BE200 Wireless Adapter with Bluetooth 5.4, MU-MIMO, WPA3, Low-Profile Bracket, Heat Sink, for Windows 10/11 Desktop PC
Features:
⭐Pioneering Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.
⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.
⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous (HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more data into the waveform signal, featuring faster data transfer rate and better overall network performance.
⭐Compatiblity & Warranty: Compatible with Windows 10/11 for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots(Not support for all devices whose motherboard has AMD chips). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.
Specification
Product Model: WN685BE3-B(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption
Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
WiFi 6E PCIe Wireless Card-w/baseWavlink New AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC
⭐Upgrade to Next-Gen WiFi 6E: Comes with a greater capacity and improved performance, this WiFi 6E network card supports the latest 802.11ax technology, such as OFDMA, MU-MIMO, 1024QAM, Target Wake Time(TWT). It delivers a high-speed data rate even in dense or congested environments and gives you an incredibly fast gaming experience with ultra-low latency.
⭐Lag-Free Connection: Intel AX210 chipset extends WiFi into 6GHz band, updating your wifi to tri-band with maximum speeds up to 574Mbps on 2.4GHz, 2400Mbps on 5Ghz, 2400Mbps on 6Ghz. 2.4GHz for the long range transmission, 5GHz for gaming and 4K streaming, while 6GHz is ideal for ultra-smooth and real-time gaming or an immersive VR experience.
⭐Bluetooth 5.3 & WPA3 Security: The newest BT5.3 provides a powerful wireless data connection between your computer and Bluetooth enabled devices, with 2x faster transmission speeds, 4x greater range. In addition, advanced WPA3 security protocol greatly protects the network from hackers and malware, letting you relax with a peace of mind and just enjoy the high-speed WiFi.
⭐High Gain Antennas & Magnetized Base: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. With a magnetized base and 3.6ft RF cable, you can place it anywhere--your desktop or the computer chassis, to get optimal wireless signal. Easily install with the standard or low profile bracket.
⭐Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.
Specification
Product Model: WN675X3(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption
Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna
-1x Low Profile Bracket
-2x Screws
-1x Drivers Download Card
-1x User Manual
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
WiFi 7 PCIe Wireless Card-w/baseWAVLINK BE8800 WiFi 7 PCIe Network Card for Desktop PC, Tri-Band BE200 Wireless Adapter with Bluetooth 5.4, MU-MIMO, WPA3, for Windows 10/11(64bit), Not for AMD Motherboard
⭐Pioneering Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.
⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.
⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous (HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more data into the waveform signal, featuring faster data transfer rate and better overall network performance.
⭐Wider Coverage & Compatiblity: Boost your Wi-Fi reception using two high-performance, multi-directional antennas with a magnetized base. Adjust the antenna base to find the optimal signal reception location on your desktop. This device is compatible with Windows 10/11 for desktop PCs, and you can download the driver from our website. It works with PCIe X1/X4/X8/X16 slots (Not compatible with AMD motherboards).
Latest Bluetooth 5.4
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.
Powerful BE200 Chip
The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for Wi-Fi: UHB (Ultra High Band).
Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.
Adjustable Antennas for Peak Performance
Easily find the optimal location for the strongest Wi-Fi signal with adjustable, high-performance antennas with magnetic base.
Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.
Steps to Install the Wi-Fi Card
1. Power off the PC, open the case, find one available PCIe slot.
2. Insert the PCIe into the corresponding slot. Works with PCIe x1, x4, x8, x16.
3. Plug the BT cable into the 9-pin USB connector on the motherboard and the 4-pin connector on the card.
4. Install the antennas, adjust the dock accordingly for better signal.
5. Download and install the driver from WAVLINK official website. Then, enjoy！
Specification
Product Model: WN685BE3-A(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption
Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna Dock
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
5G Base-T PCIe Network CardWAVLINK 5G Base-T PCIe Network Card, 5000/2500/1000Mbps PCI Express Ethernet Adapter with RTL8126, 5G NIC for Windows 11/10 & Linux with Low Profile Bracket
⭐5G High-Speed Transmission: This 5G network card ushers in a new era of network transmission speed, offering speeds up to 5 times faster than traditional gigabit rates. It provides an exceptional online experience, ensuring swift file transfers, seamless HD video streaming, and lag-free online gaming.
⭐PCIe to 5G RJ45: It accommodates various PCI Express slot configurations, such as x1, x4, x8, and x16, enabling seamless installation and interchangeability across different motherboards to meet diverse hardware layouts and needs. Note: Compatible with PCI-E slots only, not for PCI slots.
⭐Seamless OS Compatibility: Whether you're utilizing the newest Windows 11 or 10, or even Linux operating systems, this network card guarantees seamless compatibility. This eradicates worries about system compatibility and grants you the complete convenience of high-speed networking.
⭐Flexible Bracket Versatility: Engineered with low-profile and standard bracket, this 5G network card provides heightened flexibility for diverse computer arrangements. Irrespective of your computer's specifications, effortless installation is ensured, optimizing your hardware setup.
⭐Robust Metal Shielding: Minimizes electromagnetic interference, enhancing stability and reliability with every connection. (Tip: Please remove the plastic film from the PCI-e interface before connecting to the PC's PCI-e slot.) Excellent heat dissipation can reduce the temperature quickly and maintain the stability of network transmission.
Excellent Heat Sink
Organ cooler design for fast heat dissipation and stable network card performance.
RTL8126 Chipset
It enhances data transfer speeds, supports various data rates, and provides stable and reliable network transmissions.
Seamless Upgrade, No Cable Changes
This card works with CAT5E cables, eliminating the requirement for expensive CAT6 cables.
USB Flash Drive Included
Users can simply plug in the USB drive to install the driver and start using it without any complicated procedures.
Specification
Model: WL-NWP003
Chipset: RTL8126
Extend Port: 1* RJ45 Ethernet port
Item Weight: 43g/1.5oz
LED: 1 x Link(Green), 1 x Ethernet (Yellow)
Operating System : Windows 11/10, Linux
Product Dimensions: 120*70*55mm/4.7*2.8*2.2inches
PCIe Ethernet Card: Supports 10/100/1000Mbps/2.5Gbps/5Gbps speed
Compatible for X1,X4,X8,X16, both a standard and low-profile bracket are provided
Warm Tips:
☺The PCIe interface compatible with PCI-E slots only, not for PCI slots.
☺We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.
Package Includes
1 x 5Gbps PCIe Network Card
1 x Low-Profile Bracket
1 x USB Flash Drive
2 x Screws
1 x Quick Start Guide
10G Base-T PCIe Network Card
WAVLINK 10G Base-T PCIe Network Card, 10000/5000/2500Mbps PCI Express Ethernet Adapter with AQC113 Controller, 10G NIC for Windows 11/10 & Linux with Low Profile Bracket
⭐10G High-Speed Transmission: This 10G network card ushers in a new era of network transmission speed, offering speeds up to 10 times faster than traditional gigabit rates. It provides an exceptional online experience, ensuring swift file transfers, seamless HD video streaming, and lag-free online gaming.
⭐PCIe to 10G RJ45: It accommodates various PCI Express slot configurations, such as x1, x4, x8, and x16, enabling seamless installation and interchangeability across different motherboards to meet diverse hardware layouts and needs. Note: Compatible with PCI-E slots only, not for PCI slots.
⭐Seamless OS Compatibility: Whether you're utilizing the newest Windows 11 or 10, or even Linux operating systems, this network card guarantees seamless compatibility. This eradicates worries about system compatibility and grants you the complete convenience of high-speed networking.
⭐Flexible Bracket Versatility: Engineered with low-profile and standard bracket, this 10G network card provides heightened flexibility for diverse computer arrangements. Irrespective of your computer's specifications, effortless installation is ensured, optimizing your hardware setup.
⭐Robust Metal Shielding: Minimizes electromagnetic interference, enhancing stability and reliability with every connection. (Tip: Please remove the plastic film from the PCI-e interface before connecting to the PC's PCI-e slot.) Excellent heat dissipation can reduce the temperature quickly and maintain the stability of network transmission.""
Features
- One RJ45 Ethernet port delivers 10X-faster data-transfer speeds for bandwidth-demanding tasks.
- One PCle 3.0×4 is designed to work seamlessly with PCIe×4/×8/×16 interfaces, ensuring a perfect fit for your system.
- Built-in QoS technology intelligently prioritizes bandwidth for game packets, ensuring a smooth and lag-free gaming experience.
- Support for Jumbo Frames up to 16KB enhancing the card's capability to handle large data transfers.
- Available in both Low-Profile and Full-Height Brackets, making it suitable for mini and standard tower PCs.
- Fully compatible with Windows 10 and Windows 11 (64-bit) as well as Linux 3.10 and higher.
Specification
Model: WL-NWP004
Chipset: AQC113C-B
Extend Port: 1* RJ45 Ethernet port
Item Weight: 74g/2.6oz
LED: 1 x Link(Green), 1 x Ethernet (Yellow)
Operating System : Windows 11/10, Linux 3.10 and higher
Product Dimensions: 120*94*58mm/4.7*3.7*2.3inches
PCIe Ethernet Card: Supports 10/100/1000Mbps/2.5Gbps/5Gbps/10Gbps speed
Compatible for X4,X8,X16, both a standard and low-profile bracket are provided
Warm Tips:
☺The PCIe interface compatible with PCI-E slots only, not for PCI slots.
Package Includes
1 x 10Gbps PCIe Network Card
1 x Low-Profile Bracket
1 x USB Flash Drive
2 x Screws
1 x Quick Start Guide
1 x CD-Shaped Card for Driver Download Links
1 x Safety Information
1G Base-T PCIe Network Card
WAVLINK 1G Base-T PCIe Network Card, 1000/100/10Mbps PCI Express Ethernet Adapter with RTL8111H, 1G NIC for Windows 11/10/8/8.1/7/XP/Vista & Linux with Low Profile Bracket
⭐1G High-Speed Transmission: This 1G network card ushers in a new era of network transmission speed, offering speeds up to 10 times faster than traditional 100Mbps rates. It provides an exceptional online experience, ensuring swift file transfers, seamless HD video streaming, and lag-free online gaming.
⭐PCIe to 1G RJ45: It accommodates various PCI Express slot configurations, such as x1, x4, x8, and x16, enabling seamless installation and interchangeability across different motherboards to meet diverse hardware layouts and needs. Note: Compatible with PCI-E slots only, not for PCI slots.
⭐Seamless OS Compatibility: Whether you're utilizing the newest Windows 11 or earlier editions such as Windows 10, 8.1, 8, 7, XP, Vista or even Linux operating systems, this network card guarantees seamless compatibility. This eradicates worries about system compatibility and grants you the complete convenience of high-speed networking.
⭐Flexible Bracket Versatility: Engineered with low-profile and standard bracket, this 1G network card provides heightened flexibility for diverse computer arrangements. Irrespective of your computer's specifications, effortless installation is ensured, optimizing your hardware setup.
⭐Robust Metal Shielding: Minimizes electromagnetic interference, enhancing stability and reliability with every connection. (Tip: Please remove the plastic film from the PCI-e interface before connecting to the PC's PCI-e slot.) Excellent heat dissipation can reduce the temperature quickly and maintain the stability of network transmission.
Excellent Heat Sink
Organ cooler design for fast heat dissipation and stable network card performance.
RTL8111H Chipset
It enhances data transfer speeds, supports various data rates, and provides stable and reliable network transmissions.
Seamless Upgrade, No Cable Changes
This card works with CAT5E cables, eliminating the requirement for expensive CAT6 cables.
Thickened Golden Finger
Thickened golden finger, good conductivity, strong antioxidant, faster and more stable.
Features
- 1Gbps PCle Ethernet controller supports up to 1000Mbps speed and compatible with 100/10Mbps Network Standard.
- Support Wake On LAN(SI/S3/S5), PXE Boot and Jumbo Frame up to 9KB.
- Compatible with PCIE x1/x2/x4/x8/x16 interface.
- Support low-profile and full-height brackets for mini and standard tower PC.
- Fully compatible with Windows 11/10/8.1/8/7/XP/Vista, Linux.
Specification
Model: WL-NWP001
Chipset: RTL8111H
Extend Port: 1* RJ45 Ethernet port
Item Weight: 43g/1.5oz
LED: 1 x Link(Green), 1 x Ethernet (Yellow)
Operating System : Windows 11/10/8/8.1/7/XP/Vista, Linux
Product Dimensions: 120*70*55mm/4.7*2.8*2.2inches
PCIe Ethernet Card: Supports 10/100/1000Mbps speed
Compatible for X1,X4,X8,X16, both a standard and low-profile bracket are provided
Warm Tips:
☺The PCIe interface compatible with PCI-E slots only, not for PCI slots.
☺We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.
Package Includes
1 x 1Gbps PCIe Network Card
1 x Low-Profile Bracket
2 x Screws
1 x Quick Start Guide
2.5G Base-T PCIe Network CardWAVLINK 2.5G Base-T PCIe Network Card, 2500/1000/100Mbps PCI Express Ethernet Adapter with RTL8125B, 2.5G NIC for Windows 11/10/8/8.1/7 & Linux with Low Profile Bracket⭐2.5G High-Speed Transmission: This 2.5G network card ushers in a new era of network transmission speed, offering speeds up to 2.5 times faster than traditional gigabit rates. It provides an exceptional online experience, ensuring swift file transfers, seamless HD video streaming, and lag-free online gaming.
⭐PCIe to 2.5G RJ45: It accommodates various PCI Express slot configurations, such as x1, x4, x8, and x16, enabling seamless installation and interchangeability across different motherboards to meet diverse hardware layouts and needs. Note: Compatible with PCI-E slots only, not for PCI slots.
⭐Seamless OS Compatibility: Whether you're utilizing the newest Windows 11 or earlier editions such as Windows 10, 8.1, 8, 7, or even Linux operating systems, this network card guarantees seamless compatibility. This eradicates worries about system compatibility and grants you the complete convenience of high-speed networking.
⭐Flexible Bracket Versatility: Engineered with low-profile and standard bracket, this 2.5G network card provides heightened flexibility for diverse computer arrangements. Irrespective of your computer's specifications, effortless installation is ensured, optimizing your hardware setup.
⭐Robust Metal Shielding: Minimizes electromagnetic interference, enhancing stability and reliability with every connection. (Tip: Please remove the plastic film from the PCI-e interface before connecting to the PC's PCI-e slot.) Excellent heat dissipation can reduce the temperature quickly and maintain the stability of network transmission.
Excellent Heat Sink
Organ cooler design for fast heat dissipation and stable network card performance.
RTL8125B Chipset
It enhances data transfer speeds, supports various data rates, and provides stable and reliable network transmissions.
Seamless Upgrade, No Cable Changes
This card works with CAT5E cables, eliminating the requirement for expensive CAT6 cables.
QoS Support
Quality of Service technology delivers prioritized performance for gamers and ensures to avoid network congestion for PC gaming.
Specification
Model: WL-NWP002
Chipset: RTL8125B
Extend Port: 1* RJ45 Ethernet port
Item Weight: 43g/1.5oz
LED: 1 x Link(Green), 1 x Ethernet (Yellow)
Operating System : Windows 11/10/8/8.1/7, Linux
Product Dimensions: 120*70*55mm/4.7*2.8*2.2inches
PCIe Ethernet Card: Supports 10/100/1000Mbps/2.5Gbps speed
Compatible for X1,X4,X8,X16, both a standard and low-profile bracket are provided
Warm Tips:
☺The PCIe interface compatible with PCI-E slots only, not for PCI slots.
☺We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.
Package Includes
1 x 2.5Gbps PCIe Network Card
1 x Low-Profile Bracket
2 x Screws
1 x Quick Start Guide
WAVLINKRegarding returns, if you are not satisfied with our product or if the product is not working properly and you need our assistance, please contact us promptly. We will help you resolve the problem you encounter. Fast Shipping | Warranty
