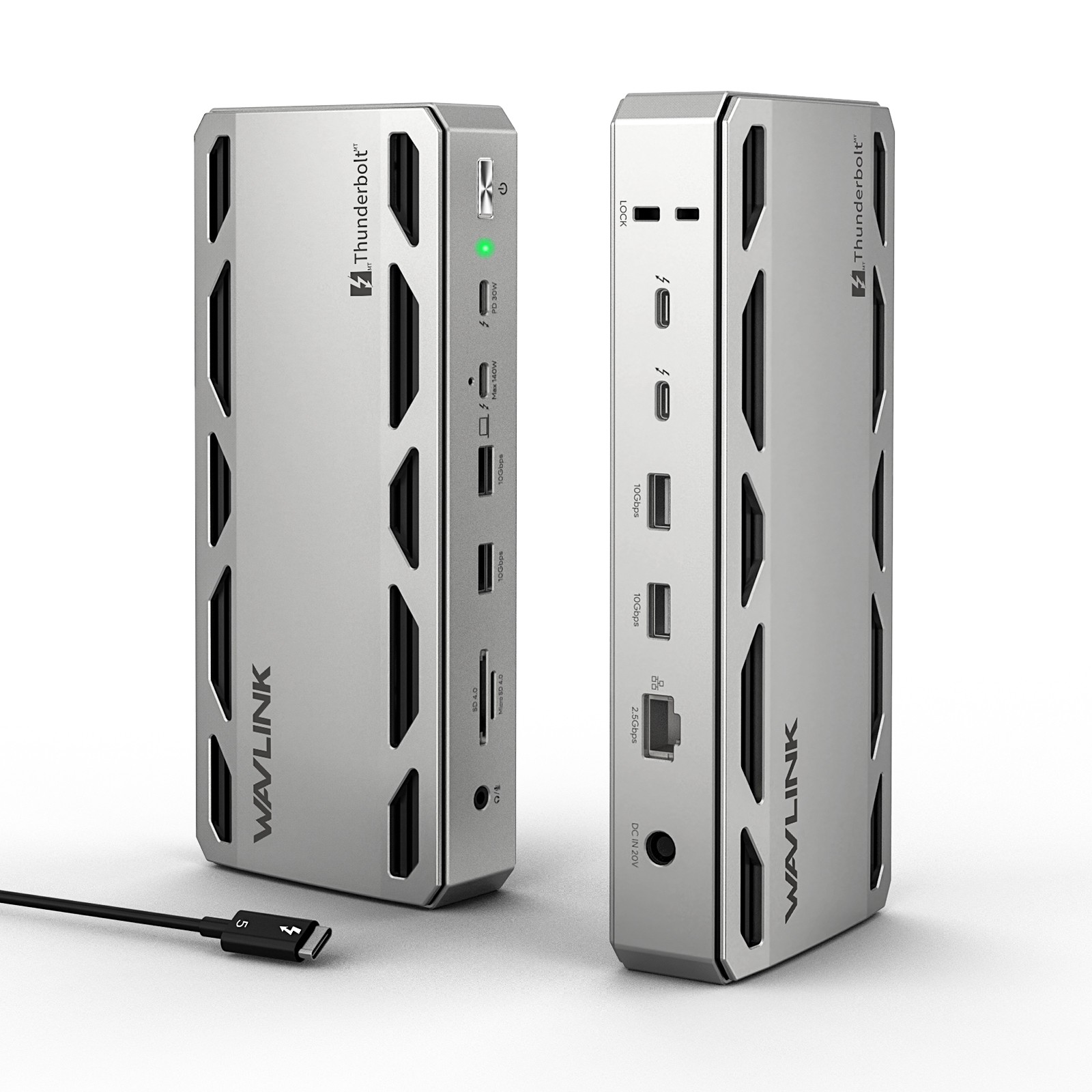

⚡ Intel® Certified · Thunderbolt™ 512-in-1 Thunderbolt™ 5 Docking Station120Gbps · 140W PD · Dual 8K@60Hz · Triple 4K@144Hz · 2.5G Ethernet3× Thunderbolt 5 downstream ports, 4× USB-A 10Gbps, UHS-II SD 4.0 card reader and 140W instant charging — engineered for Mac & Windows Thunderbolt 5/4, USB4 and USB-C laptops.⚡ 120Gbps Boost🔋 140W PD🖥 Dual 8K / Triple 4K🌐 2.5G Ethernet💾 SD 4.0 312MB/s120GbpsBandwidth Boost140WInstant Charging8K@144HzSingle Display10GbpsUSB-A × 4312MB/sSD 4.0 ReaderFeaturesIntel® Certified. Next-Gen Performance.A true 12-in-1 workstation built around Thunderbolt™ 5 — the fastest, most versatile single-cable connection available.01 Thunderbolt™ 5 Upstream — 80Gbps Data / 120Gbps Video 1× Thunderbolt™ 5 UFP delivers 80Gbps data, 120Gbps video bandwidth and 140W instant charging for your USB-C laptop through a single cable.02 3× Thunderbolt™ 5 Downstream Ports Three Thunderbolt™ 5 DFP ports provide 80Gbps data and support dual 8K@60Hz or triple 4K@144Hz at 120Gbps bandwidth. One port supports 30W instant charging for downstream devices.03 4× USB-A 10Gbps + 2.5G Ethernet Four USB-A ports deliver up to 10Gbps transfer and stay compatible with USB 3.0 / 2.0. An RJ45 Ethernet port provides efficient transfer, low-latency gaming and a stable wired network.04 UHS-II SD 4.0 Card Reader & 3.5mm Audio The UHS-II SD / Micro SD card reader transfers high-definition video and vivid images at up to 312MB/s and is backward compatible with UHS-I devices. A combo 3.5mm mic / headphone jack keeps audio crisp in and out.05 Premium Aluminum, Compact Footprint Aluminum alloy chassis at 21.9 × 9.7 × 3.5 cm and just 610 g, with a 100 cm USB-C to USB-C Thunderbolt™ 5 cable (80/120Gbps) included. Rear security lock slot keeps the dock secure in shared workspaces.Port Layout12 Ports — Front & Rear▶ Front Panel 1 × Combo Audio Jack (3.5mm)
1 × SD / Micro SD Card Reader (UHS-II, SD 4.0)
2 × USB-A (10Gbps)
1 × TBT 5 UFP (Host, Max. 140W, Video)
1 × TBT 5 DFP (80Gbps, Video, PD 30W) ◀ Rear Panel 2 × TBT 5 DFP (80Gbps, Video, Charging)
2 × USB-A (10Gbps)
1 × RJ45 Ethernet
1 × DC IN (20V)
1 × Security Lock Slot Before You BuyCheck Your Laptop’s USB-C PortConfirm that your Type-C port supports video output and charging to unlock every feature of this dock.1 Check the model of your laptop — it should be on the back label. 2 Search “brand + model number + manual” in Google — e.g. “asus ux435 manual”. 3 In the manual, look at the Type-C specification:
• States Power Delivery → supports charging
• States Display / DP Alt Mode → supports video output
• Lists bandwidth only → may not support video or charging
• Unsure? Contact the laptop manufacturer to confirm. Max ResolutionMultiple Display CapabilityMake sure your host’s Type-C port supports video output. Actual results depend on your port standard and DSC support.Windows 11 or HigherModeThunderbolt 5Thunderbolt 4 / USB4USB-C Alt ModeThunderbolt 3Single DisplayUp to 8K@144HzUp to 8K@60HzUp to 4K@60HzNot supportedDual DisplayUp to 8K@60HzUp to 6K@60HzNot supportedNot supportedTriple DisplayUp to 4K@144HzNot supportedNot supportedNot supportedmacOS 14.6 or LaterMac ChipSingle DisplayDual DisplayTriple DisplayM4 Base / Pro / MaxUp to 8K@60HzUp to 6K@60HzNot supportedM1 / M2 / M3 Pro & MaxUp to 6K@60HzUp to 6K@60HzNot supportedM3 BaseUp to 6K@60HzNot supportedNot supportedM1 / M2 BaseUp to 4K@60HzNot supportedNot supportedmacOS does not support triple external displays through this dock. Supported display count and resolution / refresh rate depend on the Mac chip model.SpecificationTechnical DetailsModelWL-UTD58-AFront Ports1× Combo Audio Jack · SD / Micro SD Card Reader (UHS-II, SD 4.0) · 2× USB-A (10Gbps) · 1× TBT 5 UFP (Host, Max. 140W, Video) · 1× TBT 5 DFP (80Gbps, Video, PD 30W)Rear Ports1× Security Lock · 2× TBT 5 DFP (80Gbps, Video, Charging) · 2× USB-A (10Gbps) · 1× RJ45 Ethernet · 1× DC IN (20V)Unit Size (L×W×H)21.9 × 9.7 × 3.5 cm / 8.62 × 3.82 × 1.38 inCable LengthUSB-C to C / HDMI: 100 cm / 39.4 inUnit Weight610 g / 21.4 ozMaterialAluminum AlloyIn the BoxWhat You’ll Receive✓1 × Thunderbolt™ 5 Multifunctional Docking Station ✓1 × 1m USB-C to USB-C Thunderbolt™ 5 Cable (80/120Gbps) ✓1 × 20V Power Adapter ✓1 × Screwdriver ✓1 × Quick Start Guide Warm TipsBefore You Buy01Please ensure your laptop’s USB-C port supports video output (DisplayPort Alt Mode) and charging (Power Delivery) to fully utilize all features of this hub.02Triple external displays: support for three external displays is potentially available only when connected to a laptop featuring a Thunderbolt 5 port and running Windows 11 or later. Actual support depends on the specific laptop’s specifications.03macOS limitation: macOS systems do not support triple external displays through this dock. The number and resolution / refresh rate of supported external displays depend on the specific Mac chip model. Please refer to the compatibility list above.04High resolution / high refresh rate: achieving 6K/8K resolutions and refresh rates above 60Hz typically requires both your laptop (GPU) and external monitor(s) to support DSC (Display Stream Compression).05Accessories: USB-C to HDMI/DP cables and the security lock are not included and must be purchased separately.Instructions About the Monitor(s)01Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC support is required for 6K and 8K resolutions.02Higher refresh rates (above 60Hz) may require DSC support on the monitors and host GPU. The bit / color depth may vary in order to support higher refresh rates.03Some M3 MacBooks, such as the MacBook Air, can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).04Currently M1/M2/M3/M4 Macs can only support up to HDMI 2.0b over their Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh rate is required, please use a USB-C to USB-C, USB-C to DisplayPort, or DisplayPort to DisplayPort connection.05Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers, please refer to the manufacturer’s website.WAVLINKINTEL® CERTIFIED · THUNDERBOLT™ 5 · 12-IN-1 DOCK · MODEL WL-UTD58-A
